PISTON KIT 95-97 KX125 54.50, WOSSNER 8112D050 KAWASAKI MX

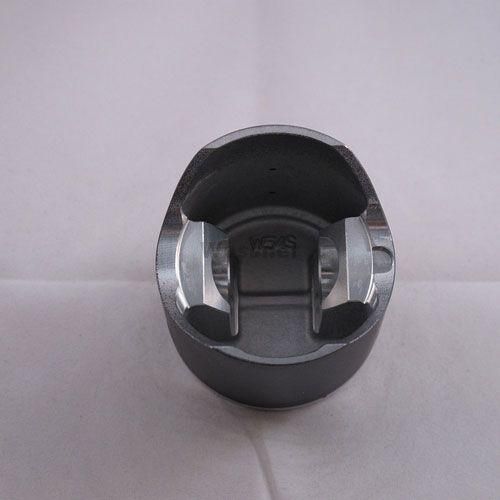

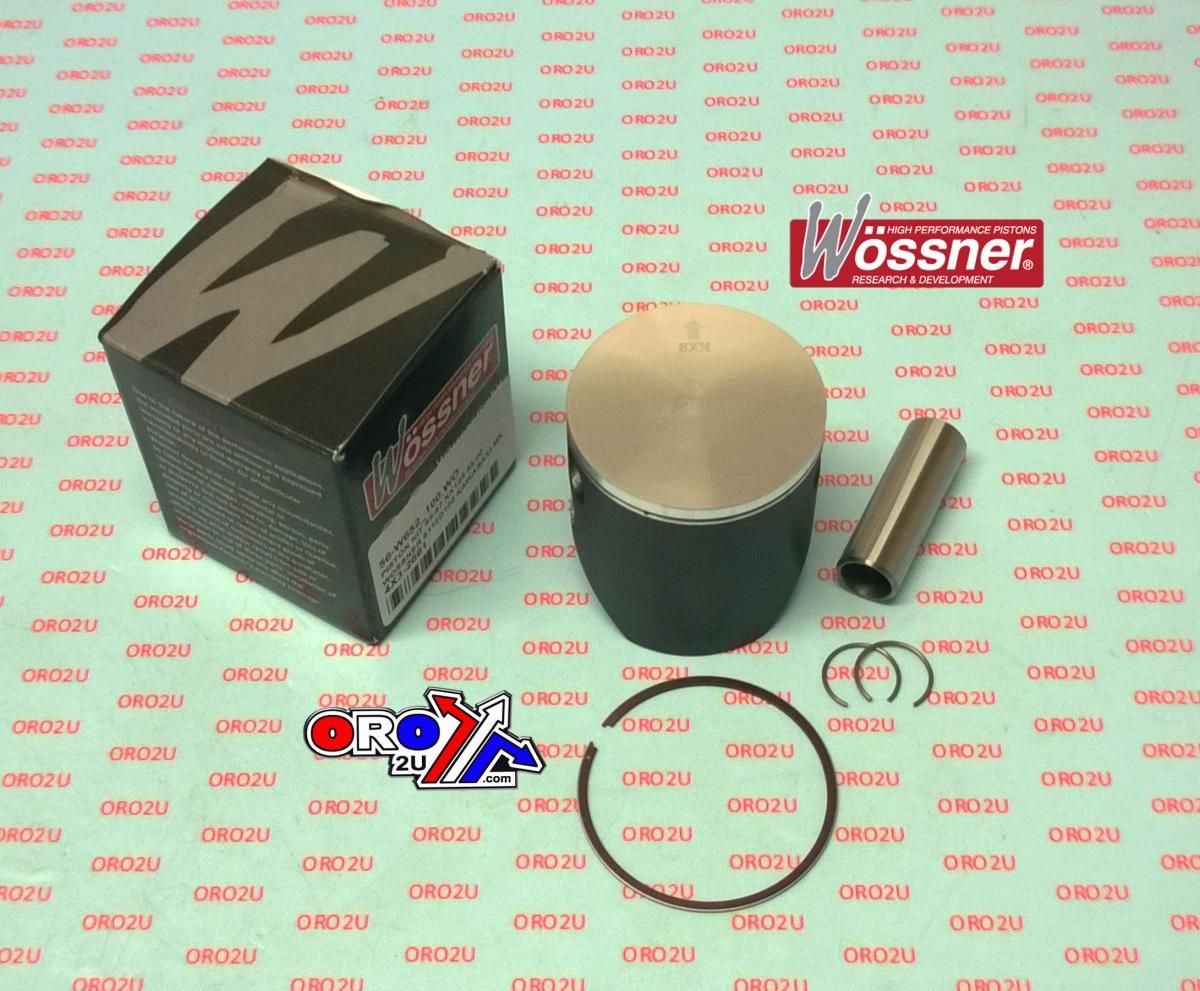

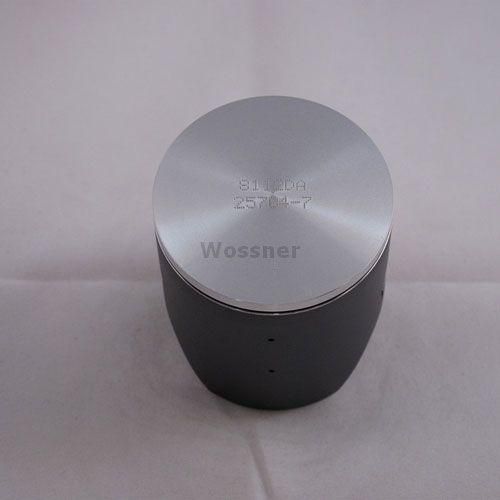

The Wossner 8112D050 forged piston kit, with a 54.50mm bore (+0.50mm oversize), is developed for Kawasaki KX125 models from 1995 to 1997. This piston is engineered to withstand the stresses of high-performance 2-stroke operation. Its elliptical design accommodates thermal expansion uniformly, ensuring consistent surface contact and minimising the risk of piston collapse. Precision-manufactured in Germany, it ensures optimal heat transfer and durability.

Features

• High-strength forged aluminium piston for durability in performance applications

• Elliptical profile ensures even pressure distribution and reduced stress points

• Designed for effective combustion heat dissipation to cylinder walls

• German-manufactured to precise engineering standards

Specifications

• Bore Size: 54.50 mm (+0.50 mm oversize)

• Display Displacement: 125 cm³

• Stroke: 54.50 mm

• Piston Clearance: 0.06 mm

• Compression Height: 29.50 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8112D050

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5450

• Rod: 2038

• Internal Reference Part No.: 56-W652_050.WO

Vehicle Fitments

• Kawasaki KX125: 1995–1997
