PISTON KIT 94-00 KTM125 54.25, WOSSNER 8029DA FORGED 50330007000

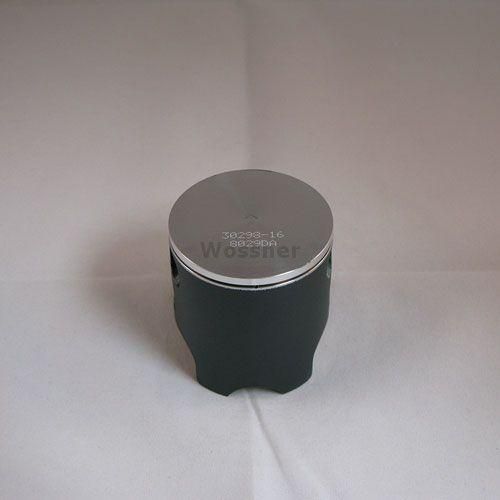

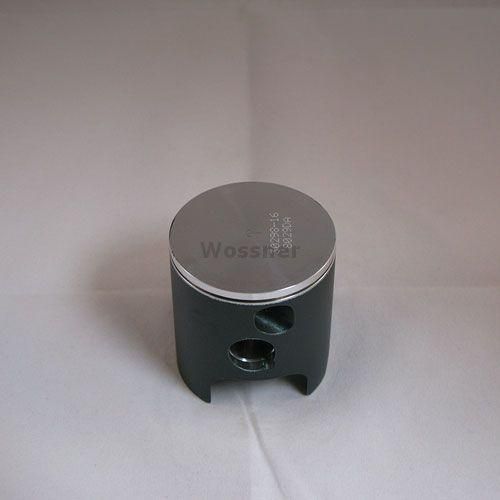

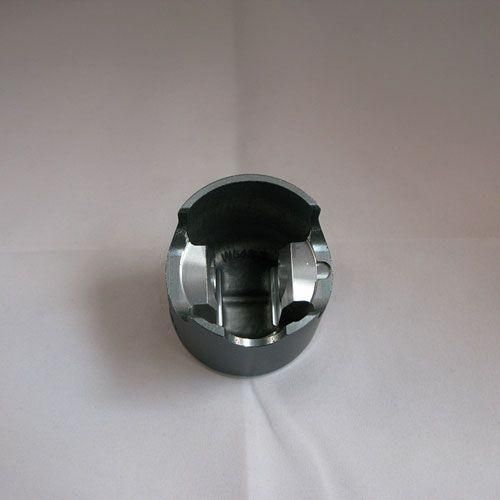

This Wossner piston kit with a 54mm bore (actual size 54.25mm) is designed for various KTM 125cc two-stroke models from 1994 to 2000. Manufactured in Germany, the forged piston delivers reliable performance and optimal heat transfer for high-demand engine conditions.

Features

• Forged piston construction ensures superior strength and longevity

• Engineered for efficient combustion heat transfer to cylinder walls

• Elliptical design promotes uniform pressure distribution and reduces risk of piston collapse

• Manufactured in Germany with high precision

Specifications

• Bore size: 54.00 mm

• Actual piston size: 54.25 mm

• Display (cm³): 125

• Stroke (mm): 54.10

• Clearance (mm): 0.06

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height (mm): 28.00

Cross-Reference OEM Part Numbers

• 50330007000

• 09104750

• 740M05425

Vehicle Fitments

• 1994 KTM 125 EGS

• 1994 KTM 125 GS

• 1994 KTM 125 SX

• 1994 KTM EXC 125

• 1995 KTM 125 EGS

• 1995 KTM 125 GS

• 1995 KTM 125 SX

• 1995 KTM EXC 125

• 1996 KTM 125 EGS

• 1996 KTM 125 GS

• 1996 KTM 125 SX

• 1996 KTM EXC 125

• 1997 KTM 125 EGS

• 1997 KTM 125 GS

• 1997 KTM 125 SX

• 1997 KTM EXC 125

• 1998 KTM SX125

• 1998 KTM EXC125

• 1999 KTM SX125

• 1999 KTM EXC125

• 2000 KTM SX125

• 2000 KTM EXC125

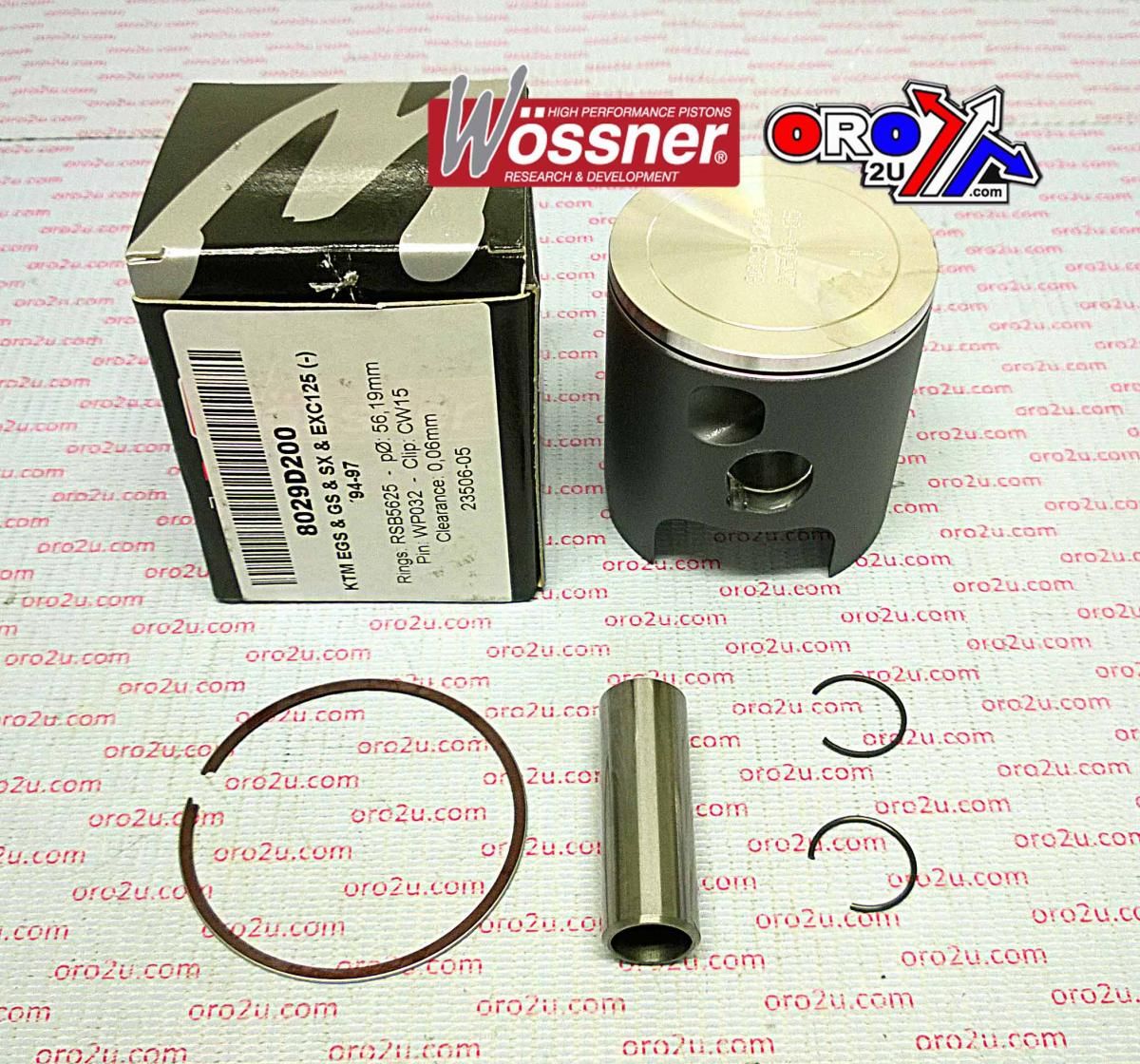

Included Components

• Piston: Wossner PN# 8029DA

• Lock: PN# CW15

• Pin: PN# WP032

• Ring Set: PN# RSB5425

• Rod: PN# P2011
