| Size | 67.50mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 67.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT 92-98 WR200 67.50, WOSSNER 8070D150 YAMAHA DIRT

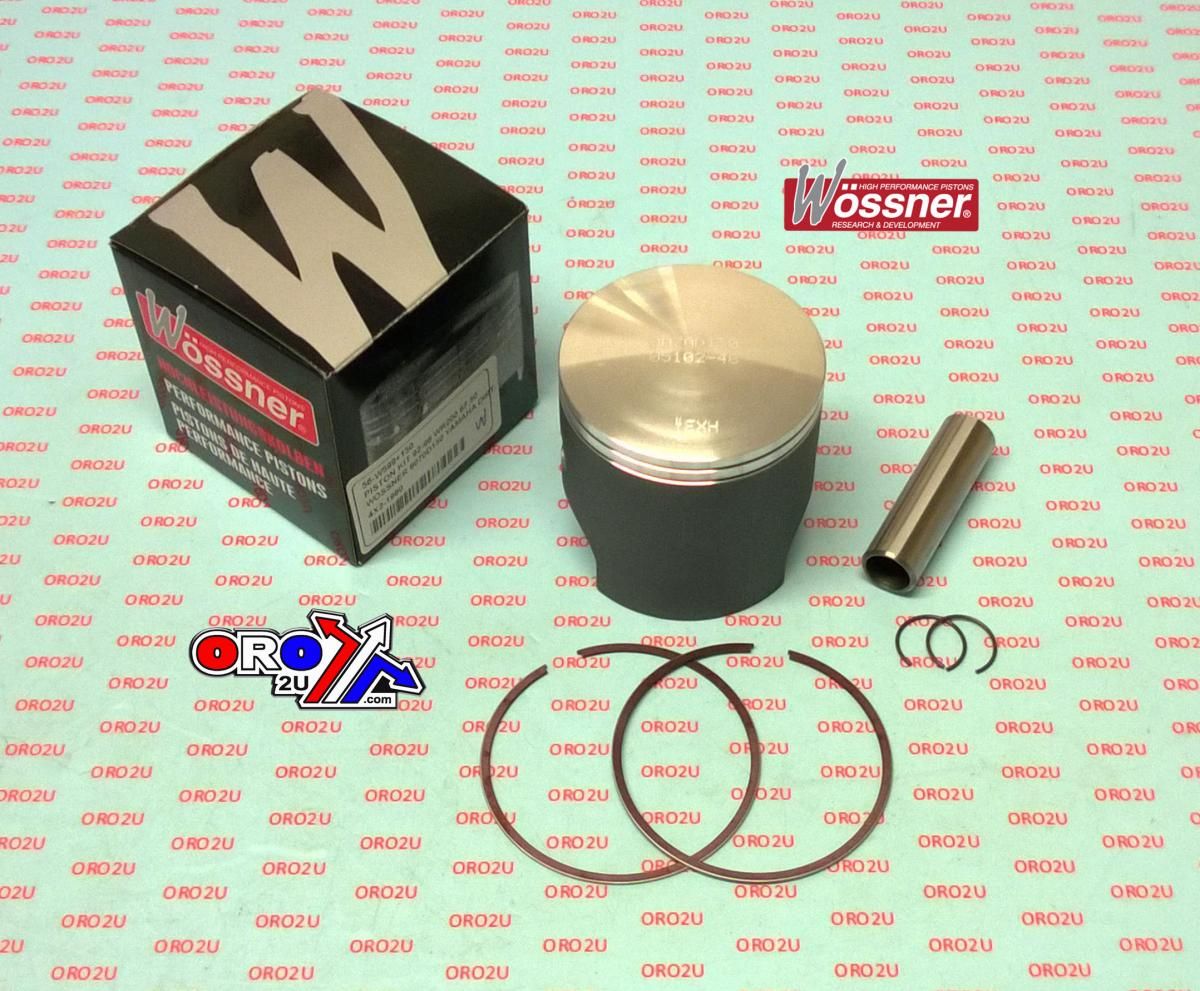

Wossner Forged Piston Kit 67.50mm Bore – Yamaha DT200R / WR200
This Wossner forged piston kit is intended for Yamaha DT200R (1988–1991) and WR200 (1992–1998) models, offering a 67.50 mm bore and 67.44 mm piston diameter (+1.50 mm oversize). Designed for high-performance 2-stroke applications, the piston is forged for enhanced durability and features an elliptical profile for optimal load distribution during thermal expansion. German-made for precision and consistency.
Features
-
Forged construction for increased strength and reliability
-
Enhanced heat transfer from combustion chamber to cylinder walls
-
Elliptical design ensures even pressure distribution and reduces piston stress
-
Manufactured in Germany
Specifications
-
Bore Size: 67.50 mm
-
Piston Diameter: 67.44 mm
-
Engine Displacement: 195 cm³
-
Stroke: 57.00 mm
-
Clearance: 0.06 mm
-
Compression Height: 29.90 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8070D150
-
Lock: CW16
-
Pin: WP027
-
Ring Set: RSB6750 x 2
Vehicle Fitments
-
Yamaha DT200R (1988–1991)
-
Yamaha WR200 (1992–1998)
