PISTON KIT 92-98 HSV 250 67.00, HUSQVARNA WOSSNER 8015DA

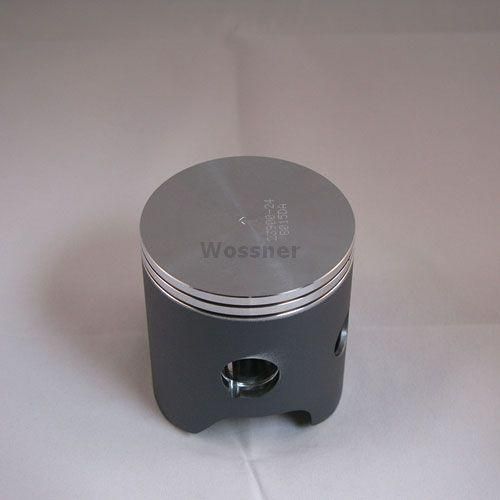

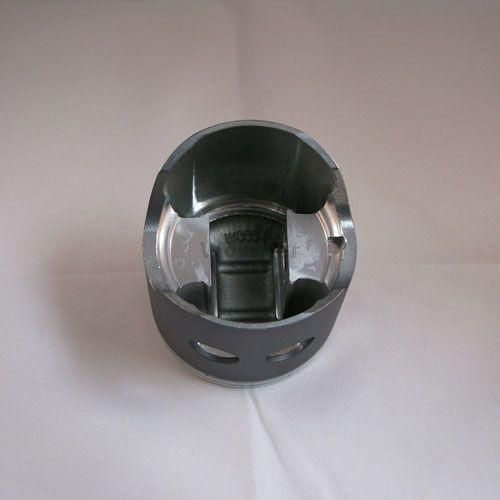

This Wossner forged piston kit is engineered for Husqvarna CR250 and WR250 models from 1992 to 1998, featuring a 67.00mm standard bore. Manufactured in Germany, it combines high-strength forging with an elliptical profile that allows uniform expansion under thermal stress. This helps prevent localised pressure build-up and piston collapse. Designed for efficient heat dissipation from the combustion chamber to the cylinder wall, it supports consistent performance in two-stroke engines.

Features

• Forged piston ensures high durability and mechanical reliability

• Elliptical shape distributes thermal load evenly

• Minimises localised stress to reduce risk of piston failure

• Enhances heat transfer from combustion chamber to cylinder wall

• German precision manufacturing

Specifications

• Bore Size: 67.00mm (Standard)

• Actual Diameter: 66.94mm

• Compression Height: 35.00mm

• Stroke: 70.80mm

• Displacement: 249 cm³

• Piston Clearance: 0.06mm

• Compression Ratio: 2-stroke (Wossner and OEM)

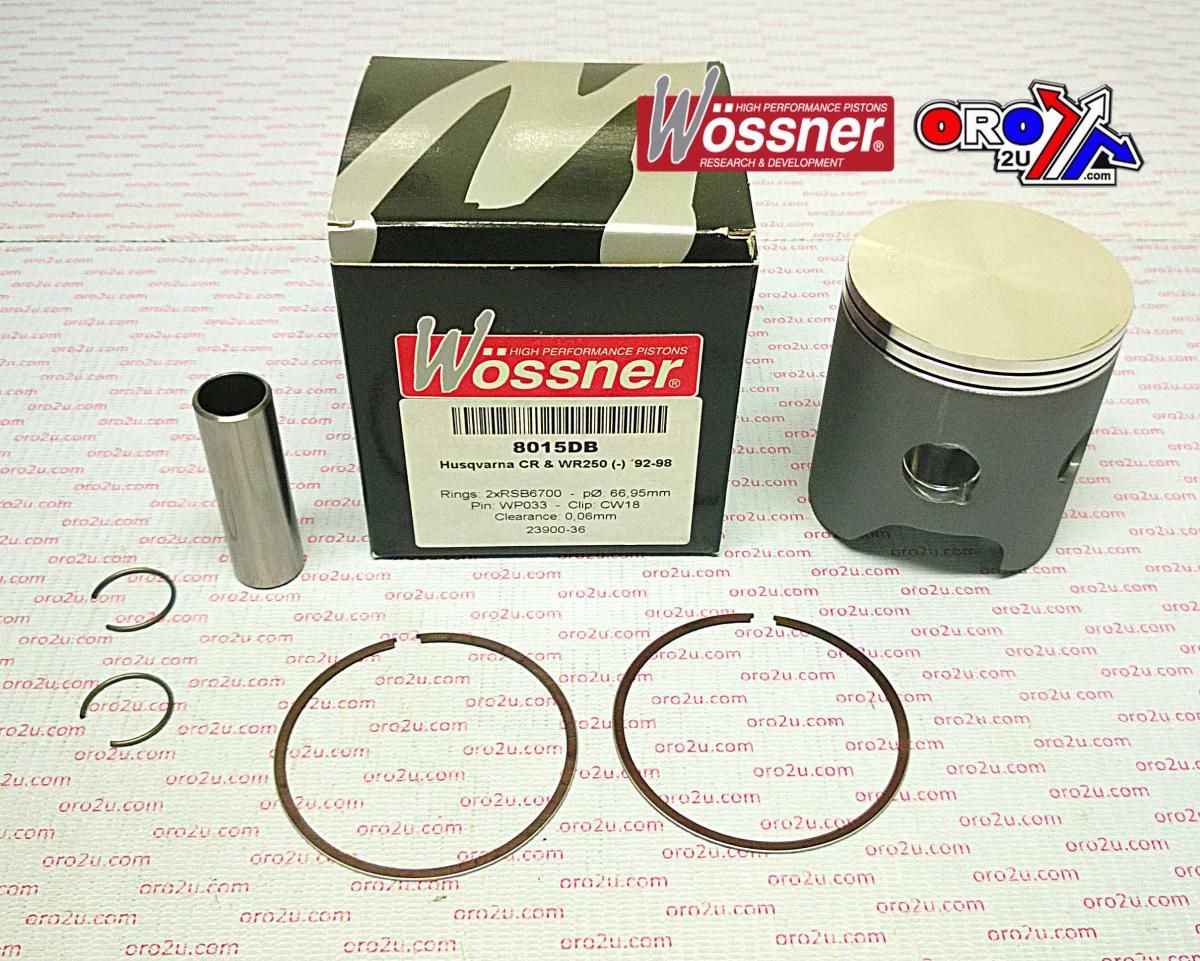

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8015DA

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6700 x2

• Cross Reference: 699M06700

Vehicle Fitments

• 1992–1998 Husqvarna CR250

• 1992–1998 Husqvarna WR250
