PISTON KIT 92-01 KX250 68.00, WOSSNER 8026D160 KAWASAKI MX

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001. With a bore size of 68.00 mm and a piston diameter of 67.94 mm (+1.60 mm oversize), it is suited for significantly overbored or re-sleeved engines. Forged in Germany, the piston provides outstanding durability and performance. The elliptical design ensures a more uniform bearing surface, effectively managing heat expansion and evenly distributing thrust loads to minimize wear and reduce the risk of piston failure.

Features

• Forged construction for maximum strength and thermal resilience

• Elliptical design evenly distributes load and reduces localised pressure

• Efficient combustion chamber heat transfer

• Manufactured in Germany for precision and reliability

Specifications

• Bore Size: 68.00 mm

• Piston Diameter: 67.94 mm

• Engine Displacement: 249 cm³

• Stroke: 72.00 mm

• Clearance: 0.06 mm

• Compression Height: 38.00 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

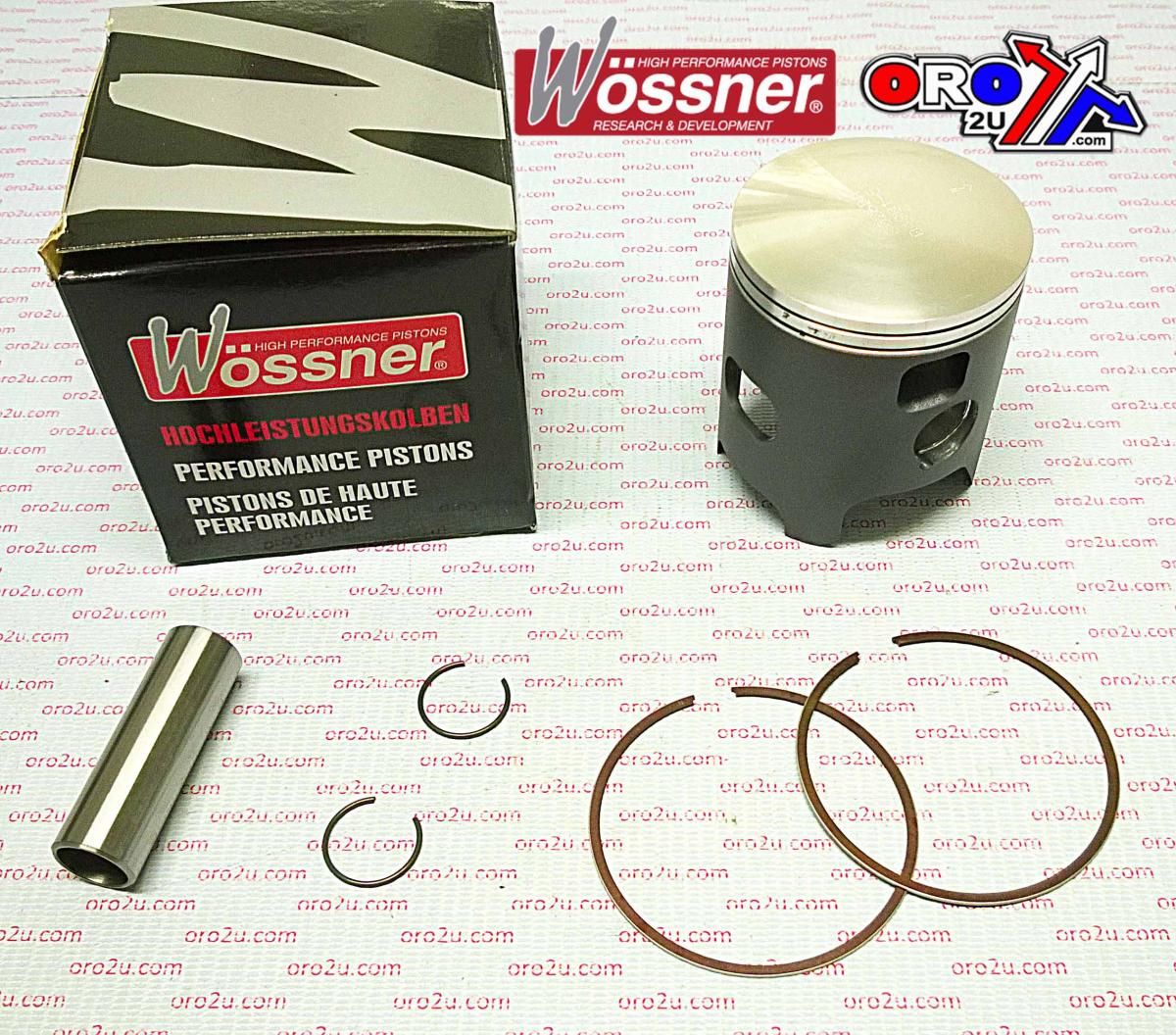

• Piston Kit: 8026D160

• Lock: CW18

• Pin: WP033

• Ring Set: RSB6800 x 2

Vehicle Fitments

• 1992 Kawasaki KX250

• 1993 Kawasaki KX250

• 1994 Kawasaki KX250

• 1995 Kawasaki KX250

• 1996 Kawasaki KX250

• 1997 Kawasaki KX250

• 1998 Kawasaki KX250

• 1999 Kawasaki KX250

• 2000 Kawasaki KX250

• 2001 Kawasaki KX250
