| Size | 66.40 mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 66.40 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

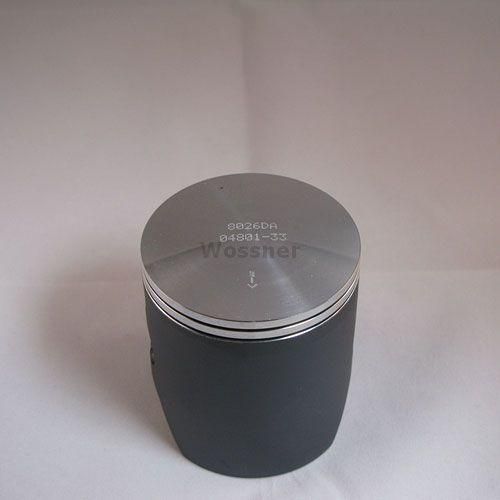

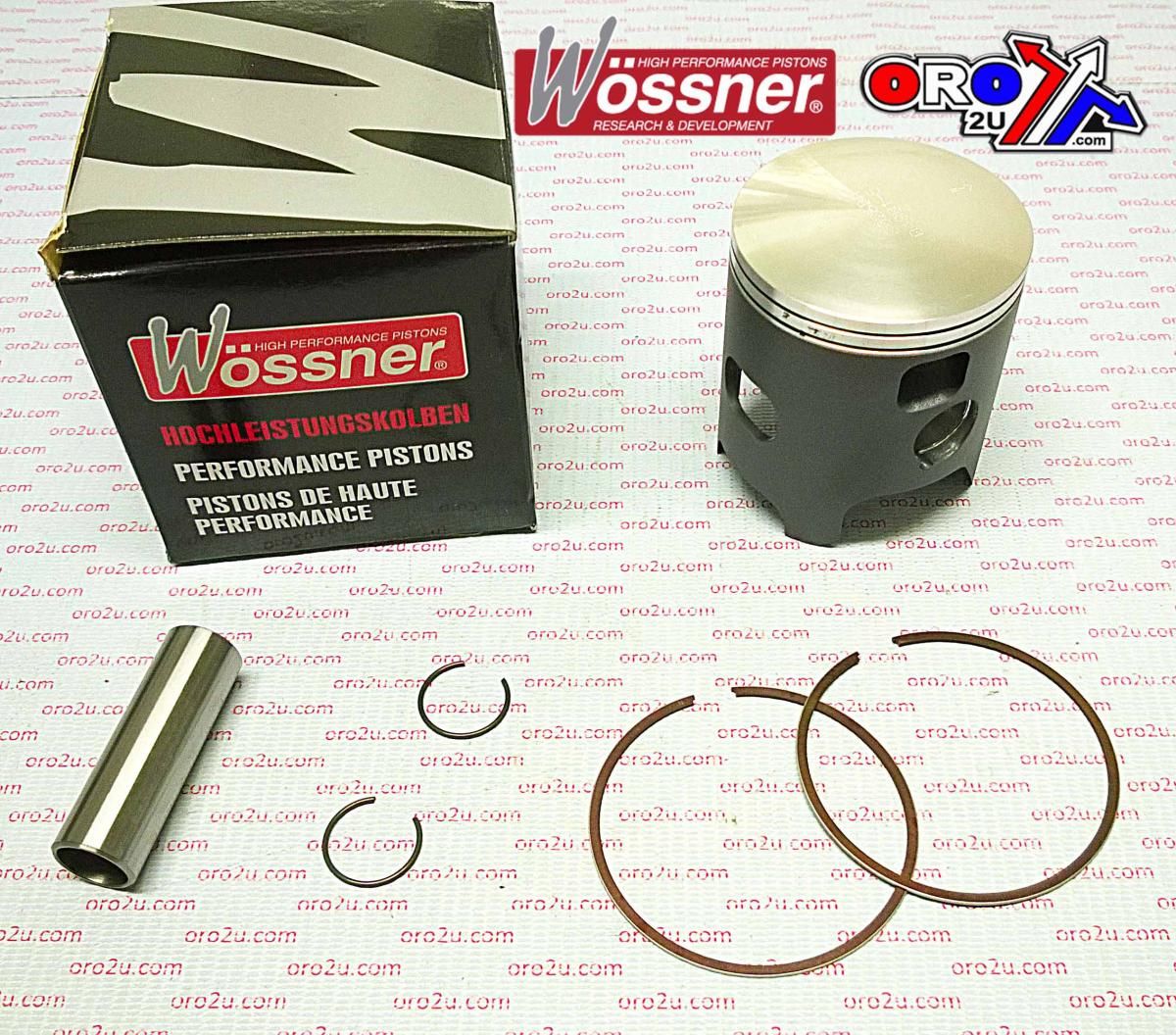

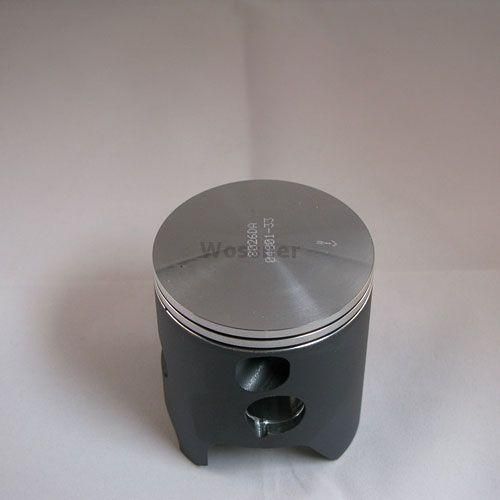

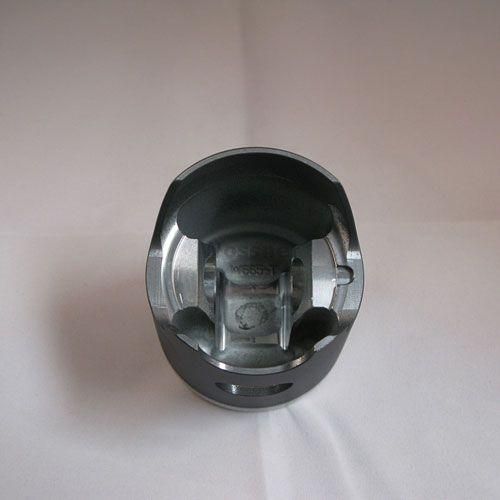

PISTON KIT 92-01 KX250 66.40 A, WOSSNER 8026DA KAWASAKI MX 13001-1373
Wossner Forged Piston Kit 66.40mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is specifically designed for Kawasaki KX250 models produced from 1992 to 2001. With a standard bore of 66.40 mm and a piston diameter of 66.34 mm, it is built to provide strength, durability, and thermal efficiency for high-performance 2-stroke engines. The forged aluminium construction, combined with an elliptical design, ensures optimal heat transfer and balanced thrust load distribution under engine expansion. Precision-manufactured in Germany for consistent quality and fit.
Features
-
Forged construction for superior strength and wear resistance
-
Engineered to maximise heat dissipation from combustion chamber to cylinder walls
-
Elliptical profile distributes load evenly to reduce localised pressure and piston fatigue
-
Manufactured in Germany to high precision standards
Specifications
-
Bore Size: 66.40 mm
-
Piston Diameter: 66.34 mm
-
Engine Displacement: 249 cm³
-
Stroke: 72.00 mm
-
Clearance: 0.06 mm
-
Compression Height: 38.00 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference OEM and Equivalent Part Numbers
-
13001-1373
-
09104740
-
617M06640
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8026DA
-
Lock: CW18
-
Pin: WP033
-
Ring Set: RSB6640 x 2
Vehicle Fitments
-
1992 Kawasaki KX250
-
1993 Kawasaki KX250
-
1994 Kawasaki KX250
-
1995 Kawasaki KX250
-
1996 Kawasaki KX250
-
1997 Kawasaki KX250
-
1998 Kawasaki KX250
-
1999 Kawasaki KX250
-
2000 Kawasaki KX250
-
2001 Kawasaki KX250
