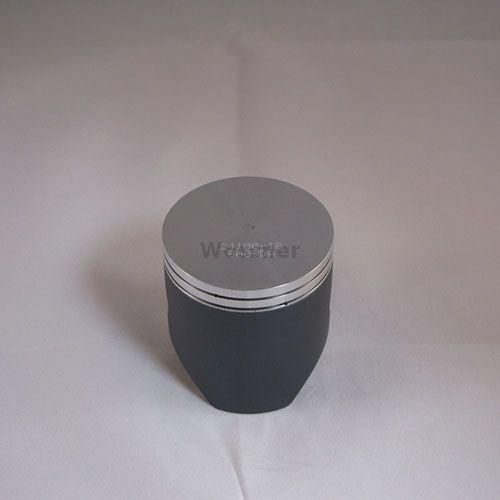

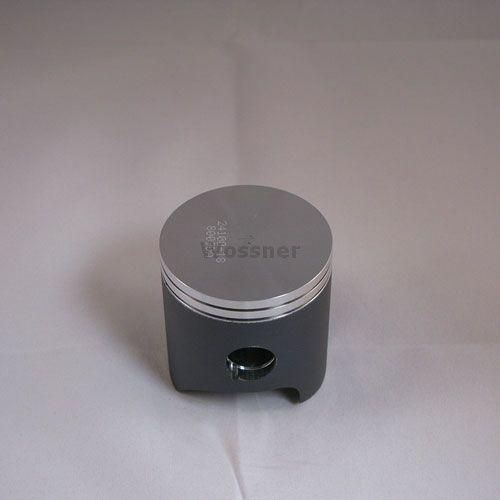

PISTON KIT 89-95 TSR125 58.00, FORGED WOSSNER 8009D200

Wossner forged piston kit with a 58.00mm bore and 57.94mm diameter, designed for Suzuki TSR125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany

Specifications

• Bore: 58.00mm
• Diameter: 57.94mm
• Display (cm³): 125
• Stroke (mm): 54.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Compression Height (mm): 28.00

Cross-Reference OEM Part Numbers

• Wossner Piston Suzuki TSR125 (PN# 8009D200)
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5800

Vehicle Fitments

• Suzuki TSR125 (1989-1995)
