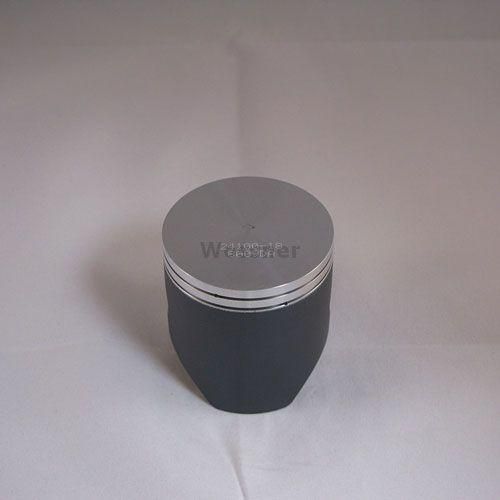

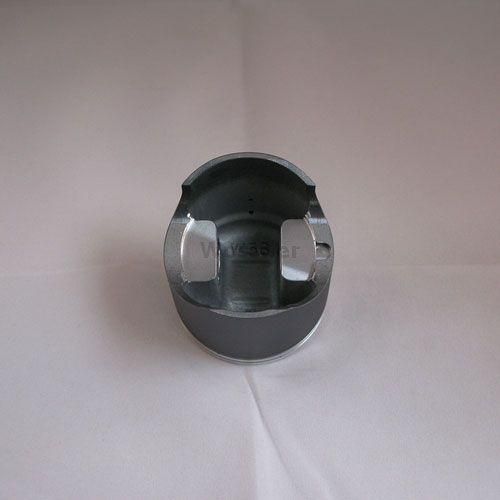

PISTON KIT 89-95 TSR125 57.50, FORGED WOSSNER 8009D150

Wossner forged piston kit with a 57.50mm bore and 57.44mm diameter, designed for Suzuki TSR125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany

Specifications

• Bore: 57.50mm
• Diameter: 57.44mm
• Display (cm³): 125
• Stroke (mm): 50.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2-Stroke
• OEM Compression Ratio: 2-Stroke
• Compression Height (mm): 28.50

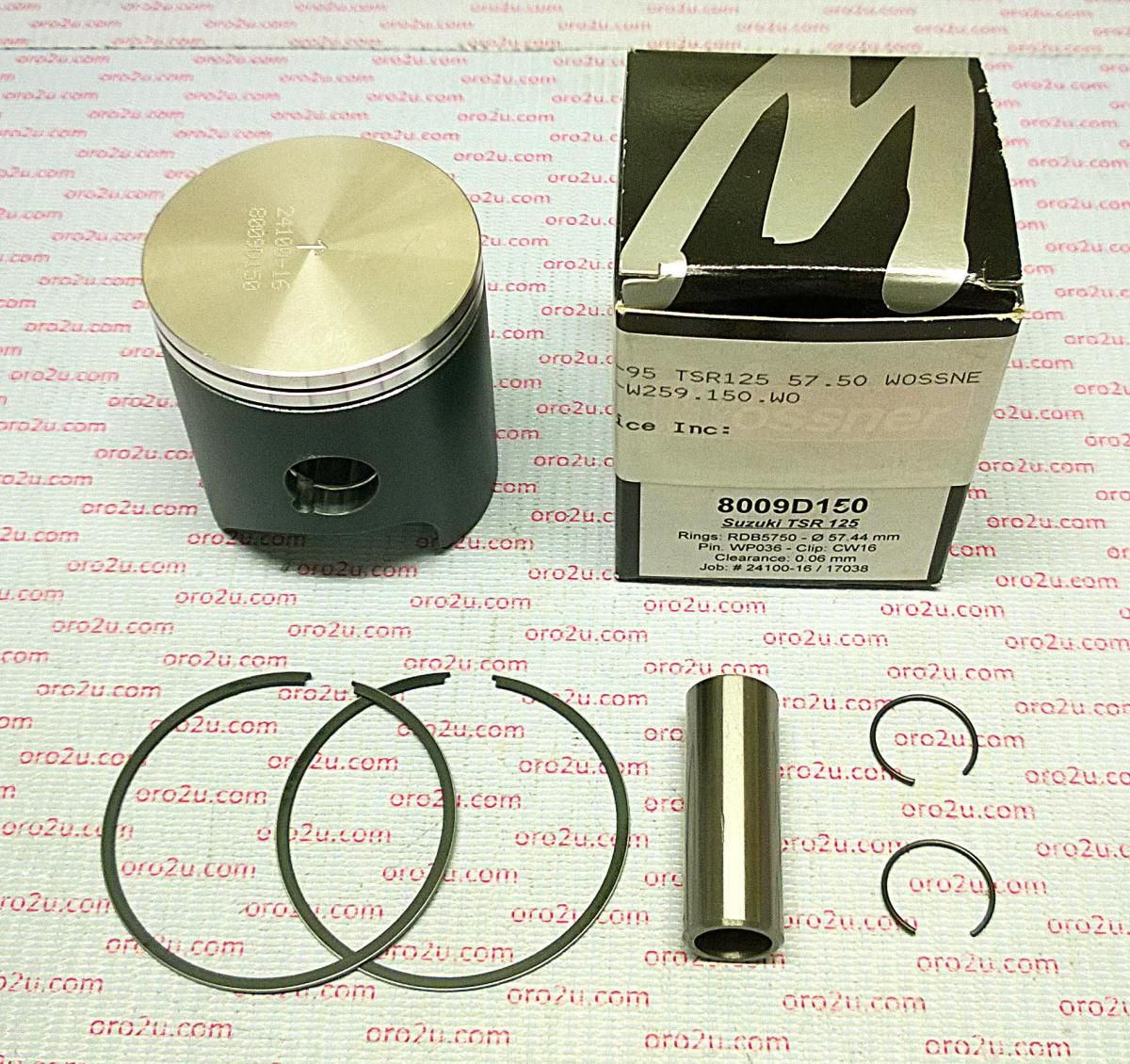

Cross-Reference OEM Part Numbers

• Wossner Piston Suzuki TSR125 (PN# 8009D150)
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5750 x 2

Vehicle Fitments

• Suzuki TSR125 (1989-1995)
