PISTON KIT 89-95 TSR125 56.00, FORGED WOSSNER 8009DA 12140-17C12
PISTON KIT 89-95 TSR125 56.00, FORGED WOSSNER 8009DA 12140-17C12 - Image 2
PISTON KIT 89-95 TSR125 56.00, FORGED WOSSNER 8009DA 12140-17C12 - Image 3
PISTON KIT 89-95 TSR125 56.00, FORGED WOSSNER 8009DA 12140-17C12 - Image 4

PISTON KIT 89-95 TSR125 56.00, FORGED WOSSNER 8009DA 12140-17C12

£108.31

Wossner
Wossner
SKU: 56-W259.000.WO

Brand: Wossner

Stock: 1

1 in stock

Categories: , ,
Size

56mm
Product Type

Pistons & Kits
Product Group

Engine
Catalogue

DIRT
Piston Diameter

56.0
Bore Diameter
Piston Grade
Compression Ratio

PISTON KIT 89-95 TSR125 56.00, FORGED WOSSNER 8009DA 12140-17C12

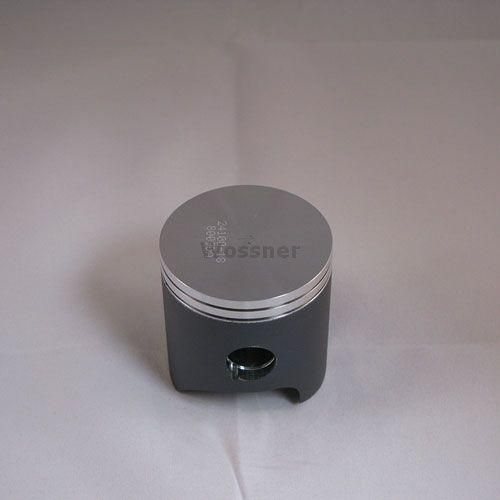

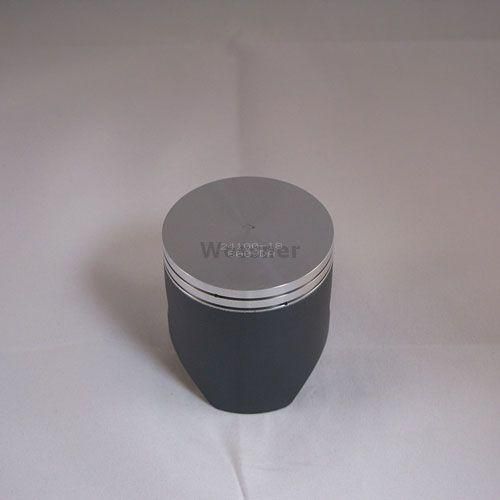

Wossner forged piston kit with a 56.00mm bore and 55.94mm diameter, designed for Suzuki TSR125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

  • Forged construction for superior strength
  • Optimized heat transfer for efficient combustion
  • Elliptical design for uniform load distribution
  • Manufactured in Germany

Specifications

  • Bore: 56.00mm
  • Diameter: 55.94mm
  • Display (cm³): 125
  • Stroke (mm): 50.00
  • Clearance (mm): 0.06
  • Wossner Compression Ratio: 2-Stroke
  • OEM Compression Ratio: 2-Stroke
  • Compression Height (mm): 28.50

Cross-Reference OEM Part Numbers

  • Wossner Piston Suzuki TSR125 (PN# 8009DA)
  • Lock P/N: CW16
  • Pin P/N: WP036
  • Ring Set P/N: RSB5600 x 2
  • OEM Reference: 12140-17C12

Vehicle Fitments

  • Suzuki TSR125 (1989-1995)
