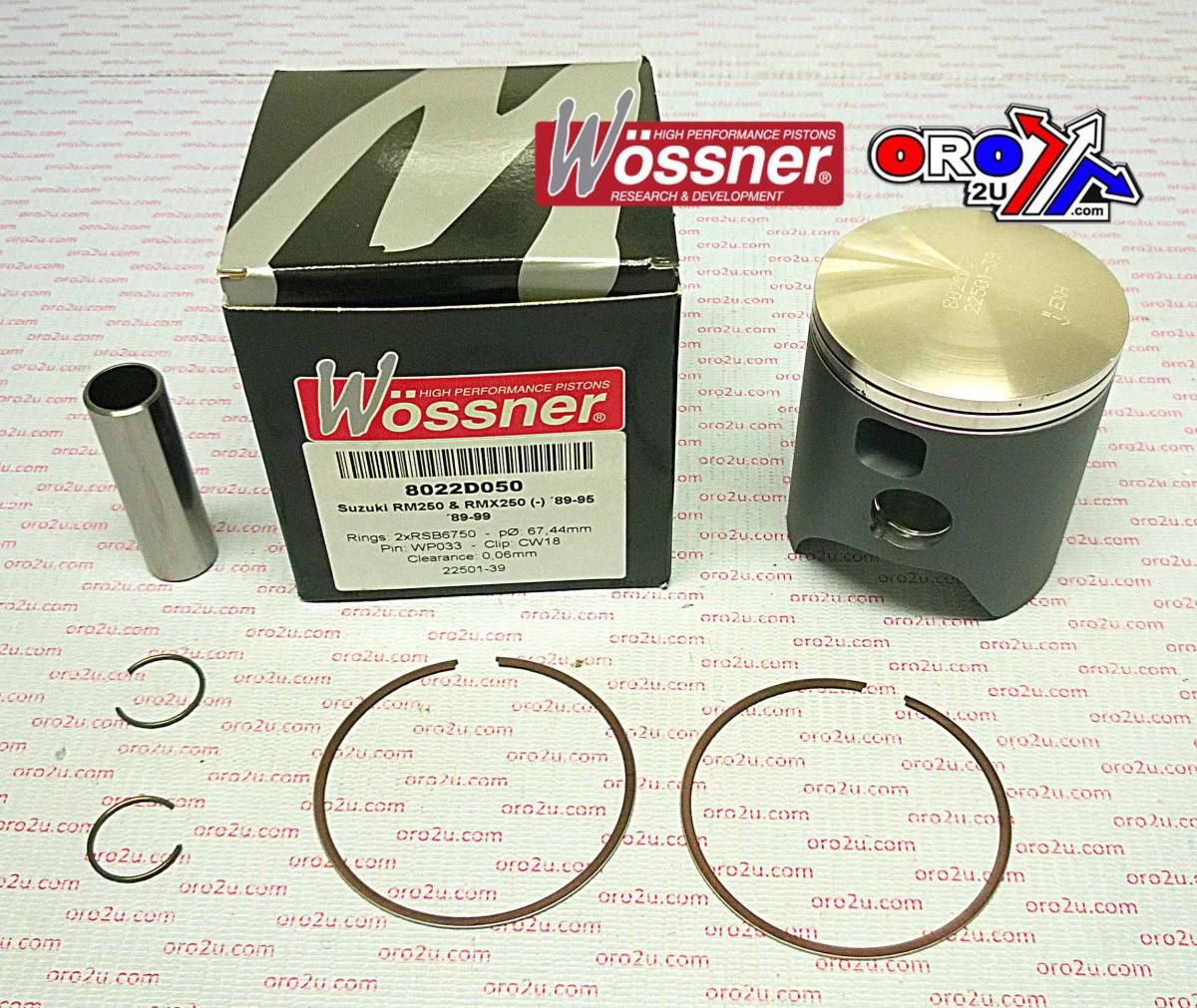

PISTON KIT 89-95 RM250 67.00 B, WOSSNER 8022DB SUZUKI MX

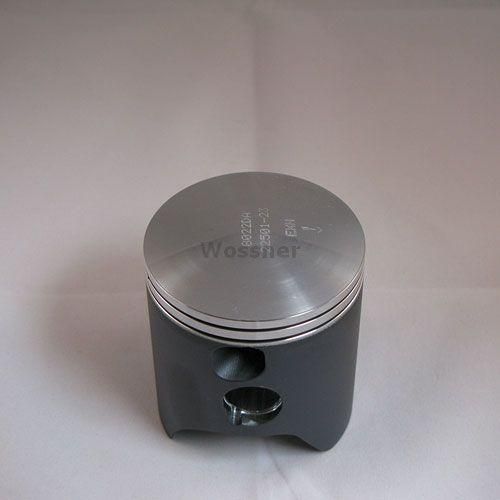

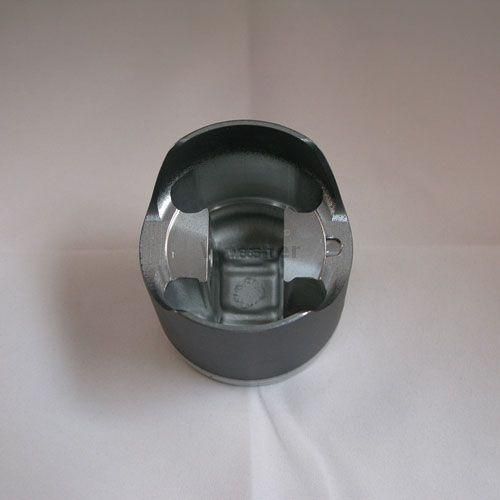

The Wossner 8022DB piston with a 67.01mm bore (66.95mm actual size) is engineered for high performance and durability, fitting Suzuki RM250 (1989-1995) and RMX250 (1993-1995) models. Forged in Germany, this piston is designed to optimise heat transfer from the combustion chamber to the cylinder walls. Its elliptical shape ensures uniform bearing surfaces during heat expansion, preventing localised pressure and piston collapse.

Features

• Forged construction for superior strength and design

• Engineered for optimal heat transfer to cylinder walls

• Elliptical design to evenly distribute thrust loads and prevent piston collapse

• Manufactured in Germany

Specifications

• Bore: 67.01mm (actual size 66.95mm)

• Part Number: 56-W642.00B.WO

• Lock Part Number: CW18

• Pin Part Number: WP033

• Ring Set Part Number: RSB6700 x 2

• Displacement: 246 cm³

• Stroke: 70.80mm

• Clearance: 0.06mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 37.00mm

Cross-Reference OEM Part Numbers

• Piston: 12110-28C11-0F0, 12110-29E20-0F0

• Ring, Piston: 12141-41600, 12141-41620

• Pin, Piston: 12151-28C00, 12151-37F00

• Circlip: 09381-18002

Vehicle Fitments

• 1993 Suzuki RM 250

• 1993 Suzuki RMX 250

• 1994 Suzuki RM 250

• 1994 Suzuki RMX 250

• 1995 Suzuki RM 250

• 1995 Suzuki RMX 250
