| Size | 48.50mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 48.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT 89-90 RM80 48.50, WOSSNER 8191D100 SUZUKI MX

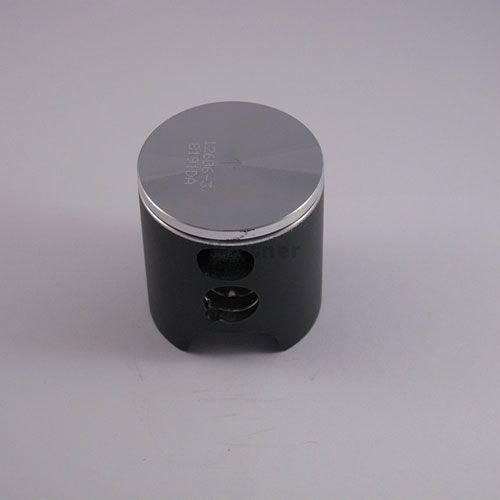

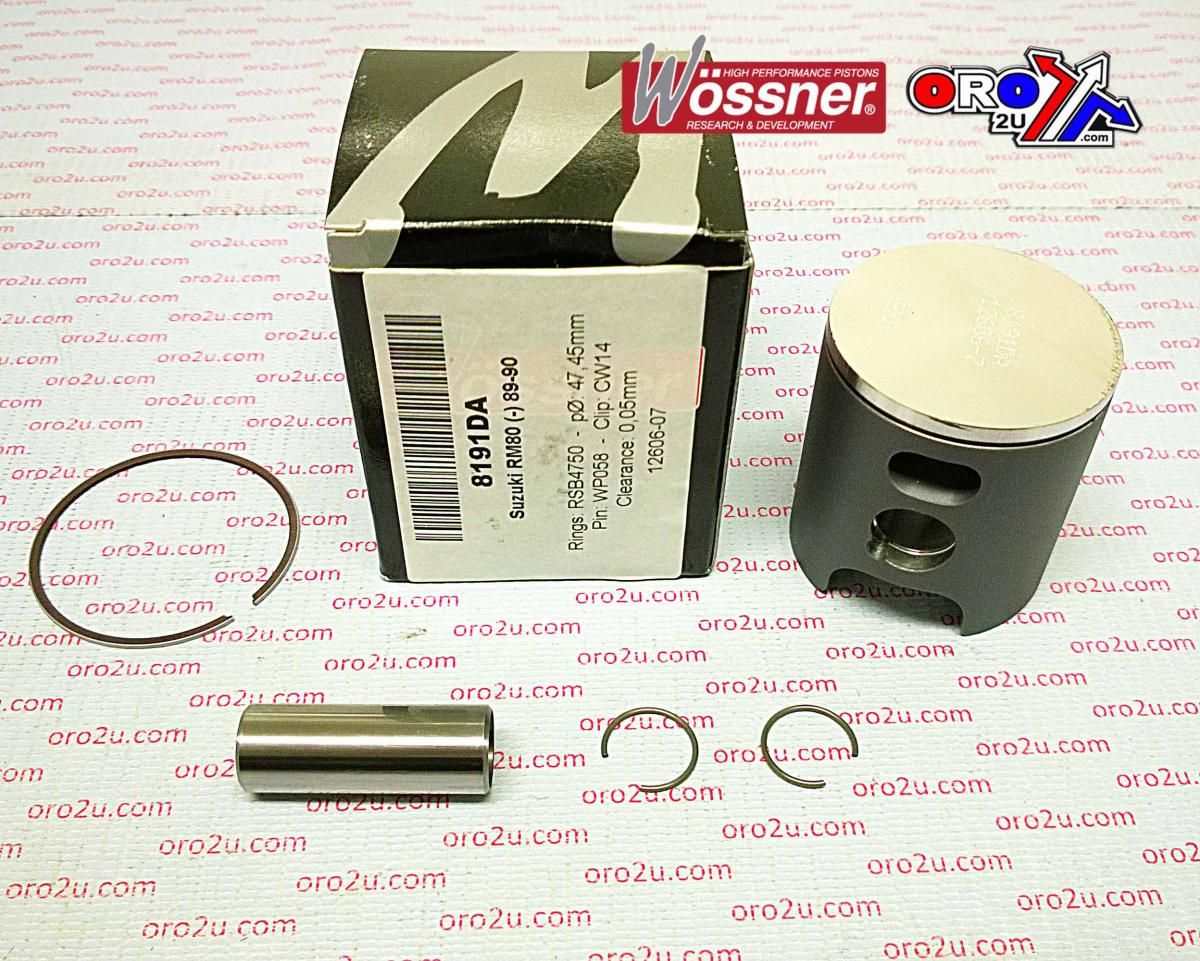

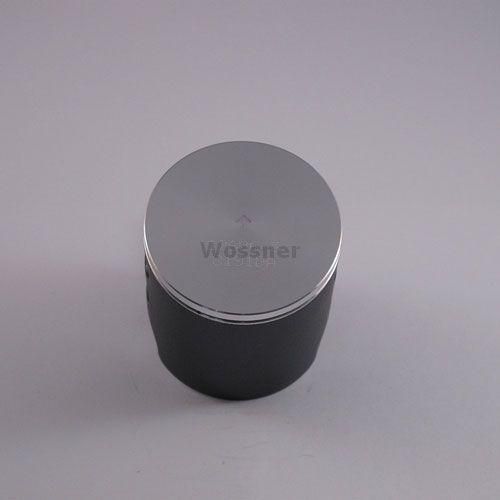

Wossner Forged Piston Kit 48.50mm Bore – Suzuki RM80 1989–1990 (8191D100 +1.00)
This Wossner forged piston kit with a +1.00mm oversize bore (actual 48.45mm) is engineered for Suzuki RM80 models from 1989 to 1990. The forged aluminium construction provides excellent strength and thermal resistance, making it suitable for high-stress 2-stroke applications. The piston’s elliptical design ensures balanced thrust load distribution during expansion, minimising the risk of stress fractures and piston collapse. Manufactured in Germany for precision and reliability.
Features
-
Forged piston offers high durability and strength under engine load
-
Heat-efficient design for optimal combustion temperature management
-
Elliptical profile improves bearing surface and load distribution
-
Suited for 2-stroke engine applications
-
Manufactured in Germany
Specifications
-
Bore Size: 48.50mm (+1.00 oversize)
-
Actual Bore: 48.45mm
-
Compression Height: 27.00mm
-
Clearance: 0.05mm
-
Stroke: 46.80mm
-
Displacement: 82 cm³
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
Cross-Reference OEM Part Numbers
-
Wossner Piston: 8191D100
-
Ring Set: RSB4850
-
Lock: CW14
-
Pin: WP058
-
Internal Reference: 56-W579+100.WO
Vehicle Fitments
-
1989 Suzuki RM80
-
1990 Suzuki RM80
