PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC
PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC - Image 2
PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC - Image 3
PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC - Image 4

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC

£108.31

Wossner
Wossner
SKU: 56-W208.C.WO

Brand: Wossner

Out of Stock

Out of stock

Categories: , ,
Size

56mm
Product Type

Pistons & Kits
Product Group

Engine
Catalogue

DIRT
Piston Diameter

56.0
Bore Diameter
Piston Grade
Compression Ratio

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC

Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.

Features

  • Forged piston for enhanced strength and durability
  • Optimized heat transfer for efficient combustion
  • Elliptical design to prevent piston collapse
  • Manufactured in Germany

Specifications

  • Bore Size: 56.02mm
  • Actual Bore Diameter: 55.96mm
  • Displacement: 125 cm³
  • Stroke: 50.60mm
  • Clearance: 0.06mm
  • Wossner Compression Ratio: 2-Stroke
  • OEM Compression Ratio: 2-Stroke
  • Compression Height: 29.50mm
  • Theoretical Weight: Not specified

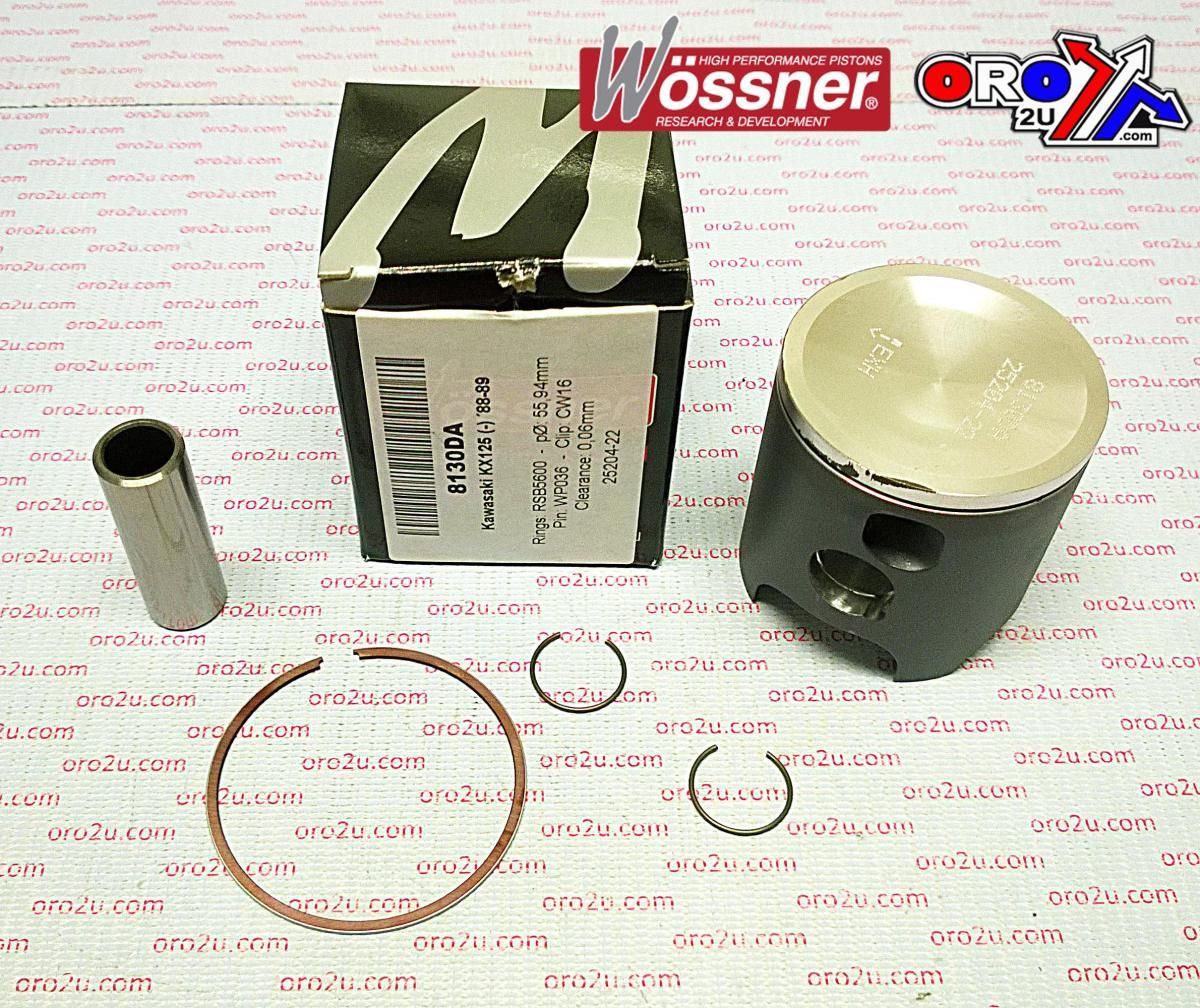

Included Components

  • Lock Part Number: CW16
  • Pin Part Number: WP036
  • Ring Set Part Number: RSB5600

Vehicle Fitments

  • Kawasaki KX125 (1988-1989)
