PISTON KIT 88-00 KX80 52.50, WOSSNER 8197D450 KAWASAKI MX

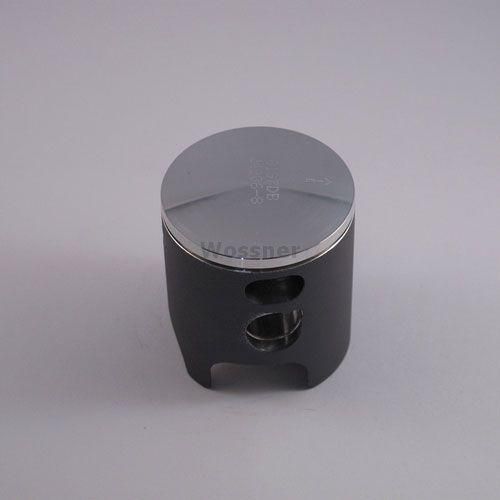

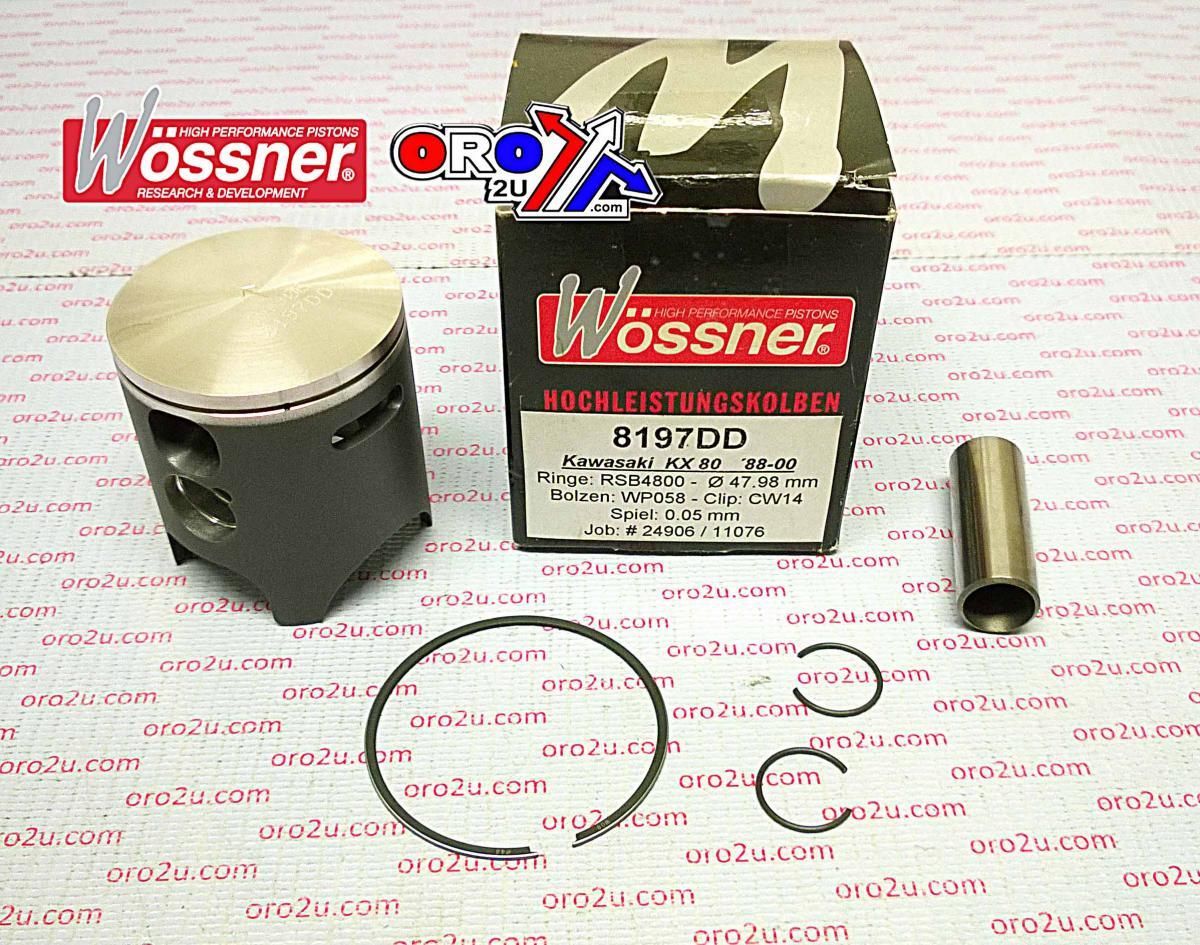

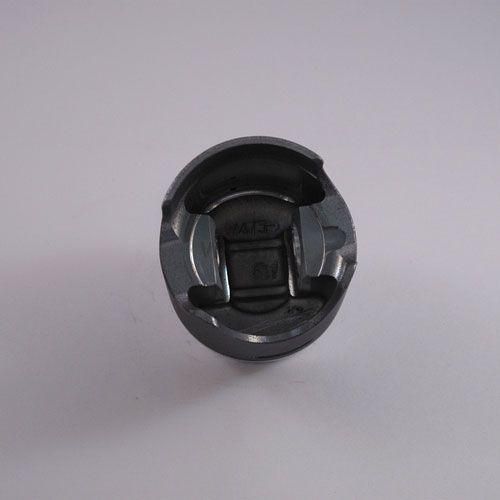

Wossner forged piston kit with a 52.50mm bore size (52.45mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design that ensures uniform bearing surfaces during heat expansion, promotes effective heat transfer, and evenly distributes thrust loads to prevent piston collapse.

Features

• Forged piston construction for superior strength and durability

• Designed for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical design promotes uniform bearing surface during thermal expansion

• Reduces localised pressure and prevents piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 52.50mm (actual 52.45mm)

• Display Displacement: 80 cm³

• Stroke: 45.80mm

• Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8197D450

• Lock: CW14

• Pin: WP058

• Ring Set: RSB5250

Vehicle Fitments

• 1988–2000 Kawasaki KX80 (US Bore)
