PISTON KIT 88-00 KX80 49.00, WOSSNER 8197D100 KAWASAKI MX

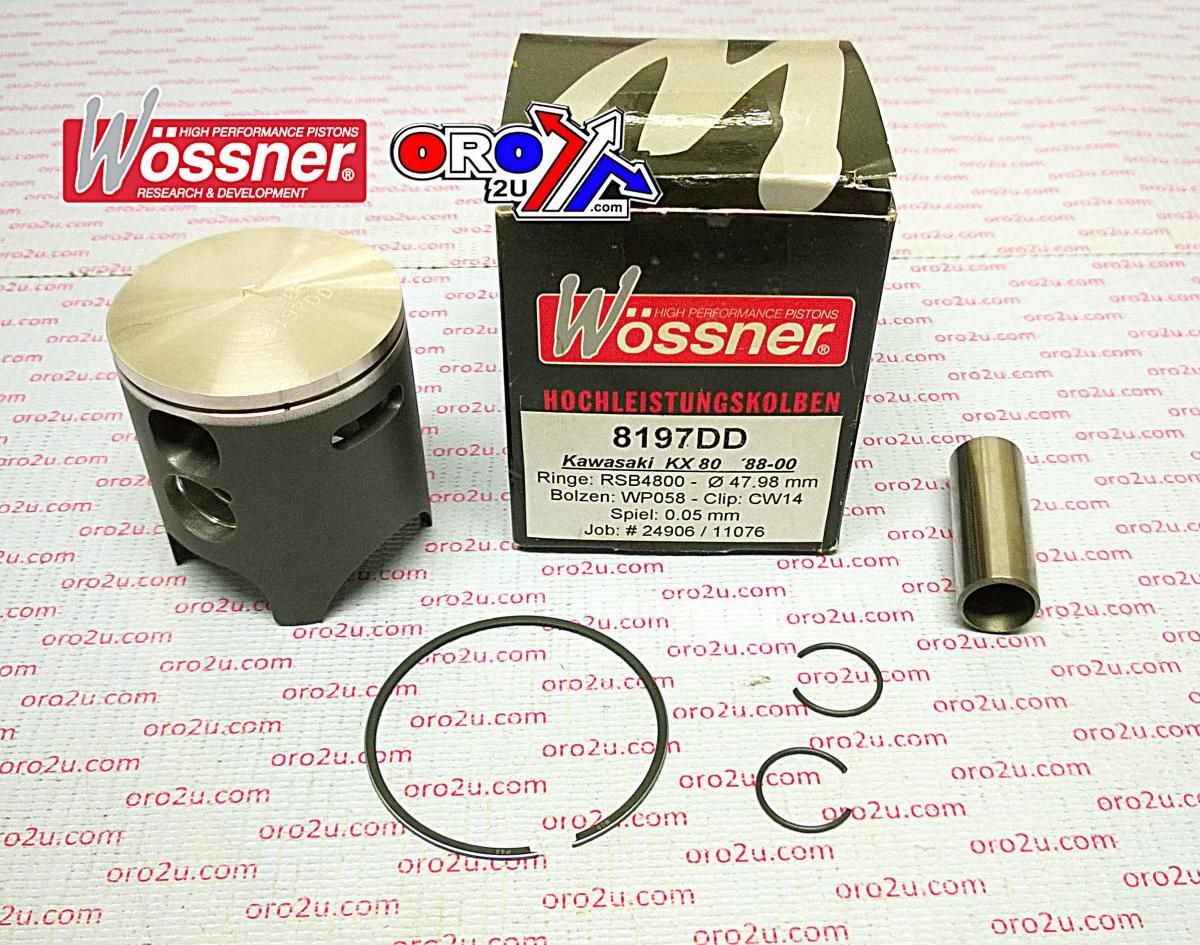

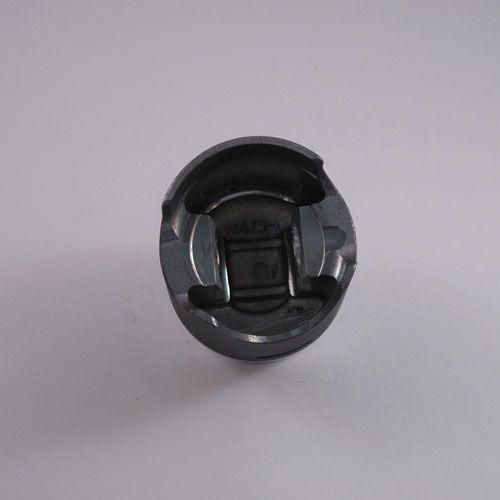

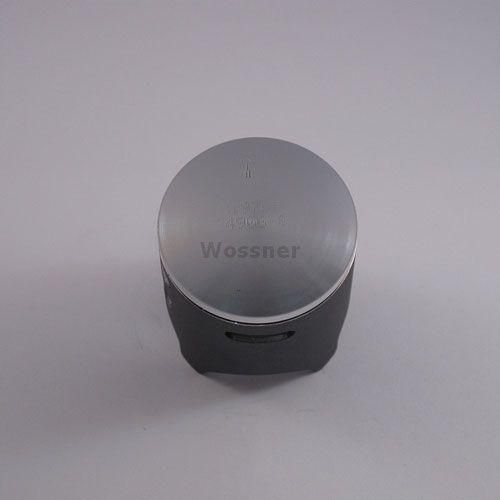

Wossner forged piston kit with a 49mm bore size (48.95mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design that improves uniform bearing surfaces during heat expansion, enhances combustion chamber heat transfer, and evenly distributes thrust loads to prevent piston collapse.

Features

• Forged piston construction for superior strength and durability

• Designed for efficient heat transfer from combustion chamber to cylinder walls

• Elliptical design promotes uniform bearing surface during thermal expansion

• Reduces localised pressure and prevents piston collapse

• Manufactured in Germany

Specifications

• Bore Size: 49mm (actual 48.95mm)

• Display Displacement: 80 cm³

• Stroke: 45.80mm

• Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Compression Height: 26.00mm

Cross-Reference OEM Part Numbers

• Piston Kit: 8197D100

• Lock: CW14

• Pin: WP058

• Ring Set: RSB4900

Vehicle Fitments

• 1988–2000 Kawasaki KX80 (US Bore)
