| Size | 56mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 56.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT 86-88 YZ125 56.00, WOSSNER 8118DA YAMAHA MX 1LX-11635-00-00

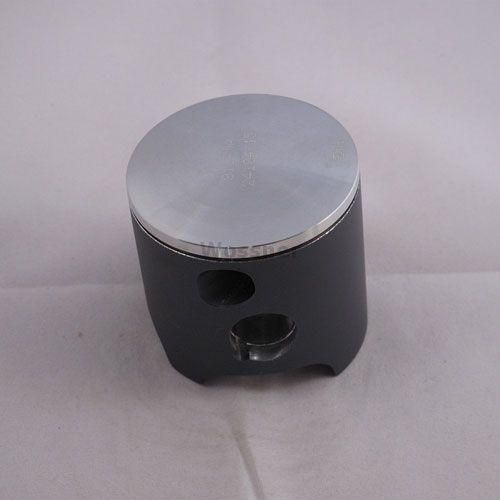

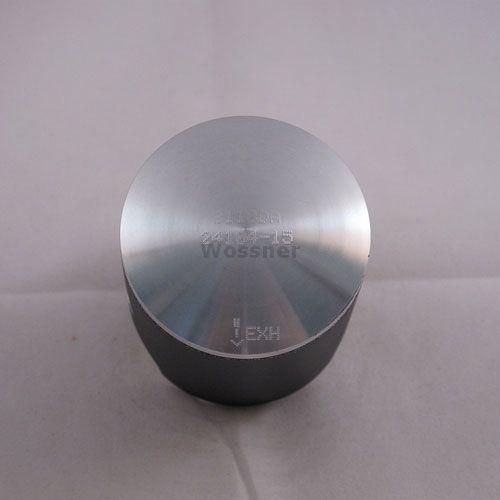

This Wossner 56.00mm standard bore forged piston kit is designed for Yamaha YZ125 models from 1986 to 1988. Manufactured in Germany, it features a forged construction and elliptical design that enhances durability, manages heat expansion effectively, and distributes mechanical loads evenly. Engineered for two-stroke performance, the piston promotes efficient heat transfer from the combustion chamber to the cylinder walls.
Features
-
Forged piston construction for superior strength
-
Elliptical design ensures uniform bearing surface during heat expansion
-
Even thrust load distribution helps prevent localised stress and piston collapse
-
Designed for efficient combustion heat transfer to cylinder walls
-
Manufactured in Germany
Specifications
-
Bore: 56.00mm
-
Actual diameter: 55.94mm
-
Displacement: 123 cm³
-
Stroke: 50.00mm
-
Clearance: 0.06mm
-
Compression height: 30.00mm
-
Compression ratio: 2-stroke

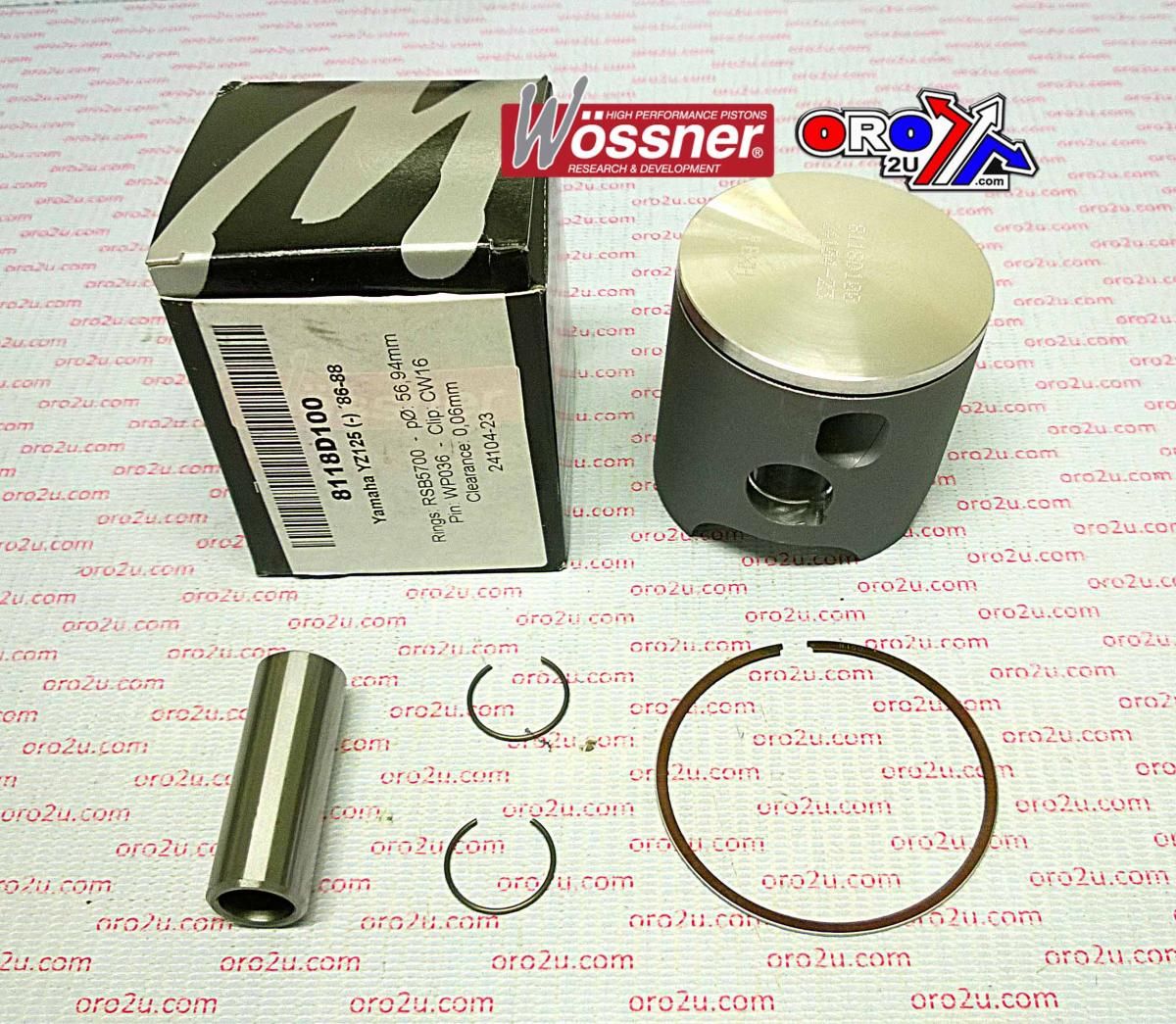

Cross-Reference OEM Part Numbers
-
Piston Kit Part No.: 56-W559+000.WO
-
Wossner Piston Kit No.: 8118DA
-
Lock: CW16
-
Pin: WP036
-
Ring Set: RSB5600
-
OEM Reference: 1LX-11635-00-00
Vehicle Fitments
-
Yamaha YZ125 1986
-
Yamaha YZ125 1987
-
Yamaha YZ125 1988
