| Size | 66.50mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 66.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT 86-09 KDX200 66.50, WOSSNER 8093D050 KAWASAKI MX

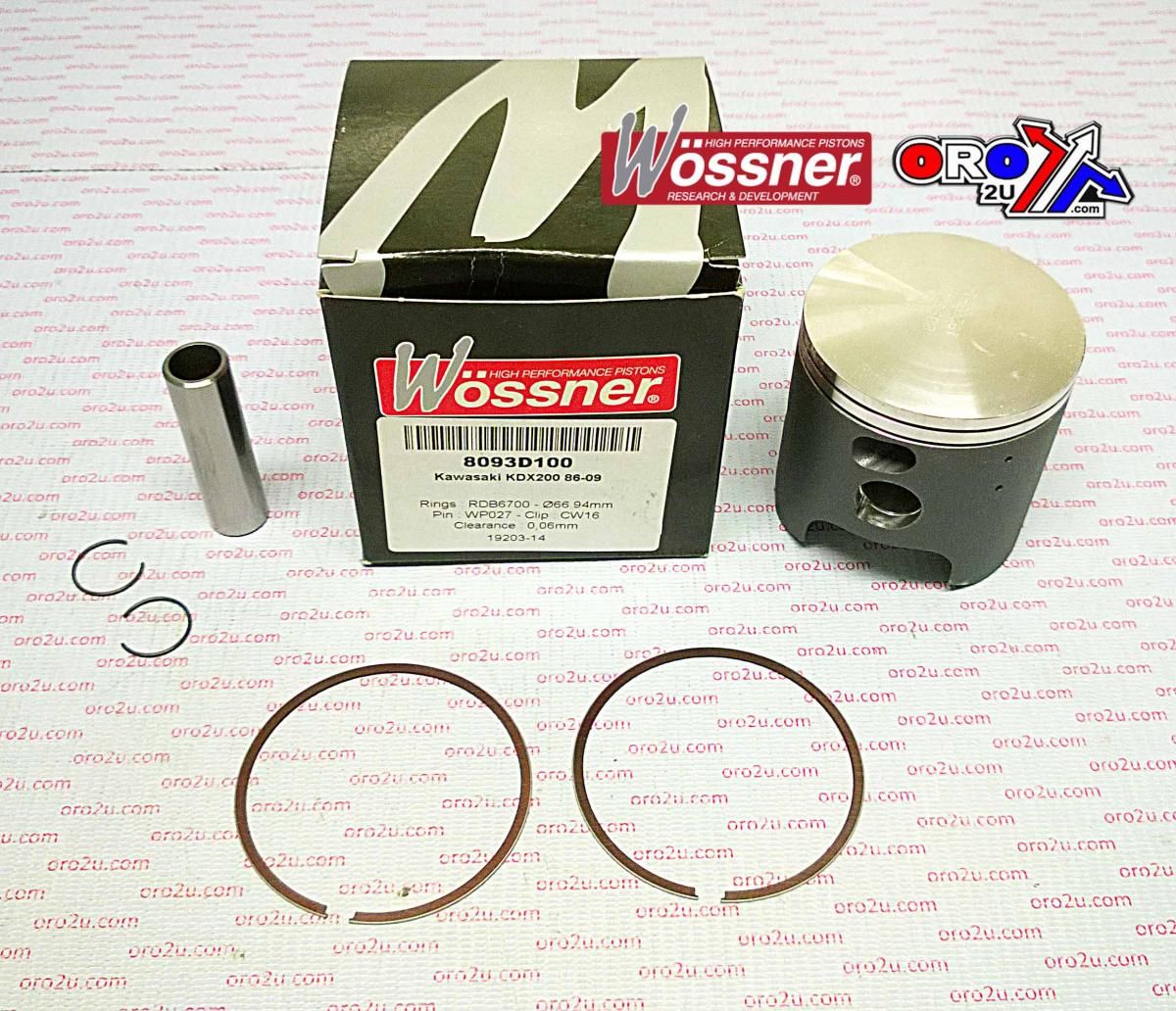

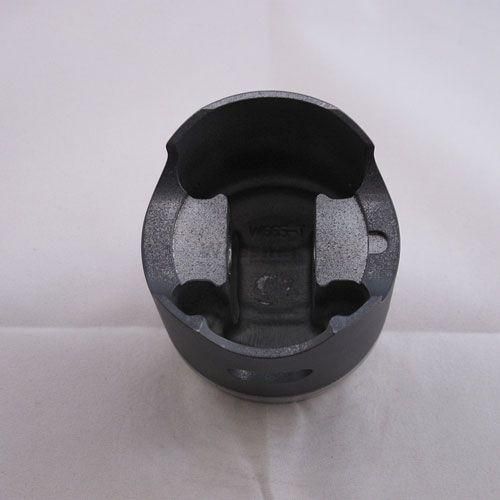

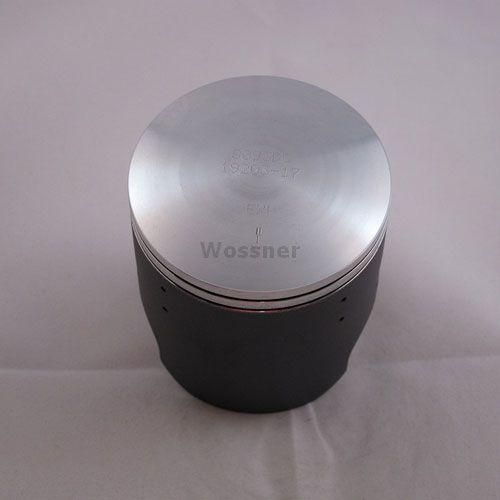

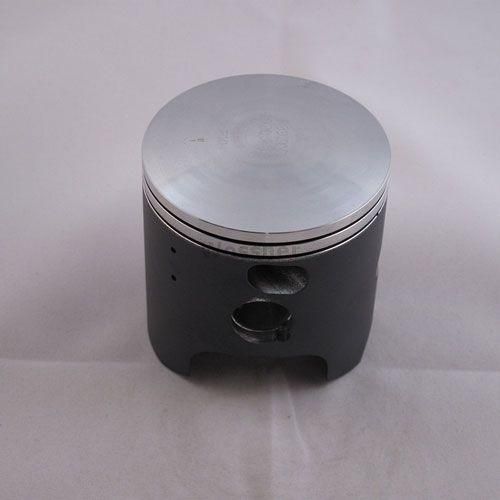

Wossner Forged Piston Kit 66.50mm Bore – Kawasaki KDX200 (1986–2006)
This Wossner forged piston kit features a 66.50 mm bore with a piston diameter of 66.44 mm, intended for Kawasaki KDX200 models from 1986 to 2006. Precision-forged and engineered for optimal performance in 2-stroke engines, it provides excellent heat transfer and superior durability. The elliptical piston design supports uniform load distribution under high thermal stress, reducing wear and minimising the risk of piston failure. Manufactured in Germany.
Features
-
Forged piston design for enhanced strength and longevity
-
Efficient thermal transfer from combustion chamber to cylinder walls
-
Elliptical profile ensures even thrust load distribution under heat expansion
-
Manufactured in Germany for precision and performance
Specifications
-
Bore Size: 66.50 mm
-
Piston Diameter: 66.44 mm
-
Engine Displacement: 198 cm³
-
Stroke: 58.00 mm
-
Clearance: 0.06 mm
-
Compression Height: 32.00 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference OEM Part Numbers
-
Not specified in provided data
Cross-Reference Wossner Part Numbers
-
Piston Kit: 8093D050
-
Lock: CW16
-
Pin: WP027
-
Ring Set: RSB6650 x 2
-
Rod: P2033
Vehicle Fitments
-
1986 Kawasaki KDX 200
-
1987 Kawasaki KDX 200
-
1988 Kawasaki KDX 200
-
1989 Kawasaki KDX 200
-
1990 Kawasaki KDX 200
-
1991 Kawasaki KDX 200
-
1992 Kawasaki KDX 200
-
1993 Kawasaki KDX 200
-
1994 Kawasaki KDX 200
-
1995 Kawasaki KDX 200
-
1996 Kawasaki KDX 200
-
1997 Kawasaki KDX 200
-
1998 Kawasaki KDX 200
-
1998 Kawasaki KDX 220
-
1999 Kawasaki KDX 200
-
2000–2006 Kawasaki KDX 200
