| Size | 46mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 46.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

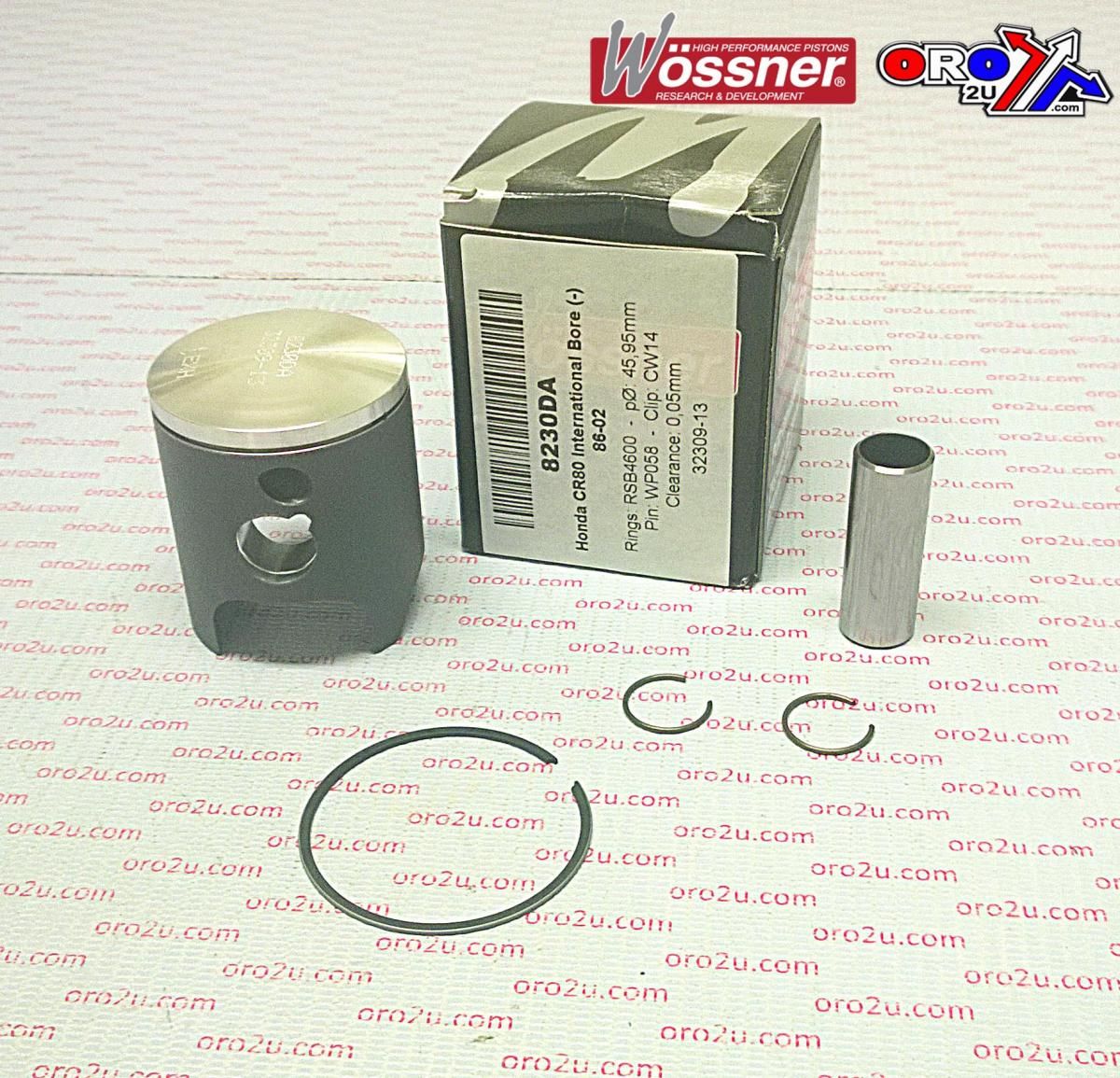

PISTON KIT 86-02 CR80 46mm, FORGE WOSSNER 8230DA
Wossner forged piston kit designed for superior strength and performance in 2-stroke engines. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.
Features
- Forged construction for enhanced durability
- Optimized heat transfer for improved performance
- Elliptical design prevents localized pressure and piston collapse
- Designed for 2-stroke applications
Specifications
- Bore: 45.95 mm
- Piston Size: 46.00 mm
- Displacement: 80 cm³
- Stroke: 47.80 mm
- Clearance: 0.05 mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
- Compression Height: 24.00 mm
Cross-Reference OEM Part Numbers
- Lock: CW14
- Pin: WP058
- Ring Set: RSB4600
Vehicle Fitments
- Honda CR 80 (1986-2002)
