| Size | 55.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 55.5 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

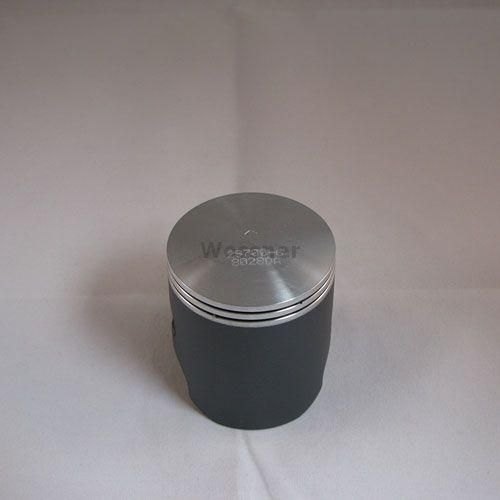

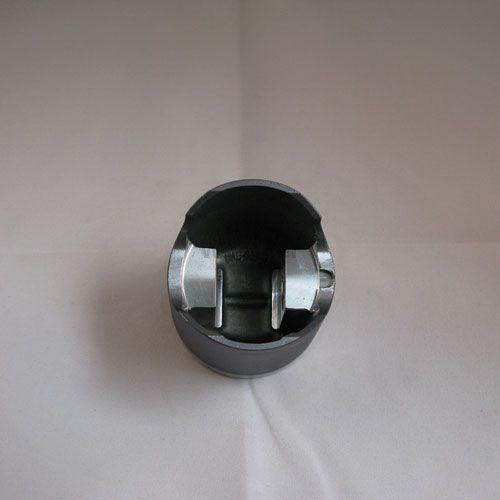

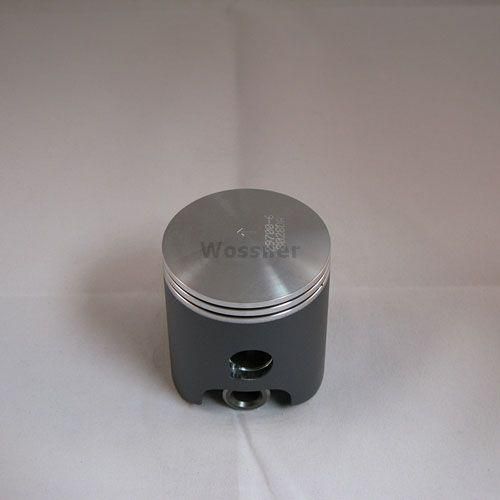

PISTON KIT 85-91 RG125 55.50, FORGED WOSSNER 8028D150
Wossner forged piston kit with a 55.50mm bore and 55.44mm diameter, designed for Suzuki RG125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Features
- Forged construction for superior strength
- Optimized heat transfer for efficient combustion
- Elliptical design for uniform load distribution
- Manufactured in Germany
Specifications
- Bore: 55.50mm
- Diameter: 55.44mm
- Display (cm³): 125
- Stroke (mm): 54.00
- Clearance (mm): 0.06
- Wossner Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Compression Height (mm): 28.00
Cross-Reference OEM Part Numbers

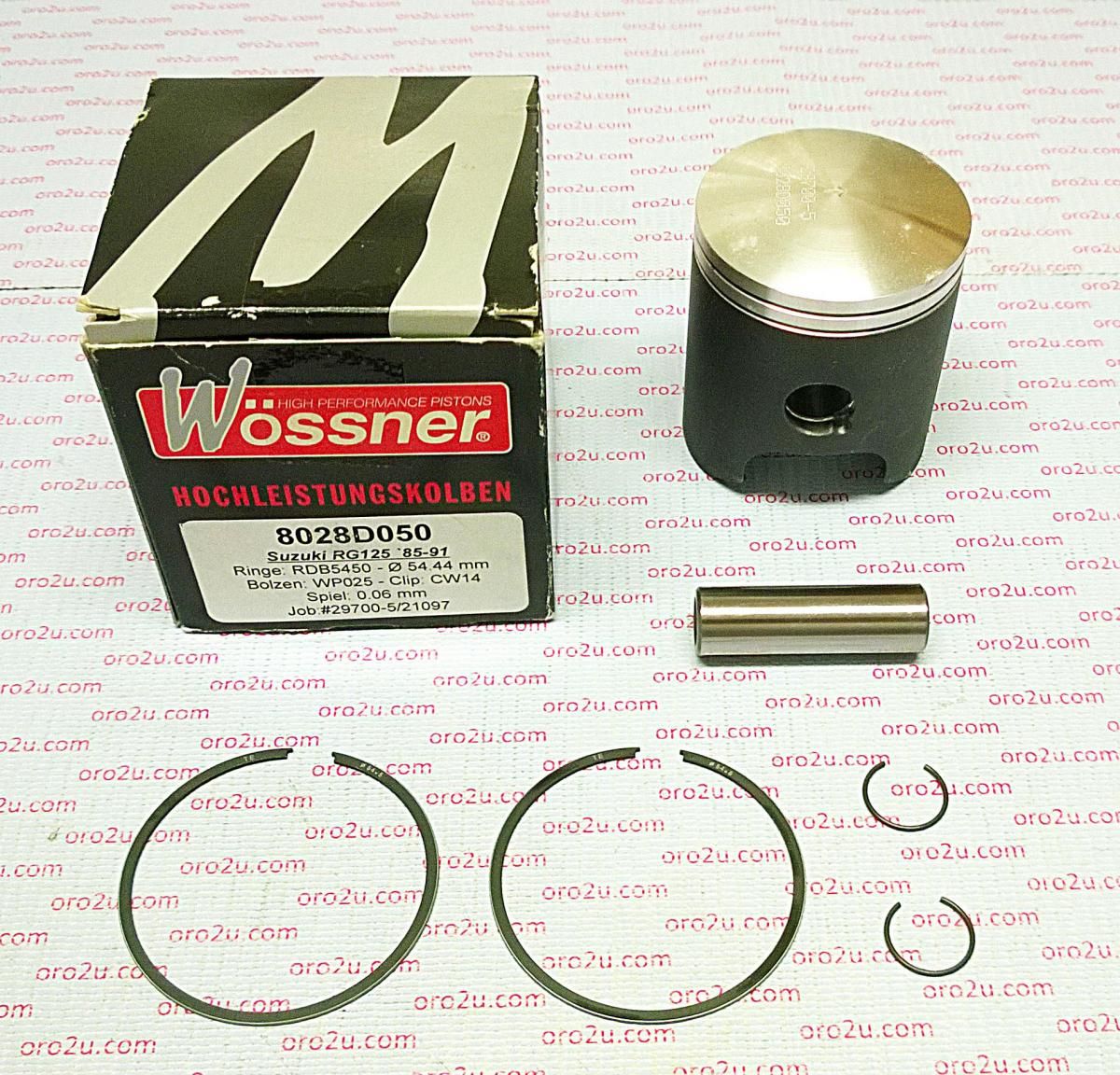

- Wossner Piston Suzuki RG125 (PN# 8028D150)
- Lock P/N: CW14
- Pin P/N: WP025
- Ring Set P/N: RSB5550 x 2
Vehicle Fitments
- Suzuki RG125 (1985-1991)
