PISTON KIT 85-91 RG125 54.50, FORGED WOSSNER 8028D050
PISTON KIT 85-91 RG125 54.50, FORGED WOSSNER 8028D050 - Image 2
PISTON KIT 85-91 RG125 54.50, FORGED WOSSNER 8028D050 - Image 3
PISTON KIT 85-91 RG125 54.50, FORGED WOSSNER 8028D050 - Image 4

PISTON KIT 85-91 RG125 54.50, FORGED WOSSNER 8028D050

£114.82

Wossner
Wossner
SKU: 56-W258.050.WO

Brand: Wossner

Stock: 1

1 in stock

Categories: , ,
Size

54.5mm
Product Type

Pistons & Kits
Product Group

Engine
Catalogue

DIRT
Piston Diameter

54.5
Bore Diameter
Piston Grade
Compression Ratio

PISTON KIT 85-91 RG125 54.50, FORGED WOSSNER 8028D050

Wossner forged piston kit with a 54.50mm bore and 54.44mm diameter, designed for Suzuki RG125 models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

  • Forged construction for superior strength
  • Optimized heat transfer for efficient combustion
  • Elliptical design for uniform load distribution
  • Manufactured in Germany

Specifications

  • Bore: 54.50mm
  • Diameter: 54.44mm
  • Display (cm³): 125
  • Stroke (mm): 54.00
  • Clearance (mm): 0.06
  • Wossner Compression Ratio: 2-Stroke
  • OEM Compression Ratio: 2-Stroke
  • Compression Height (mm): 28.00

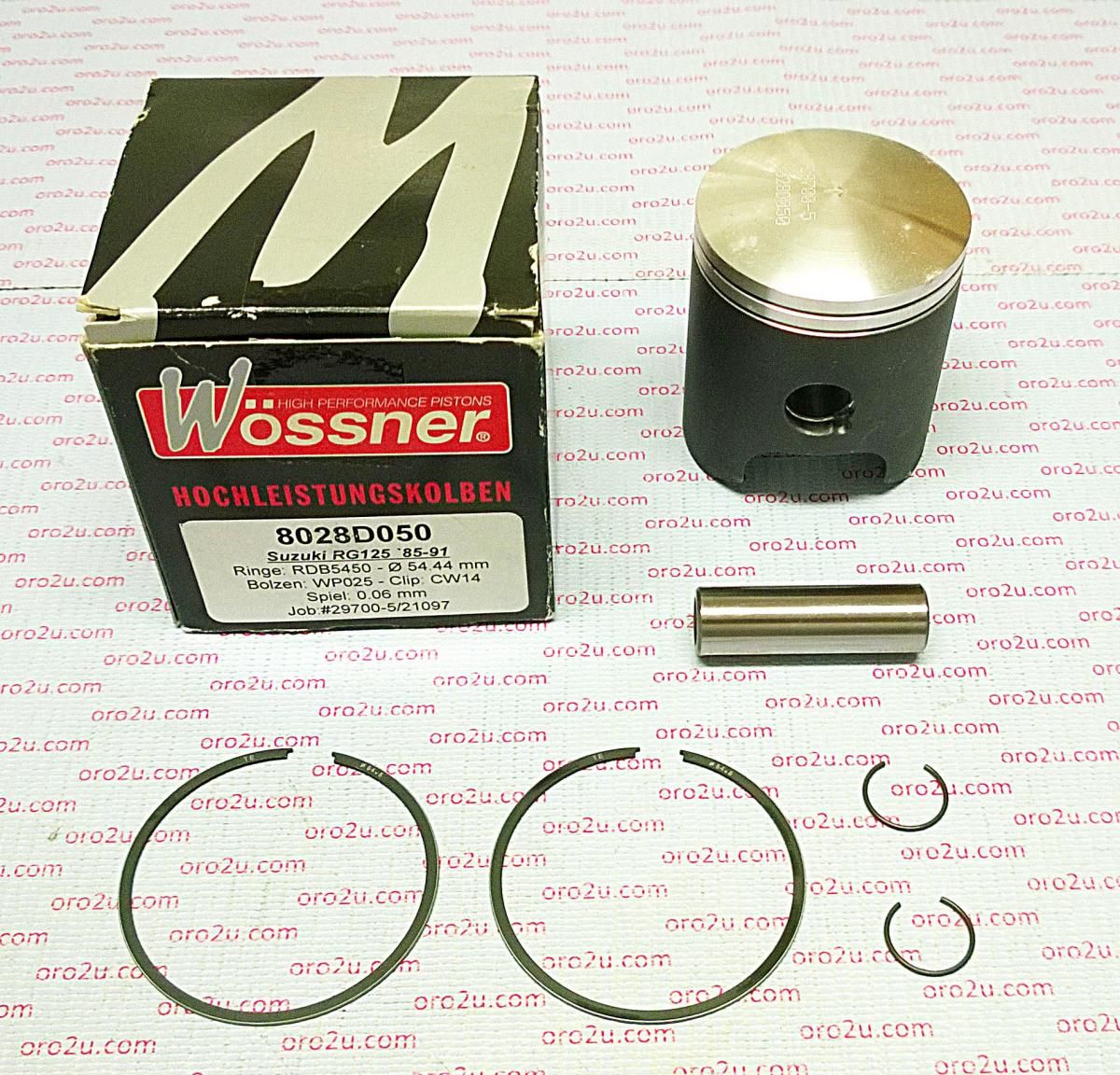

Cross-Reference OEM Part Numbers

  • Wossner Piston Suzuki RG125 (PN# 8028D050)
  • Lock P/N: CW14
  • Pin P/N: WP025
  • Ring Set P/N: RSB5450 x 2

Vehicle Fitments

  • Suzuki RG125 (1985-1991)
