| Size | 97.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 97.50 |

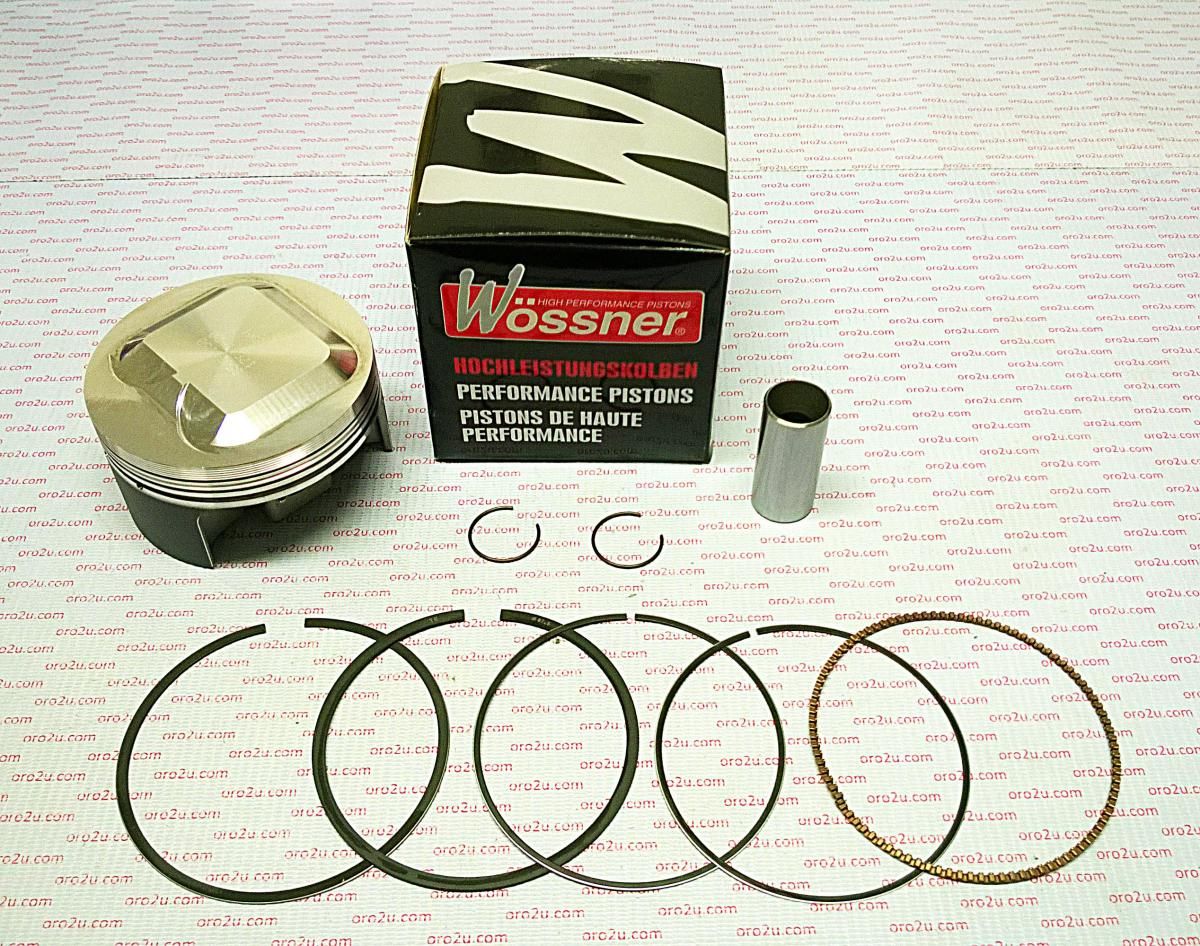

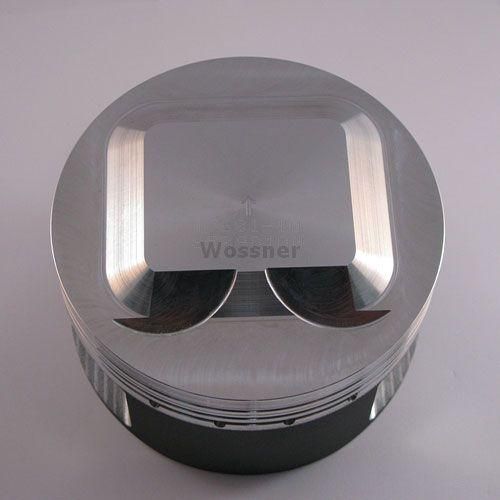

PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150
- Piston Kit: Wossner 8509D150, with a 97.50mm bore (+1.50mm)
- Application: Kawasaki KLR600, produced between 1984 and 1985
- Features:
- Wossner forged pistons known for superior strength and design
- Engineered for efficient combustion chamber heat transfer to cylinder walls
- Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
- Manufacturing: Made in Germany
- Additional Parts:
- Lock: CW23
- Pin: WP008
- Ring Set: 975XSY
- Specifications:
- Displacement: 564 cm³
- Hub Stroke: 62.10mm
- Clearance: 0.05mm
- Compression Ratio: OEM specified (12.80:1)
- Dome Volume: +0.90cm³
- Compression Height: 23.70mm
- Theoretical Weight: 259.00 grams
