| Size | 56mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 56.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

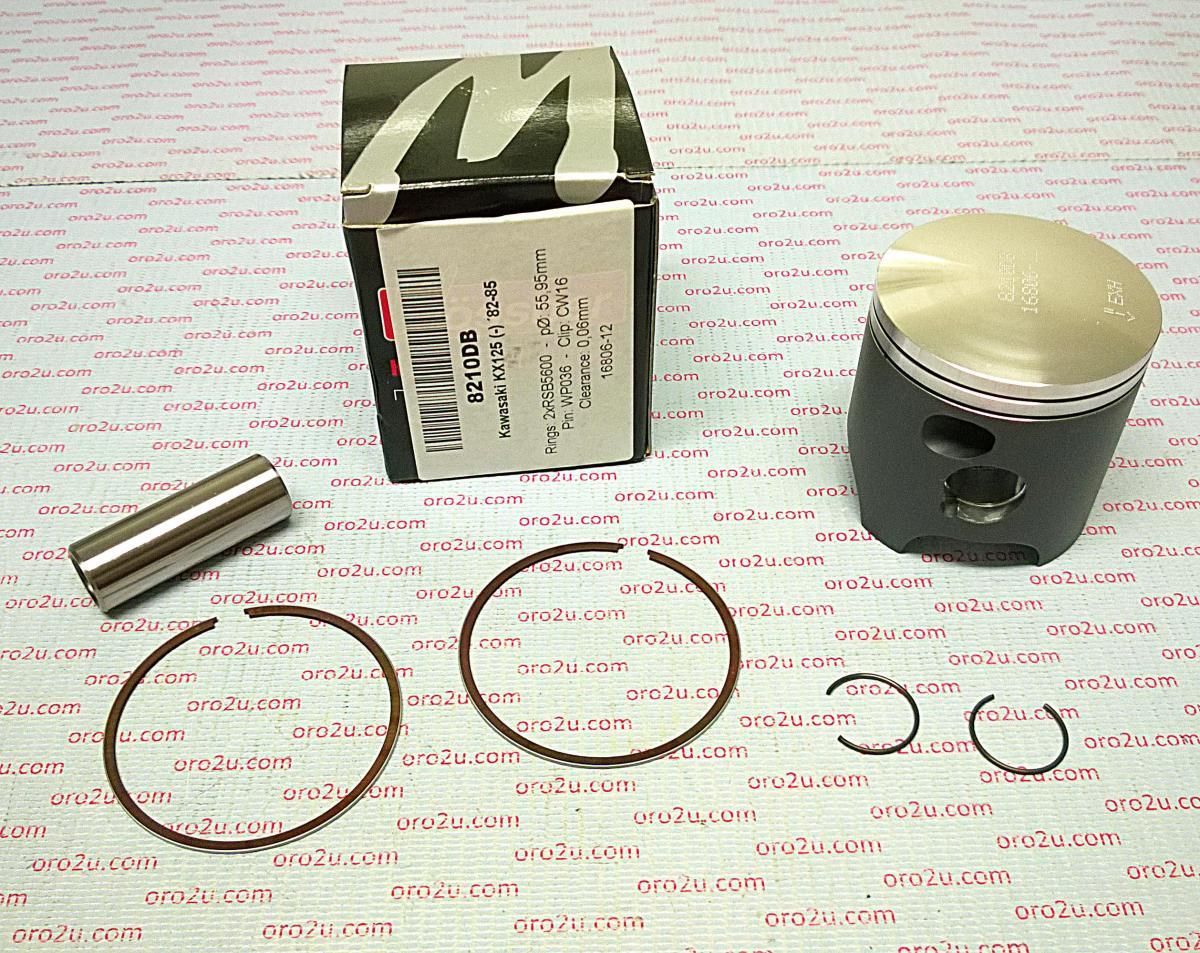

PISTON KIT 82-85 KX125 56.00, WOSSNER 8210DB FORGED KIT

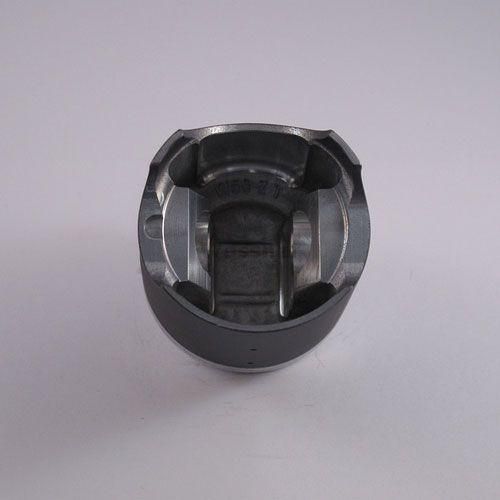

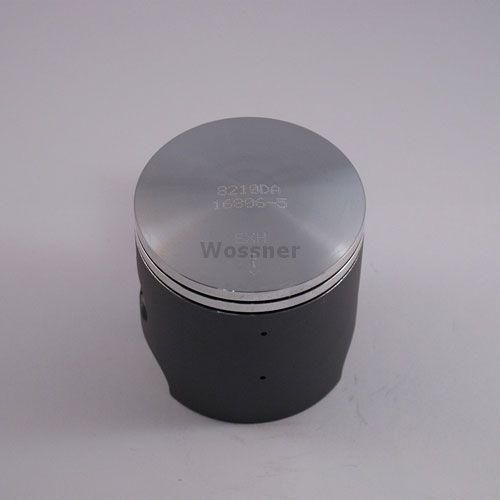

Wossner 56.01mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.
Features
- Forged construction for enhanced strength and longevity
- Optimized heat transfer for improved engine performance
- Elliptical design prevents piston collapse and ensures even load distribution
- Manufactured in Germany for high-quality standards
Specifications
- Bore Size: 56.01mm
- Actual Bore Diameter: 55.95mm
- Displacement: 125 cm³
- Stroke: 50.60mm
- Clearance: 0.06mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
- Compression Height: 29.70mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5600 x 2
- Rod Part Number: P2037
Cross-Reference OEM Part Numbers
- Part No: 56-W486.00B.WO
- Wossner Part No: 8210DB
Vehicle Fitments
- Kawasaki KX125 (1982 – 1985)
