PISTON KIT 82-85 KX125 56.00, WOSSNER 8210DA FORGED 13001-1198

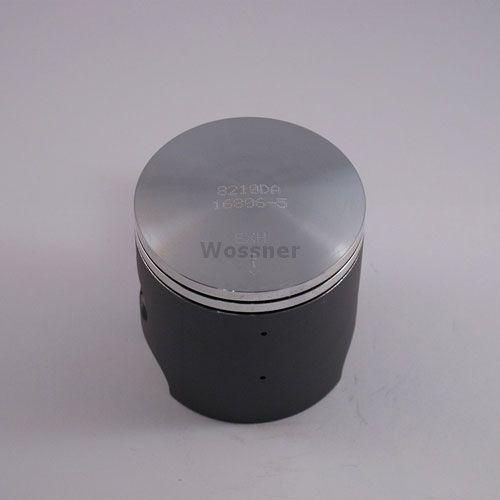

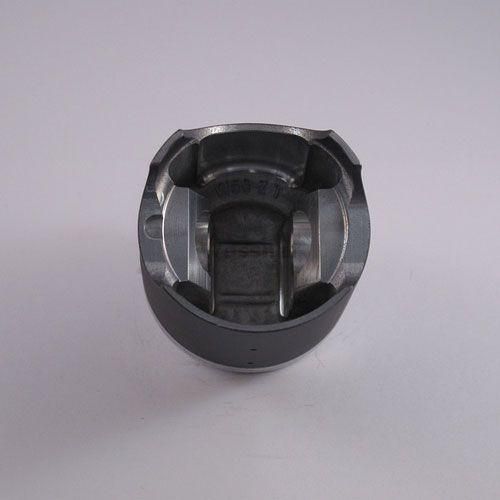

Wossner 56.00mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.

Features

• Forged construction for enhanced strength and longevity
• Optimized heat transfer for improved engine performance
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards

Specifications

• Bore Size: 56.00mm
• Actual Bore Diameter: 55.94mm
• Displacement: 125 cm³
• Stroke: 50.60mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 29.70mm
• Lock Part Number: CW16
• Pin Part Number: WP036
• Ring Set Part Number: RSB5600 x 2
• Rod Part Number: P2037

Cross-Reference OEM Part Numbers

• 13001-1198
• 486M05600
• Part No: 56-W486.00A.WO
• Wossner Part No: 8210DA

Vehicle Fitments

• Kawasaki KX125 (1982 – 1985)
