| Product Type | Pistons & Kits |
|---|---|
| Product Group | Engine |
| Catalogue | ROAD |
| Piston Diameter | 72.0 |

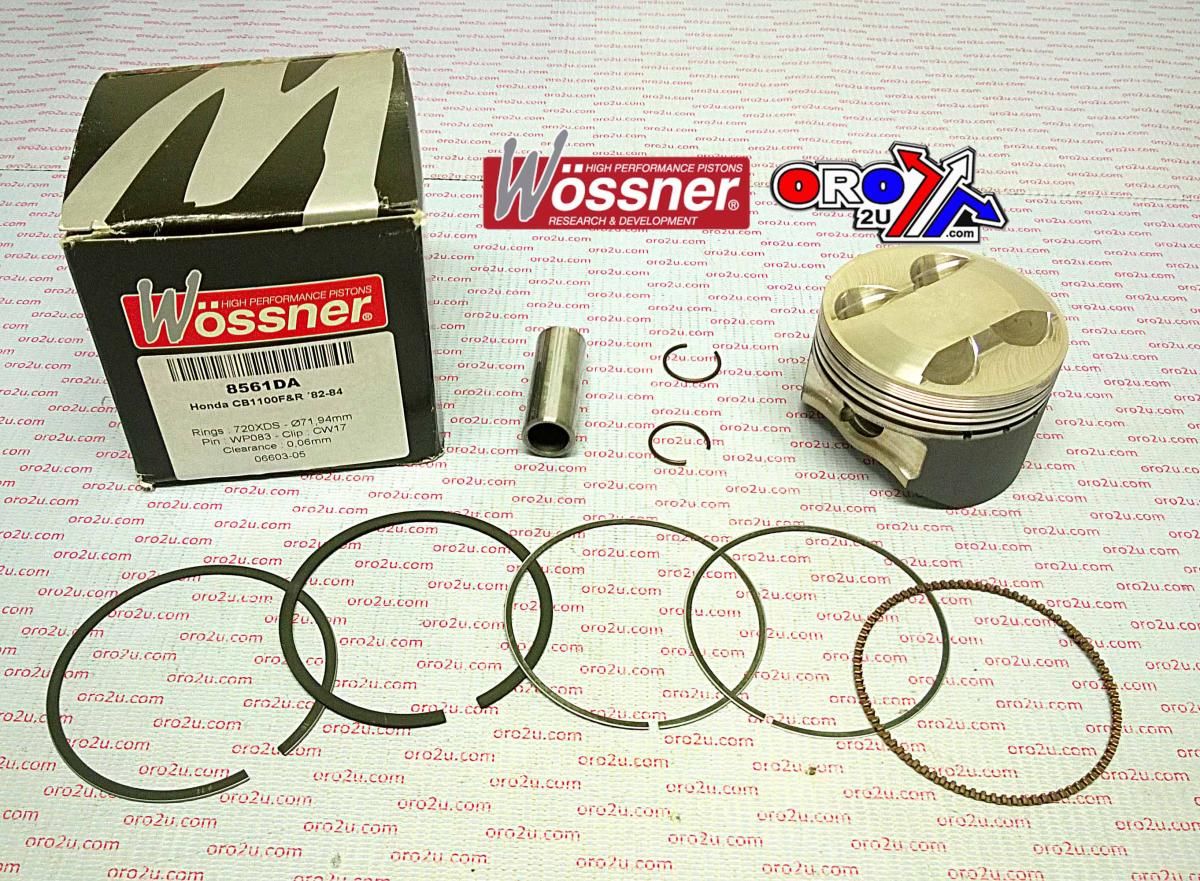

PISTON KIT 82-84 CB1100 HONDA, WOSSNER K8561D200-4ROAD
Piston Kit 72mm Bore 71.94 Wossner K8561D200-4 (+2.00)
HONDA
- CB1100F 1982 – 1984
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.
- Applications: Honda 1982 – 1984 CB1100F, CB1100R
- Piston Model: K8561D200-4 Wossner Piston, 72mm
- Stroke: 69mm
- OEM Compression Ratio: 9.7:1
- Dome Volume: +3.7cm
- Compression Height: 25.40mm
Specifications:
- Lock P/N: CW17
- Pin P/N: WP083
- Ring Set P/N: 720XDS
- Display (cm3): 1123
- Hub stroke (mm): 69.00
- Clearance (mm): 0.06
- Wossner Compression Ratio: 10.00:1
- OEM Compression Ratio: 9.70:1
- Dome volume (cm3): +3.70
- Compression height (mm): 25.40
- Theoretical weight (G):
