| Size | 56mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 56.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

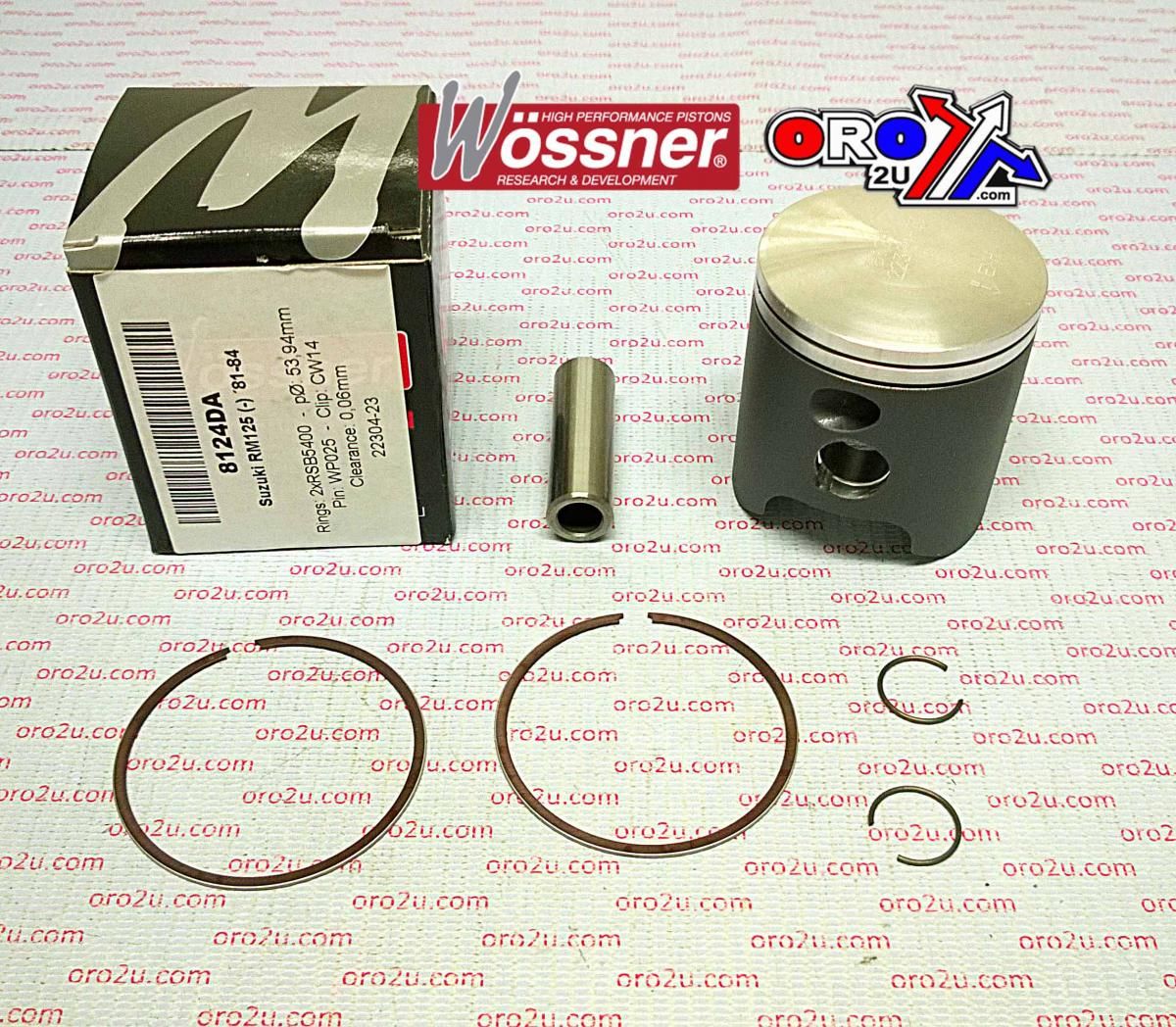

PISTON KIT 81-84 RM125 56.00, WOSSNER 8124D200 SUZUKI
This Wossner forged piston kit with a 56.00mm bore (55.94mm) is intended for Suzuki RM125 models from 1981 to 1984. Precision-engineered in Germany, the piston enhances structural durability and thermal conductivity. The elliptical shape ensures uniform pressure distribution during heat expansion, helping prevent piston collapse under performance conditions.
Features
-
Forged piston construction for maximum strength and reliability
-
Optimized for effective combustion heat dissipation to cylinder walls
-
Elliptical design for consistent bearing surface and reduced localized pressure
-
Manufactured in Germany
Specifications
-
Bore size: 56.00mm (55.94mm)
-
Display volume: 123 cm³
-
Stroke: 54.00 mm
-
Clearance: 0.06 mm
-
Compression height: 29.50 mm
-
Theoretical weight: Not specified
-
Compression ratio: 2-stroke (Wossner and OEM)
Cross-Reference OEM Part Numbers
-
Piston: 8124D200
-
Lock: CW14
-
Pin: WP025
-
Ring Set: RSB5600 x 2
-
Connecting Rod Kit: P2040
Vehicle Fitments
-
Suzuki RM125 1981
-
Suzuki RM125 1982
-
Suzuki RM125 1983
-
Suzuki RM125 1984
