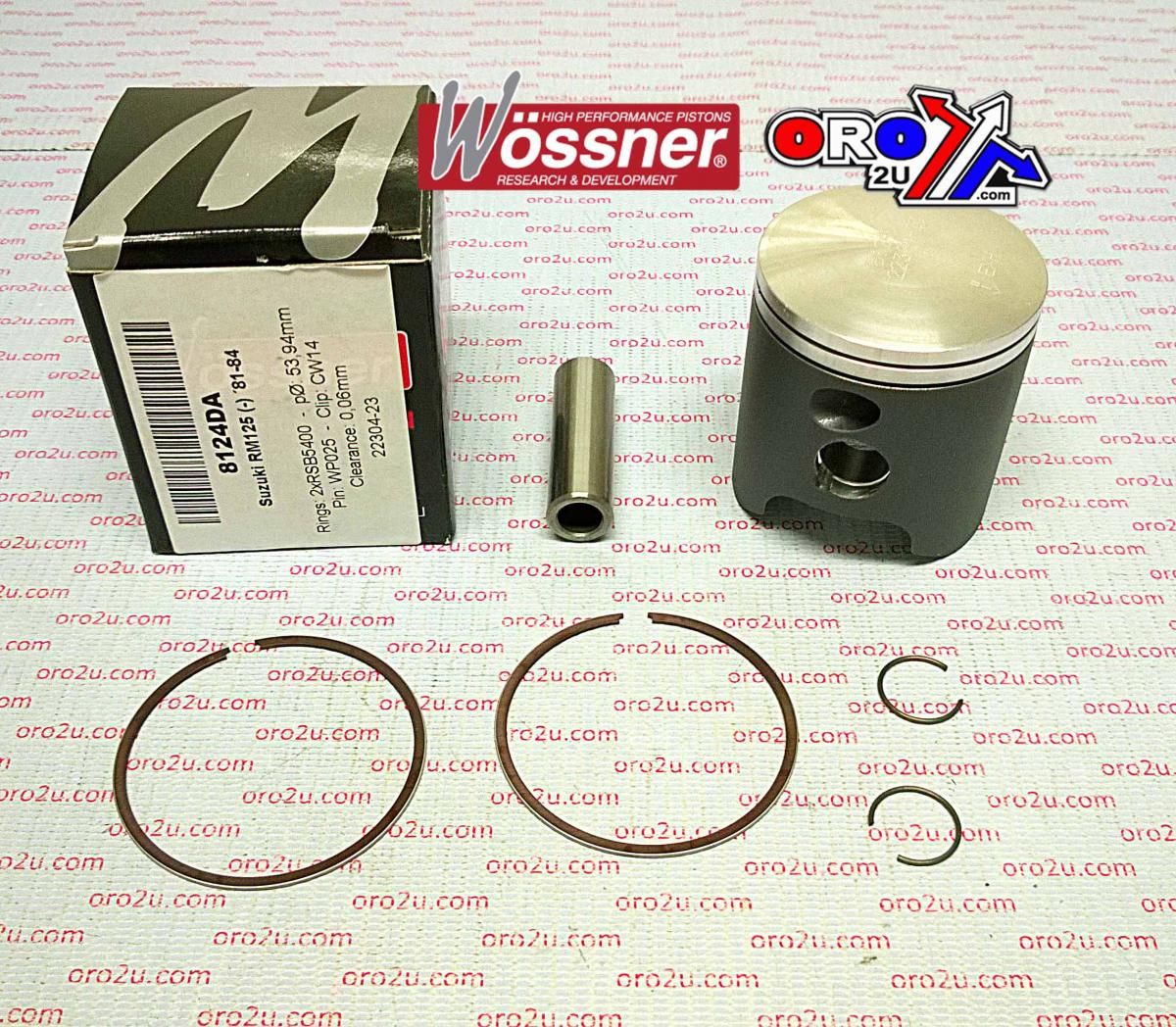

PISTON KIT 81-84 RM125 55.50, WOSSNER 8124D150 SUZUKI

Piston Kit 55.50mm Bore 55.44 WOSSNER 8124D150 (+1.50)

SUZUKI
RM125 1981 – 1984,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W511+150.WO (oro2u.com)
Lock P/N CW14
Pin P/N WP025
Ring Set P/N RSB5550 X2
Connecting Rod kit P/N P2040

Display (cm3) 123
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
