| Size | 42.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 42.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

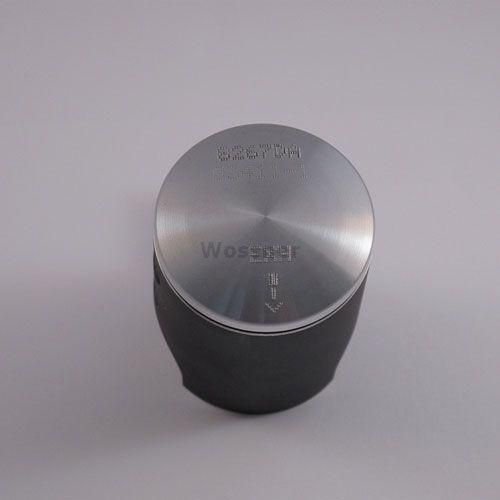

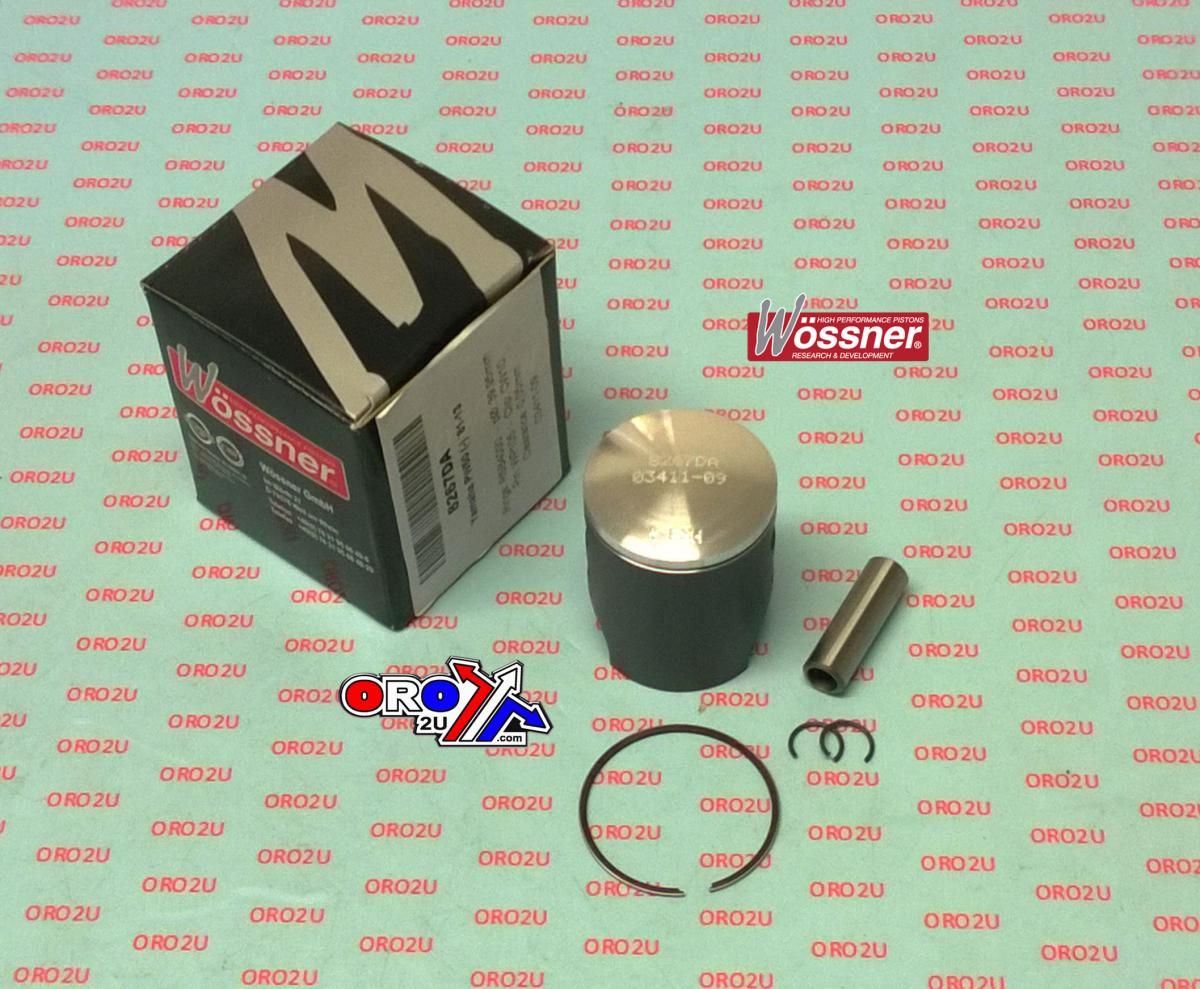

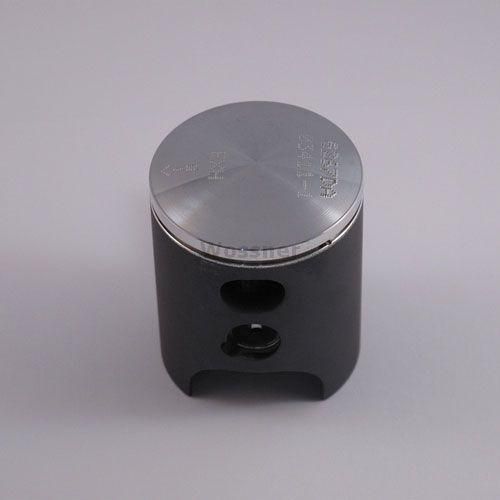

PISTON KIT 81-19 PW50 42.00, 8267D200 WOSSNER YAMAHA
This Wossner forged piston kit is a +2.00mm oversize replacement specifically designed for Yamaha PW50 models from 1981 to 1995. Ideal for engines requiring a substantial overbore, this kit delivers reliable performance and superior strength in two-stroke applications.
Features
-
Forged piston construction ensures maximum strength and longevity
-
Elliptical design provides a consistent bearing surface during thermal expansion
-
Optimised for efficient heat transfer from the combustion chamber to cylinder walls
-
Reduces risk of piston collapse by evenly distributing thrust loads
-
Manufactured in Germany
Specifications
-
Bore Size: 42.00mm
-
Actual Piston Size: 41.95mm
-
Stroke: 39.20mm
-
Piston Clearance: 0.05mm
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
-
Compression Height: 24.90mm
-
Lock Part Number: CW10
-
Pin Part Number: WP105
-
Ring Set Part Number: RSB4200
Cross-Reference OEM Part Numbers
-
Part No: 8267D200
Vehicle Fitments
-
Yamaha PW50 (1981–1995)
