| Size | 41.50mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 41.5 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

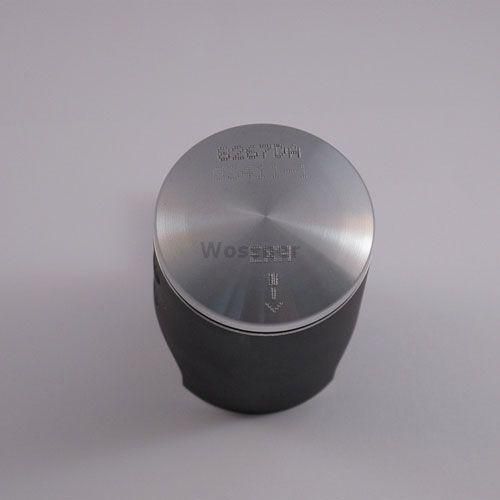

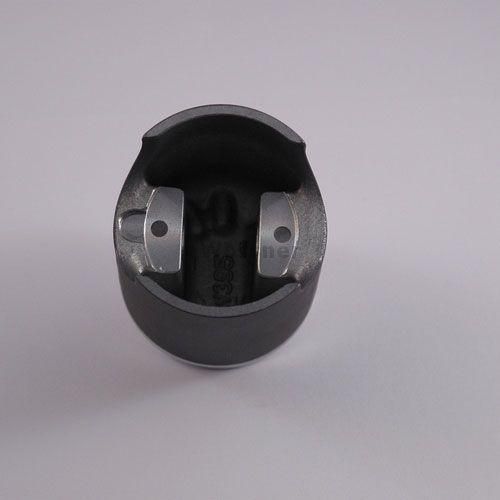

PISTON KIT 81-19 PW50 41.50, 8267D150 WOSSNER YAMAHA
This Wossner forged piston kit is a +1.50mm oversize replacement for Yamaha PW50 models from 1981 to 1995. Precision-built in Germany, it is ideal for engines requiring a significant overbore while maintaining durability and performance in small-displacement two-stroke applications.
Features
-
Forged piston construction for enhanced strength and longevity
-
Elliptical design ensures a consistent bearing surface during heat expansion
-
Optimised for efficient heat dissipation from the combustion chamber to cylinder walls
-
Evenly distributes thrust loads to reduce the risk of piston collapse
-
Manufactured in Germany
Specifications
-
Bore Size: 41.50mm
-
Actual Piston Size: 41.45mm
-
Stroke: 39.20mm
-
Piston Clearance: 0.05mm
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
-
Compression Height: 24.90mm
-
Lock Part Number: CW10
-
Pin Part Number: WP105
-
Ring Set Part Number: RSB4150
Cross-Reference OEM Part Numbers
-
Part No: 8267D150
Vehicle Fitments
-
Yamaha PW50 (1981–1995)
