PISTON KIT 80-84 KDX250 70.50, FORGED WOSSNER 8203D050, KAWASAKI KX250 78-81
£144.47
Brand: Wossner
Out of Stock
| Size | 70.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | ROAD |
| Piston Diameter | 70.50 |
PISTON KIT 80-84 KDX250 70.50, FORGED WOSSNER 8203D050, KAWASAKI KX250 78-81

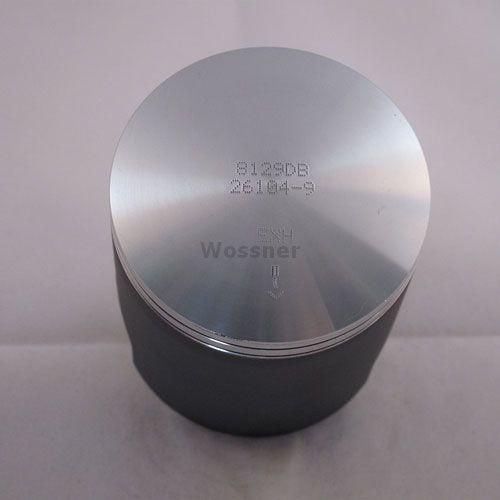

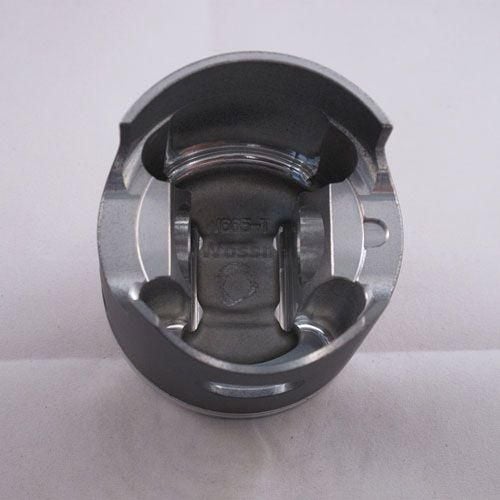

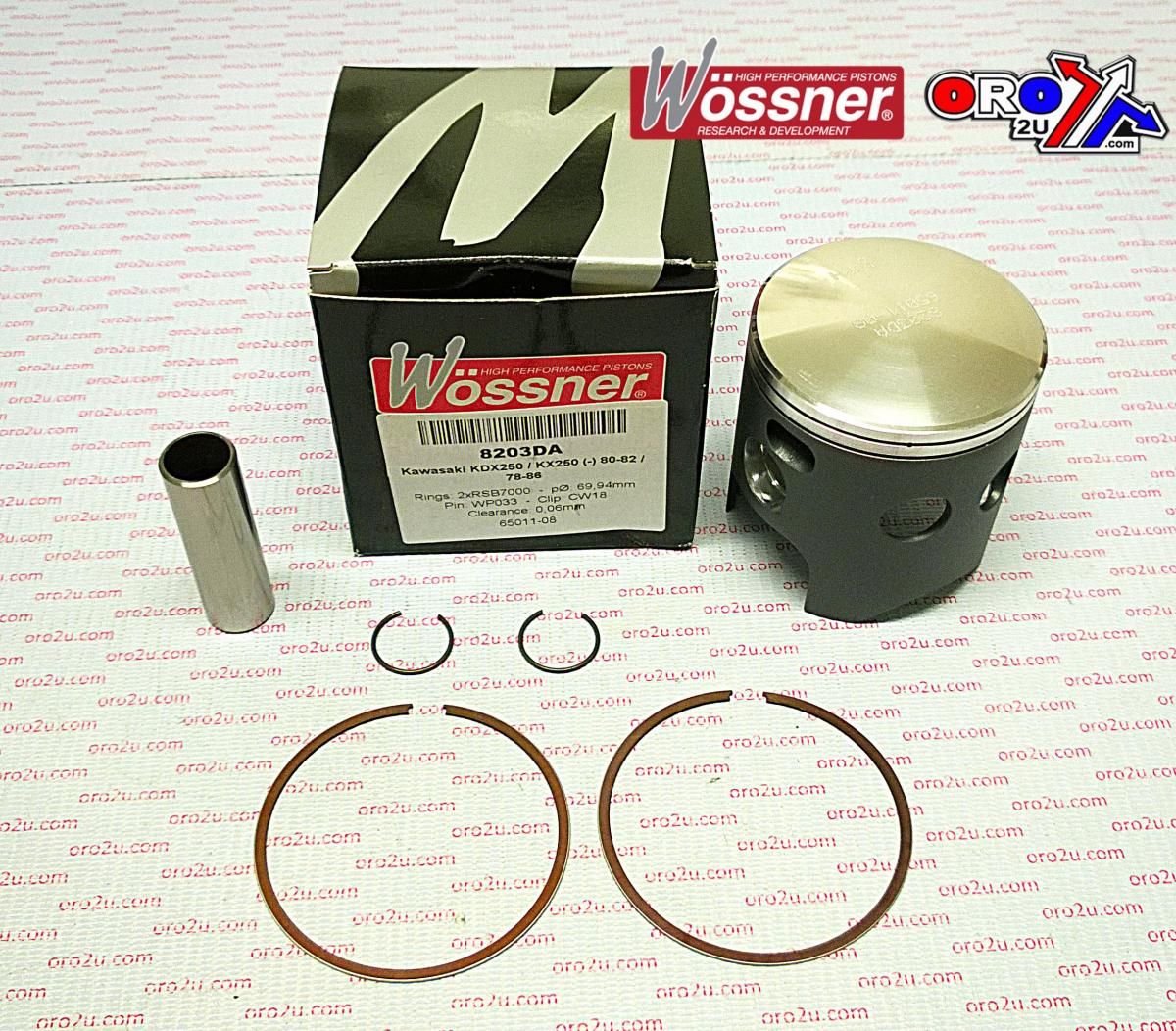

Wossner forged piston kit designed for Kawasaki KDX250 (1980-1982) and KX250 (1978-1986) models. Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.
Features
- Forged piston for increased strength and durability
- Optimized heat transfer for efficient combustion chamber performance
- Elliptical design for even thrust load distribution and reduced piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 70.05mm
- Actual Bore Diameter: 70.44mm
- Displacement: 249 cm³
- Stroke: 64.90mm
- Clearance: 0.06mm
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
- Compression Height: 31.50mm
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB7050 x 2
Vehicle Fitments
- Kawasaki KDX250 (1980-1982)
- Kawasaki KX250 (1978-1986)
