| Size | 49.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Alternate SKU's | 13102-169-000 |
| Piston Diameter | 49.5 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

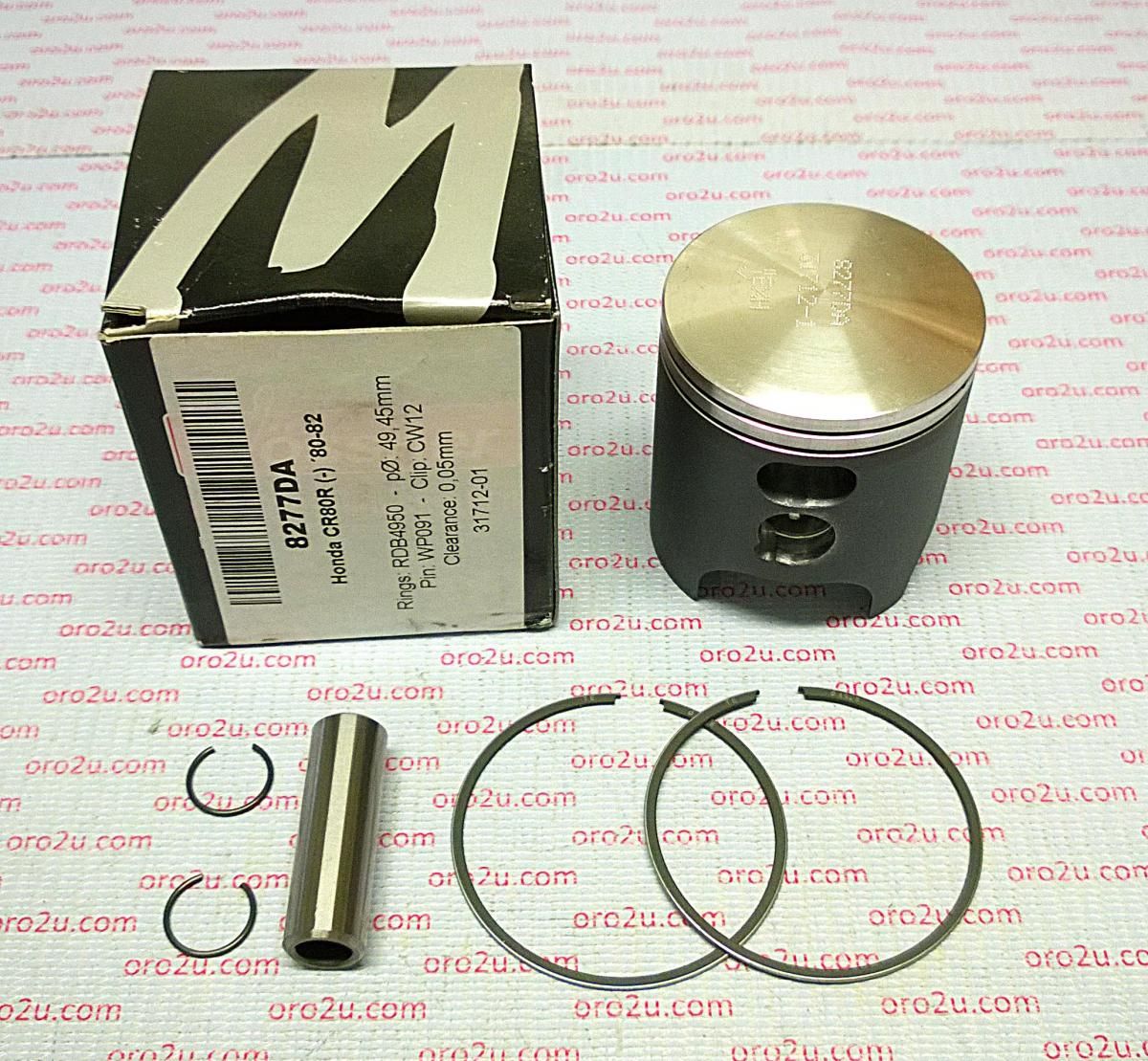

PISTON KIT 80-82 CR80 49.50, WOSSNER 8277DA HONDA MX 13102-169-000
Wossner forged piston kit designed for Honda CR80R models from 1980 to 1982. Manufactured in Germany, this piston offers superior strength and heat transfer efficiency. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse.
Features
- Forged construction for enhanced durability and strength
- Optimized heat transfer for improved performance
- Elliptical design for uniform bearing surface and reduced wear
- Designed for 2-stroke engines
Specifications
- Bore Size: 49.50 mm
- Actual Bore: 49.45 mm
- Stroke: 41.40 mm
- Clearance: 0.05 mm
- Compression Height: 27.00 mm
- Compression Ratio: 2-stroke
- Displacement: 79 cm³
- Made in Germany
Cross-Reference OEM Part Numbers
- Wossner Part No.: 8277DA
- Lock P/N: CW12
- Pin P/N: WP091
- Ring Set P/N: RSB4950 x 2
- Other Reference Numbers: 13102-169-000, 450M05000
Vehicle Fitments
- Honda CR80R (1980-1982)
