| Size | 66mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 66.00 |

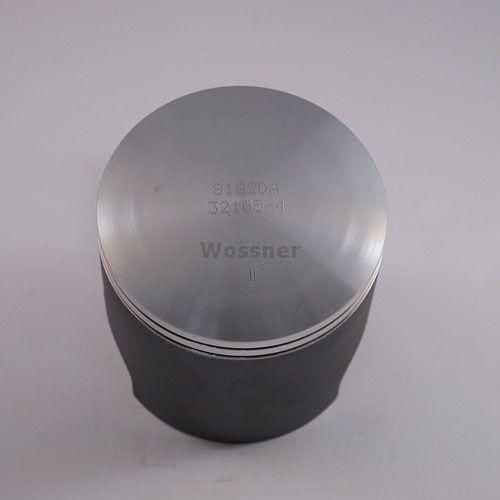

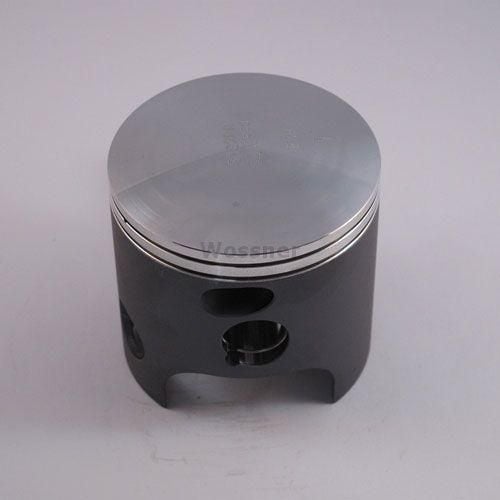

PISTON KIT 79-81 DT175 66.00, FORGED WOSSNER 8182DA
Wossner forged piston kit with a 66.00mm bore and 65.94mm diameter, designed for Yamaha 175 CT-2, CT, DT, and MX models. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Features
- Forged construction for superior strength
- Optimized heat transfer for efficient combustion
- Elliptical design for uniform load distribution
- Manufactured in Germany
Specifications
- Bore: 66.00mm
- Diameter: 65.94mm
- Display (cm³): 172
- Stroke (mm): 50.00
- Clearance (mm): 0.06
- Wossner Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Compression Height (mm): 30.00
Cross-Reference OEM Part Numbers
- Wossner Piston Yamaha DT175 MX, CT-2 (PN# 8182DA)
- Lock P/N: CW16
- Pin P/N: WP027
- Ring Set P/N: RSB6600
Vehicle Fitments
- Yamaha 175 CT-2 (1977)
- Yamaha 175 CT (1977)
- Yamaha 175 DT (1979-1981)
- Yamaha 175 MX (1979-1982)
