PISTON KIT 78-80 CR250 72.00, FORGED WOSSNER 8154D200, HONDA ATC250R 81-84
£133.20
Brand: Wossner
Out of Stock
| Size | 72mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | ATV, DIRT |
| Piston Diameter | 72.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

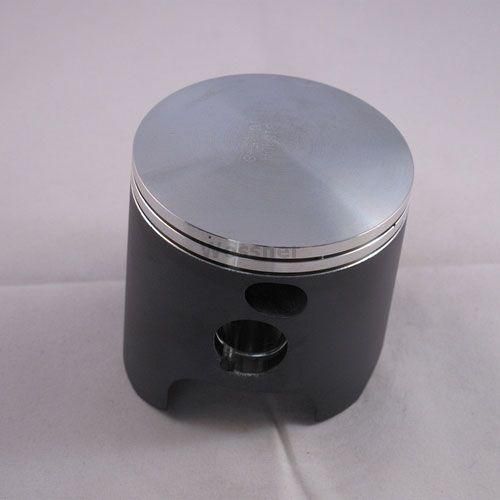

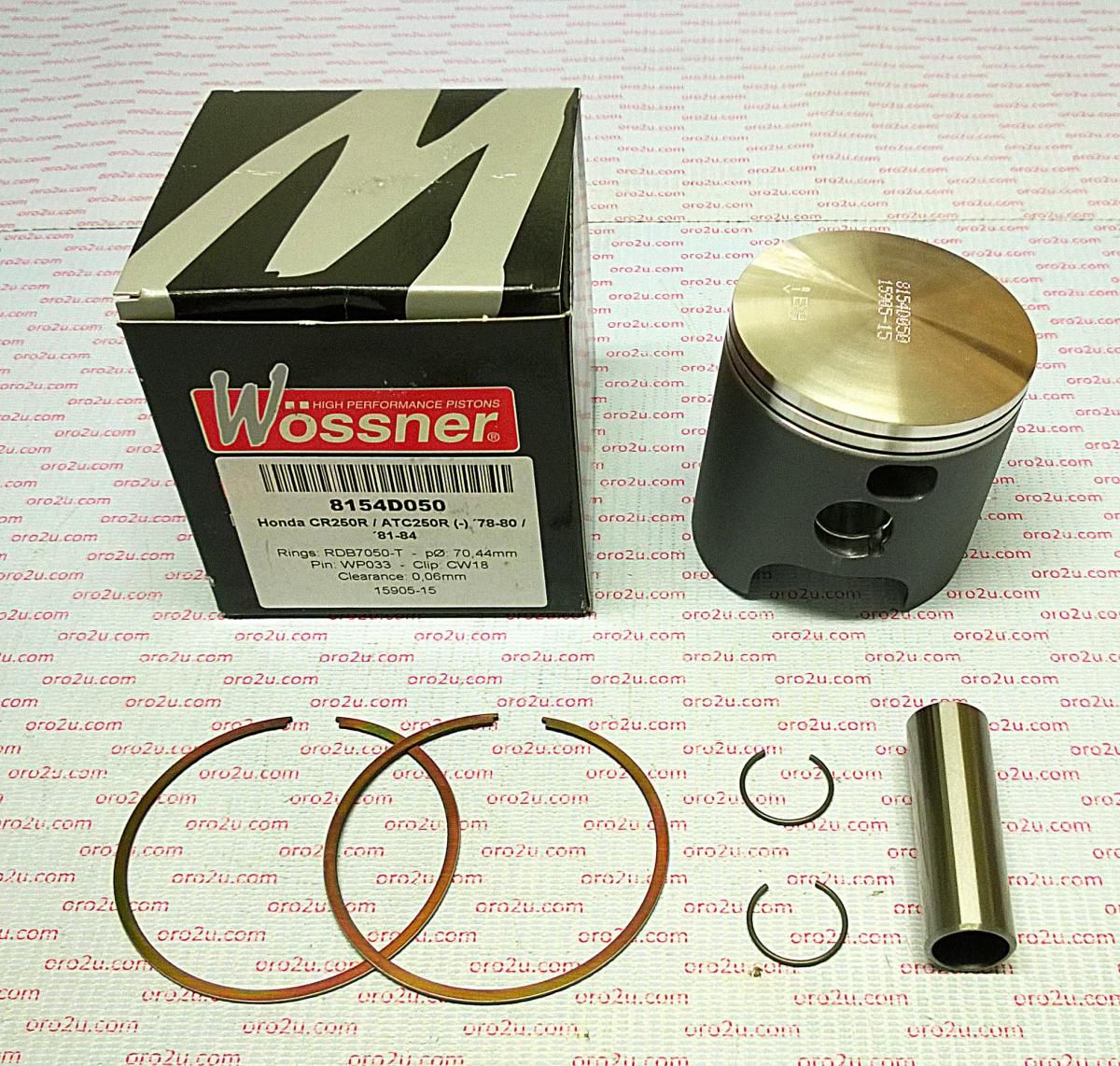

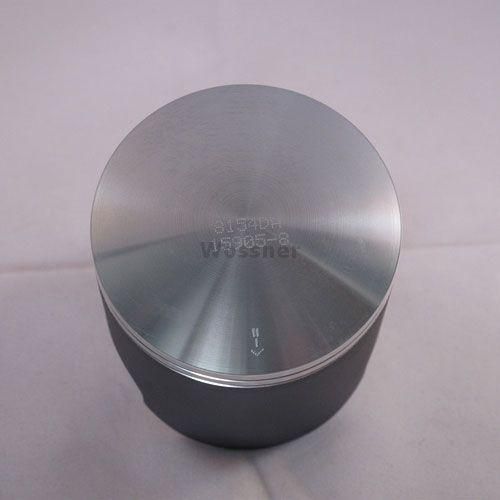

PISTON KIT 78-80 CR250 72.00, FORGED WOSSNER 8154D200, HONDA ATC250R 81-84
Wossner forged piston kit designed for Honda CR250R (1978-1980) and Honda ATC250R (1981-1984) models. Manufactured in Germany, this piston offers superior strength and heat transfer efficiency. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse.
Features
- Forged construction for enhanced durability and strength
- Optimized heat transfer for improved performance
- Elliptical design for uniform bearing surface and reduced wear
- Designed for 2-stroke engines
Specifications
- Bore Size: 72.00 mm
- Actual Bore: 71.94 mm
- Stroke: 64.40 mm
- Clearance: 0.06 mm
- Compression Height: 32.50 mm
- Compression Ratio: 2-stroke
- Displacement: 123 cm³
- Made in Germany
Cross-Reference OEM Part Numbers
- Wossner Part No.: 8154D200
- Lock P/N: CW18
- Pin P/N: WP033
- Ring Set P/N: RSB7200 x 2
Vehicle Fitments
- Honda CR250R (1978-1980)
- Honda ATC250R (1981-1984)
