| Size | 72mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 72.00 |

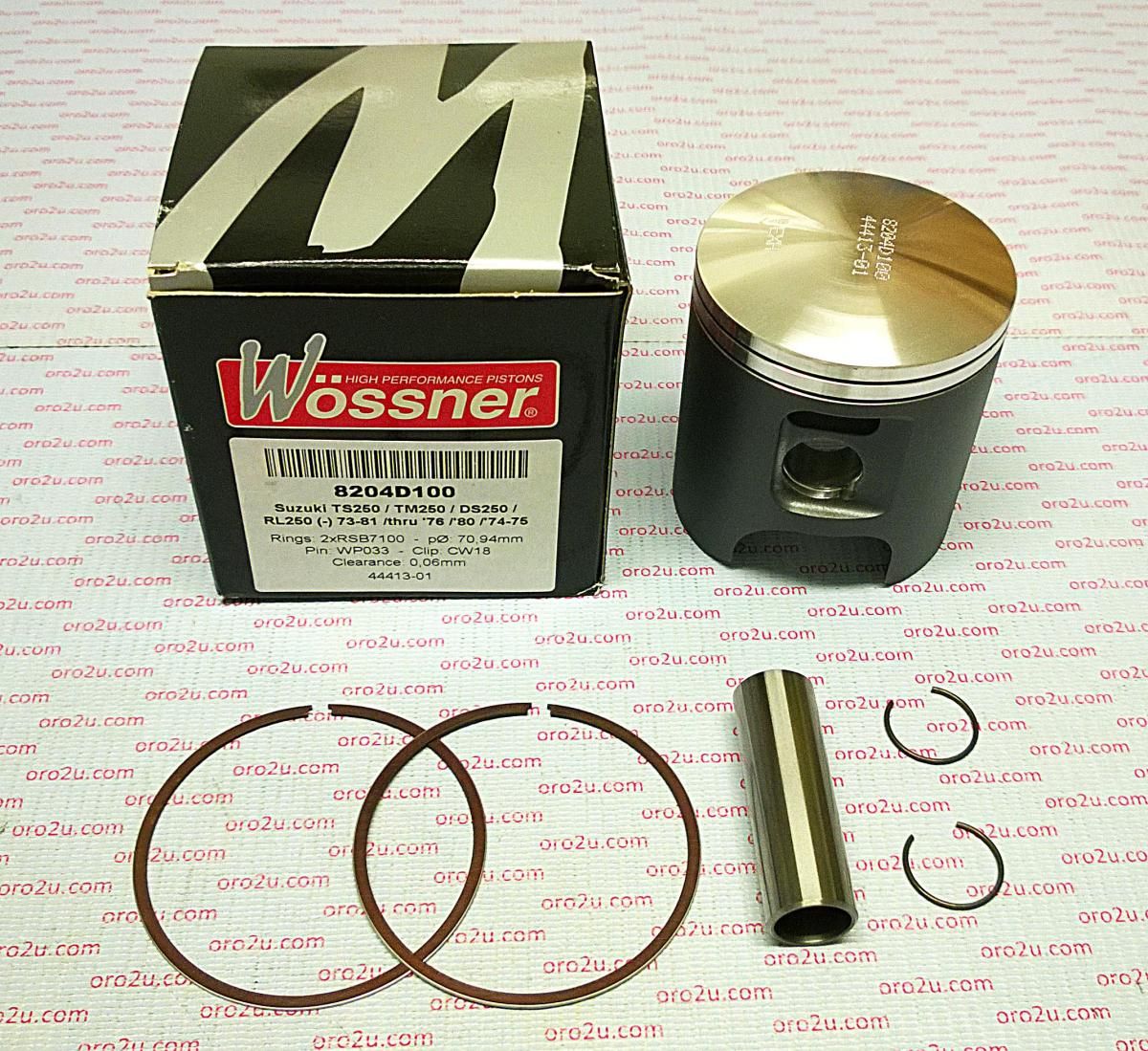

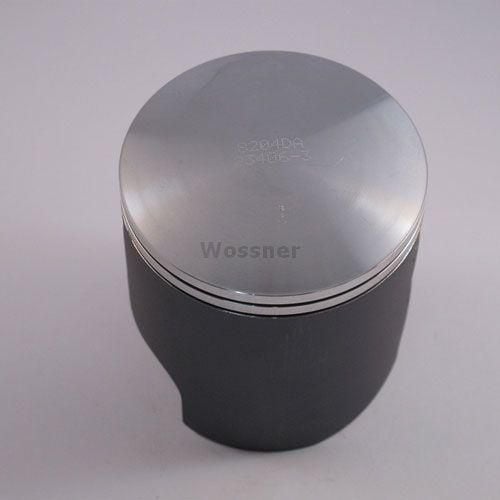

PISTON KIT 73-81 TS250 72.00, FORGED WOSSNER 8204D200
Piston Kit 72.00mm Bore 71.94 Wossner 8204D200 (+2.00)
SUZUKI
TS250 1973-1981,
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W249.200.WO (oro2u.com)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7200 x 2
Display (cm3) 249
Hub stroke (mm) 64.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 34.00
Theorectical weight (G)
