| Size | 83.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 83.0 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

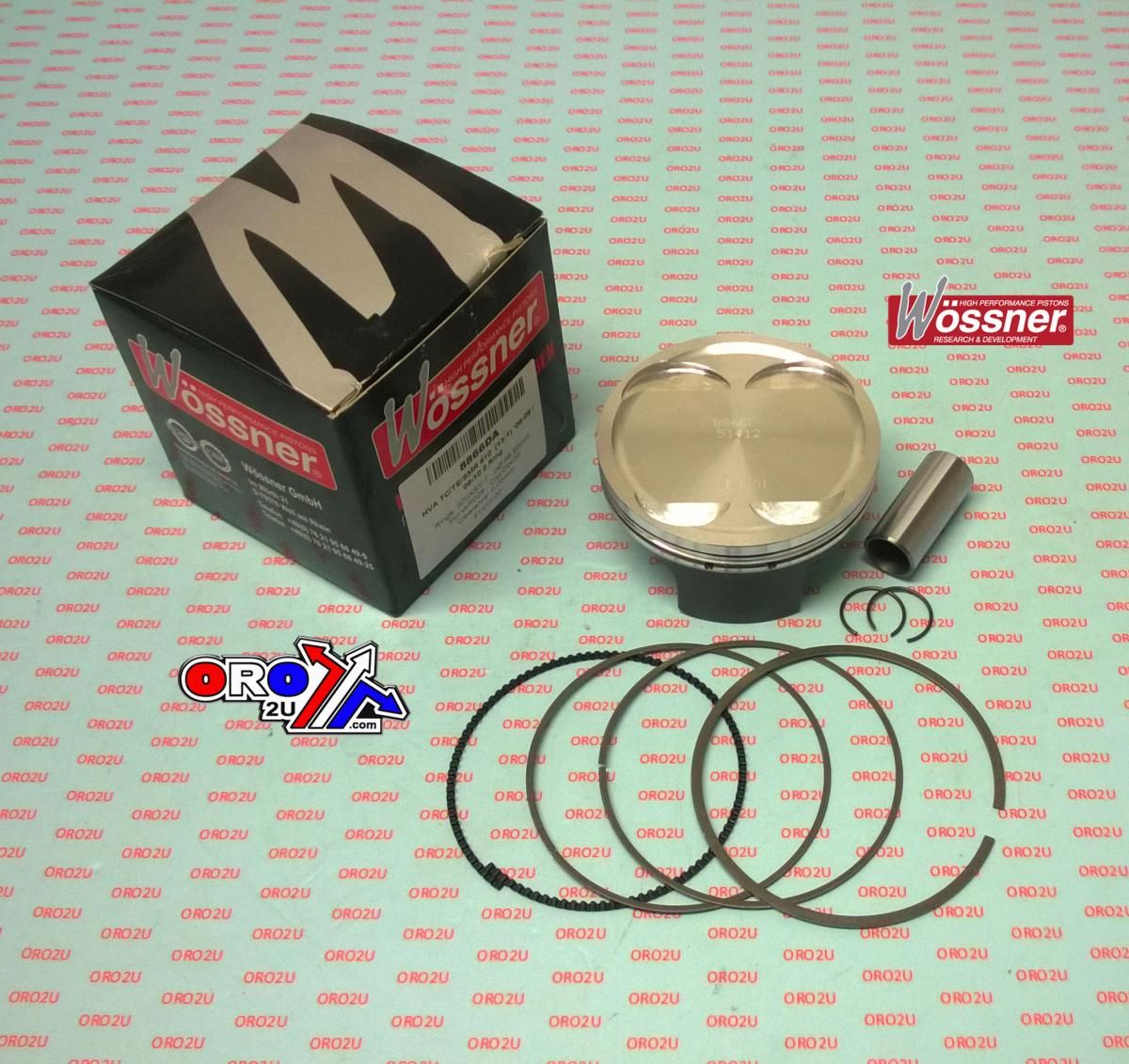

PISTON KIT 6-10 TE TC510 83.00, HUSQVARNA WOSSNER 8866DB
This Wossner forged piston kit features a 97.01mm bore size (96.96mm actual), offering a +0.01mm oversize option for Husqvarna 510 models. Designed for engines requiring high thermal and mechanical performance, the piston includes a two-ring configuration and an elliptical profile that distributes thrust loads evenly to prevent piston failure under stress. Made in Germany, it ensures efficient heat transfer and consistent engine performance.
Features
-
Forged construction with two-ring setup for strength and reliability
-
Elliptical design promotes uniform load distribution during expansion
-
Designed for optimal combustion heat transfer to cylinder walls
-
Manufactured in Germany
Specifications
-
Bore Size: 97.01mm (actual 96.96mm)
-
Displacement: 501 cm³
-
Stroke: 67.80 mm
-
Clearance: 0.05 mm
-
Compression Ratio (Wossner): 13.00:1
-
Compression Ratio (OEM): 12.90:1
-
Dome Volume: -9.20 cm³
-
Compression Height: 24.80 mm
-
Lock Part Number: CW20
-
Pin Part Number: WP029
-
Ring Set Part Number: 970XSY
Cross-Reference OEM Part Numbers
-
56-W152.WO.B
Vehicle Fitments
-
Husqvarna TC510 (2006–2009)
-
Husqvarna TE510 (2008–2010)
-
Husqvarna SMR510 (2008–2010)
