PISTON KIT/3 750 TRIPLE 71.00, WOSSNER K8248DA-3 1972-75

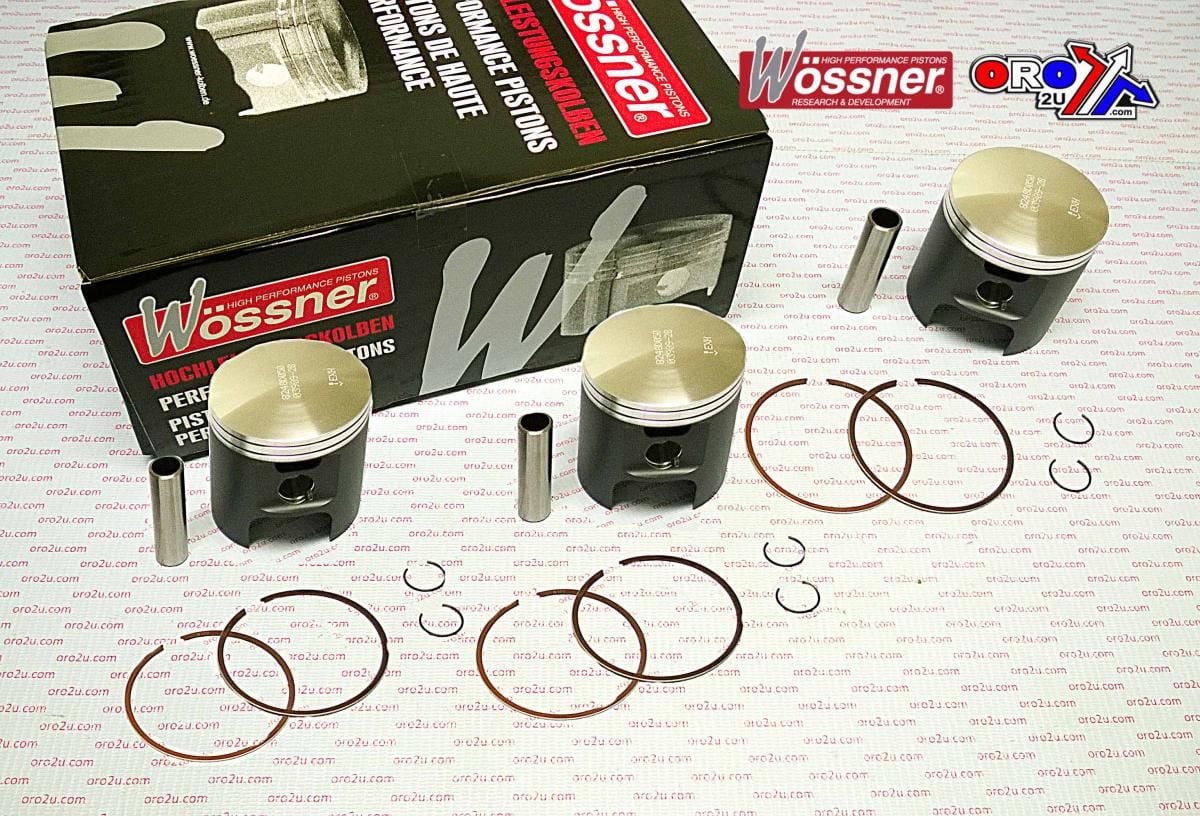

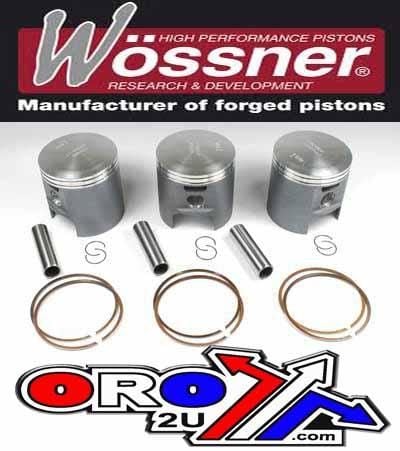

The Wossner K8248DA-3 piston kit is a standard-size forged piston set engineered for Kawasaki 750cc triple-cylinder two-stroke motorcycles produced from 1972 to 1975. Featuring a 71.00mm bore and built from high-strength materials, this kit ensures superior heat transfer and structural reliability. Manufactured in Germany, the set includes three pistons and all necessary installation components.

Features

• Forged high-performance pistons with PTFE-coated skirts

• Elliptical design provides even heat expansion and load distribution

• Polished crown surfaces to resist detonation

• Made from 4032 T6 alloy for tighter piston-to-bore tolerances

• Includes piston pins, clips, and rings

Specifications

• Bore size: 71.00mm (Standard)

• Measured bore: 70.93mm

• Display displacement: 747 cm³

• Stroke: 63.00mm

• Clearance: 0.07mm

• Compression height: 32.00mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Quantity: 3 pistons per kit

• Made in Germany

Cross-Reference OEM Part Numbers

• Part No. 56-W9868.000.WO

• Clip: CW16

• Piston Pin: WP027

• Ring Set: RSB7100 x 2 per piston

Vehicle Fitments

• Kawasaki 750 Mach IV 1972–1975

• Kawasaki H2 750 Triple Cylinder 1972–1975
