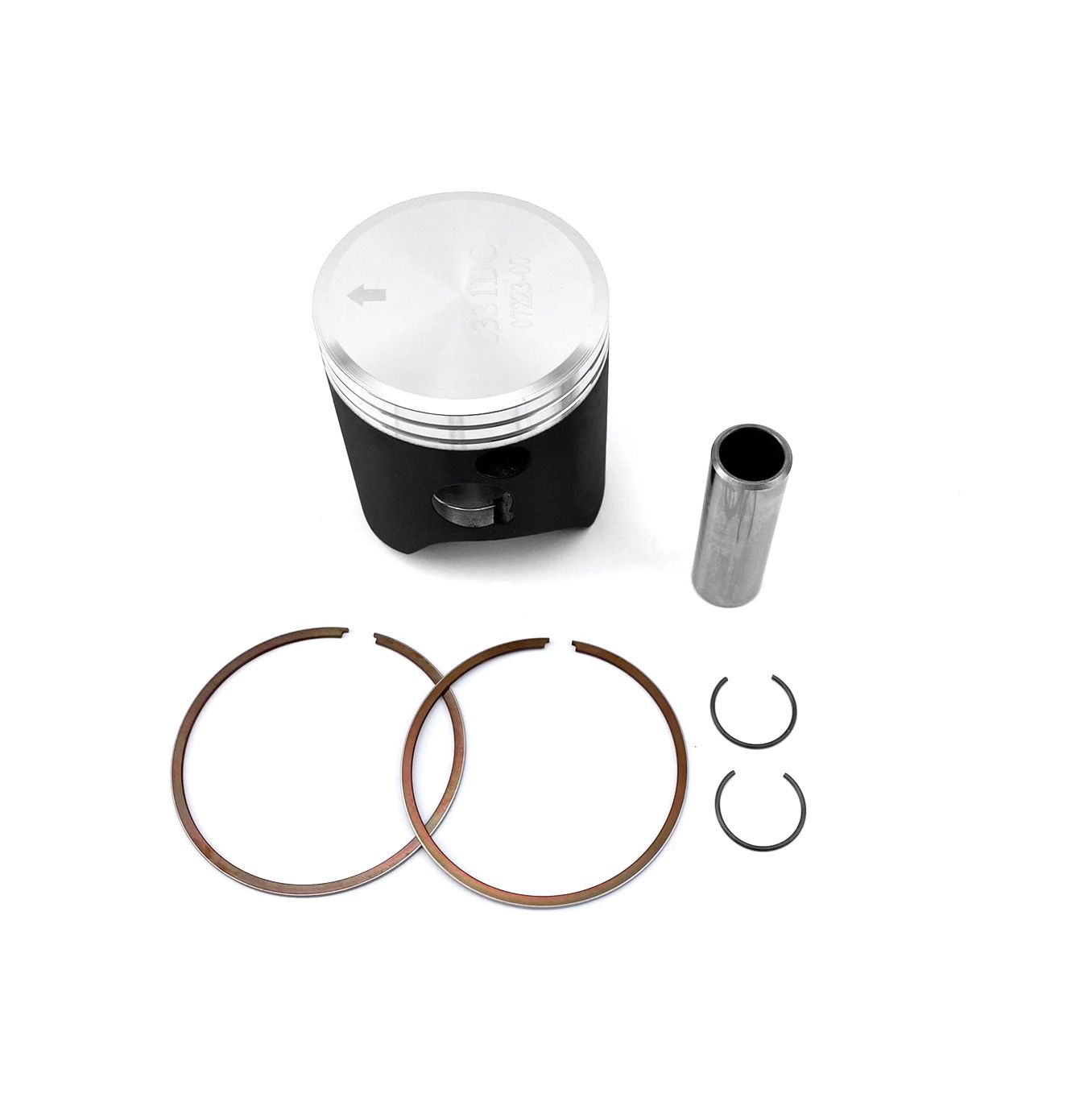

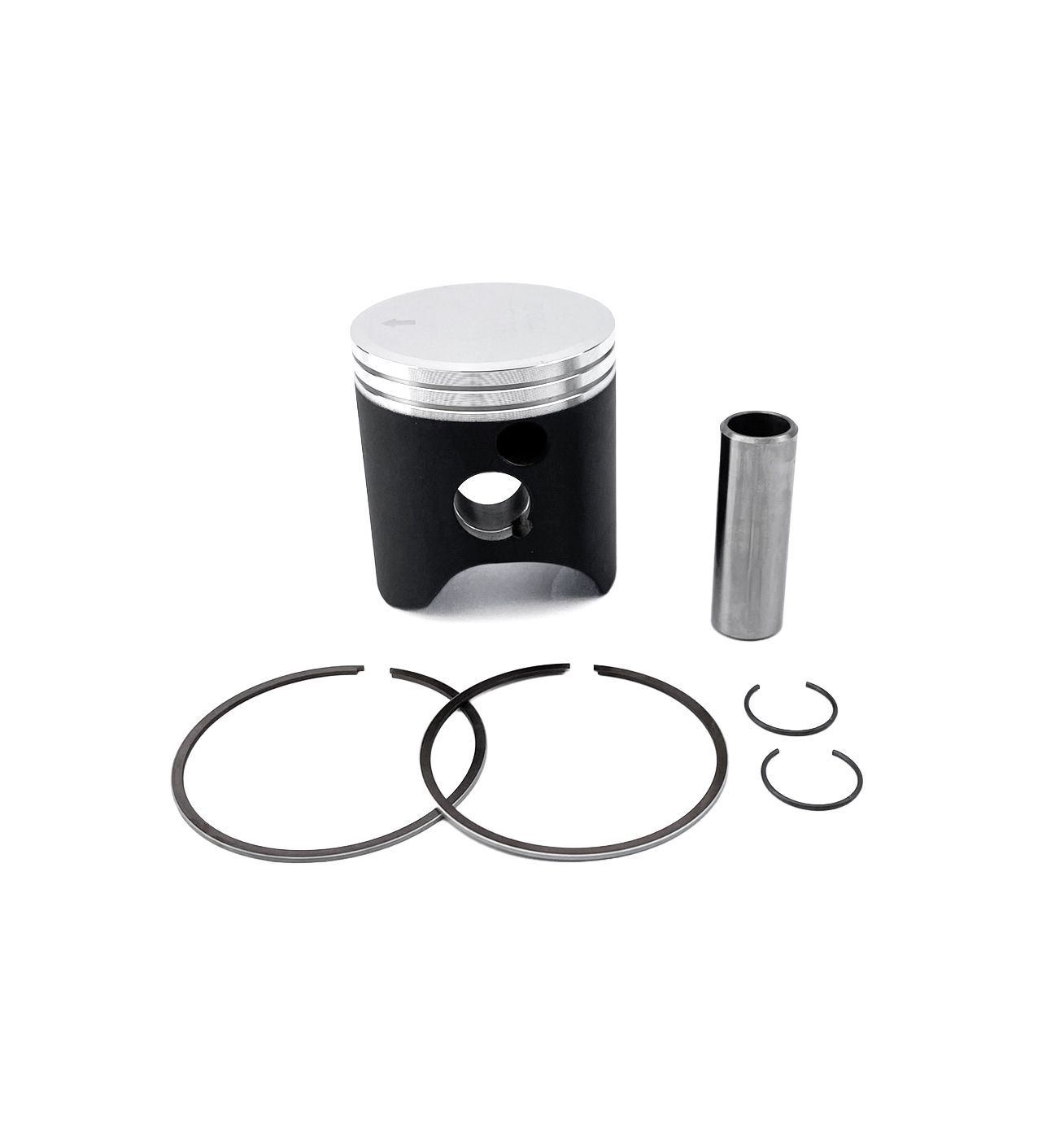

PISTON KIT 2022 – 2023 YZ 125, WOSSNER 8331DB

PISTON KIT  54.00mm BORE 53.96mm WOSSNER 8331DB (STD)

YAMAHA
YZ 125 2022 – 2023

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W899.B.WO  (oro2u.com)

WOSSNER 8331DB PISTON KIT 54.00mm
B GRADE PISTON KIT 53.96mm
COMPRESSION HEIGHT 28.00mm
STROKE 54.5mm

Cross reference numbers
RING SET 2 X RSB5400
CLIPS. CW15
PIN. WP032
