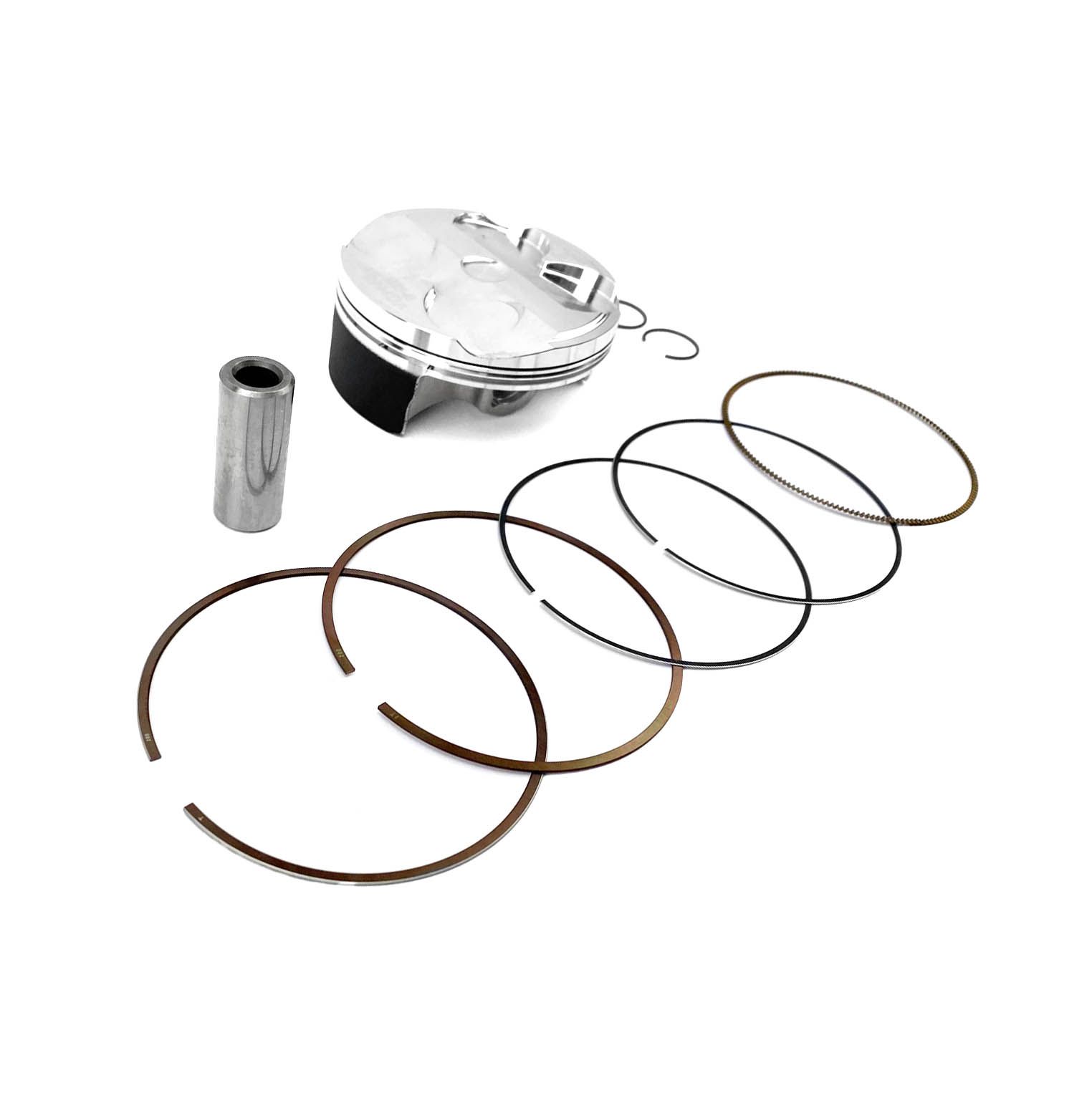

PISTON KIT 2021-22 KX250F 77.96mm, HIGH COMPRESSION WOSSNER 8994DA, Kawasaki

High Compression Piston kit 78mm Bore 77.96 Wossner 8994DA (STD)

KAWASAKI
KX 250F 2021 – 2022
KX 250 XC 2021 – 2022

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W8820.A.WO.HC  (oro2u.com)

WOSSNER 8994DA PISTON KIT 78.00mm
A GRADE PISTON KIT 77.96mm
COMPRESSION RATIO 14.5:1
COMPRESSION HEIGHT 20.18mm
STROKE 52.20

Cross reference numbers
RING SET. RIK78.00
CLIPS. CW16
PIN. WP070-SP
