PISTON KIT 1998 KX125 56.00, WOSSNER 8113D200 KAWASAKI MX

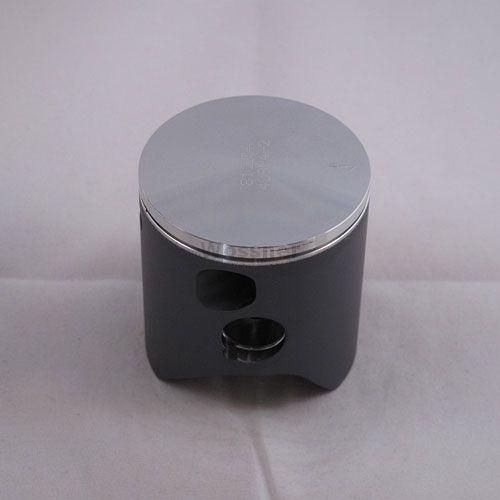

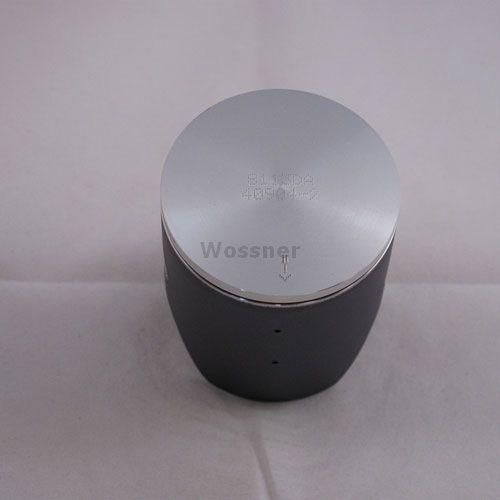

Wossner forged piston kit 8113D200 is a +2.00 oversize piston designed for the 1998 Kawasaki KX125. It features a 56.00 mm bore and 55.94 mm actual piston diameter, delivering reliable performance and durability in high-stress 2-stroke applications. Manufactured in Germany, this piston uses an elliptical design to improve load distribution and prevent deformation under heat expansion.

Features

• Forged construction for superior strength and wear resistance

• Elliptical profile minimises localised pressure and prevents piston collapse

• Optimised thermal conductivity to cylinder walls

• German precision engineering ensures reliable fit and performance

Specifications

• Bore Size: 56.00 mm

• Actual Piston Diameter: 55.94 mm

• Display (Displacement): 125 cm³

• Stroke: 54.50 mm

• Clearance: 0.06 mm

• Compression Ratio: 2-stroke (Wossner and OEM)

• Compression Height: 29.50 mm

Cross-Reference Component Part Numbers

• Piston Kit: 8113D200

• Lock: CW15

• Pin: WP032

• Ring Set: RSB5600

• Rod: P2034

Vehicle Fitments

• 1998 Kawasaki KX125
