| Size | 55.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 55.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

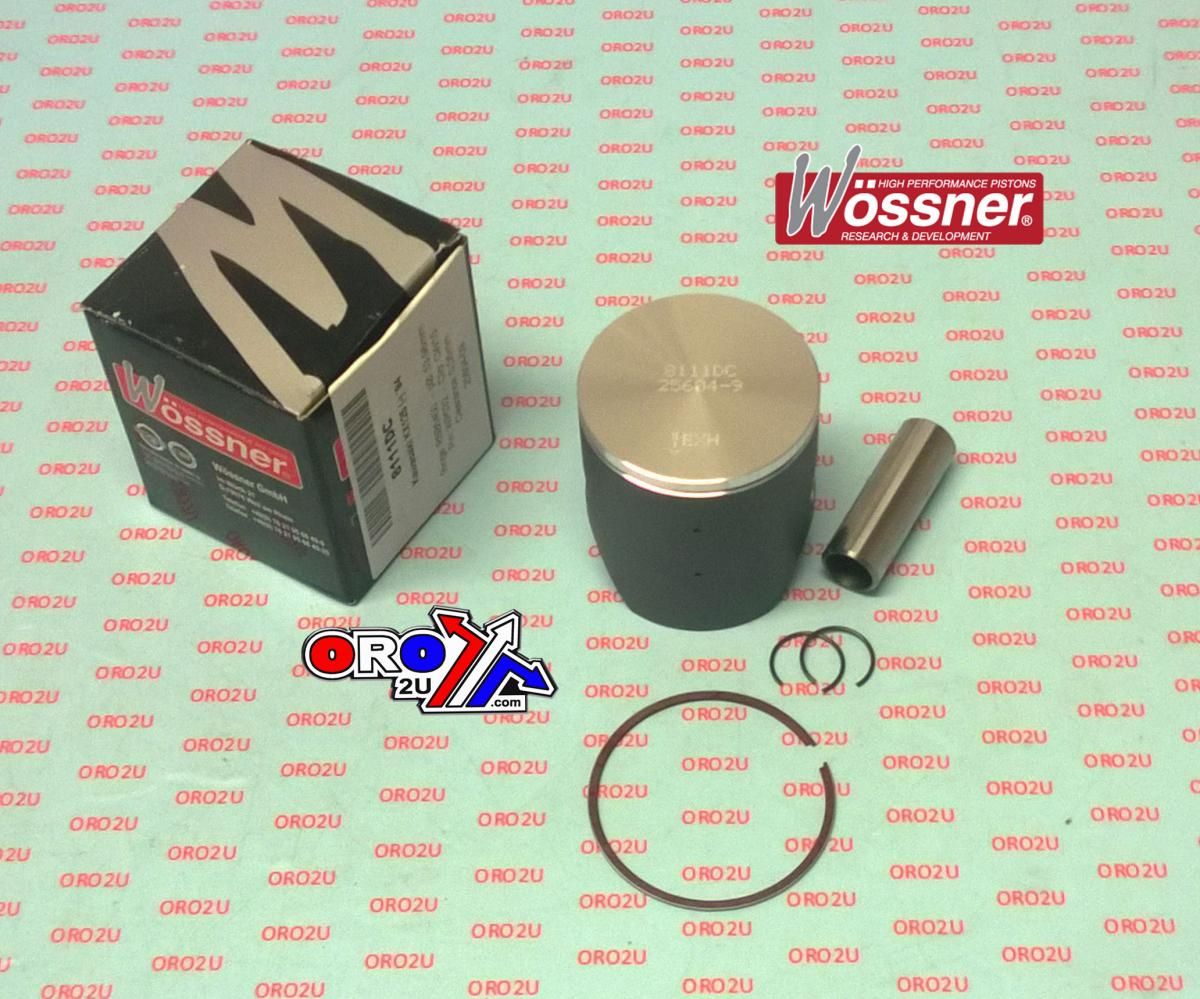

PISTON KIT 1994 KX125 55.00, WOSSNER 8111D100 KAWASAKI MX
KAWASAKI KX125 1994

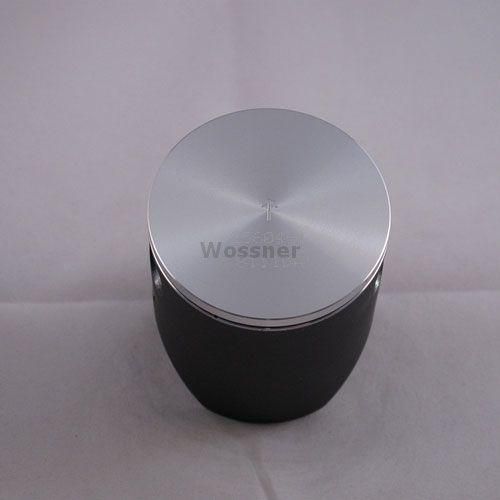

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.
- Wossner Piston Kawasaki KX125 (PN#): 8111D100
- Lock P/N: CW15
- Pin P/N: WP032
- Ring Set P/N: RSB5500
- Rod P/N: P2038
Specifications:
- Display (cm3): 125
- Hub Stroke (mm): 54.50
- Clearance (mm): 0.06
- Wossner Compression Ratio: 2 stroke
- OEM Compression Ratio: 2 stroke
- Dome Volume (cm3):
- Compression Height (mm): 29.50
- Theoretical Weight (G):
