PISTON KIT 1994 KX125 54.00, WOSSNER 8111DA KAWASAKI MX 13001-1396

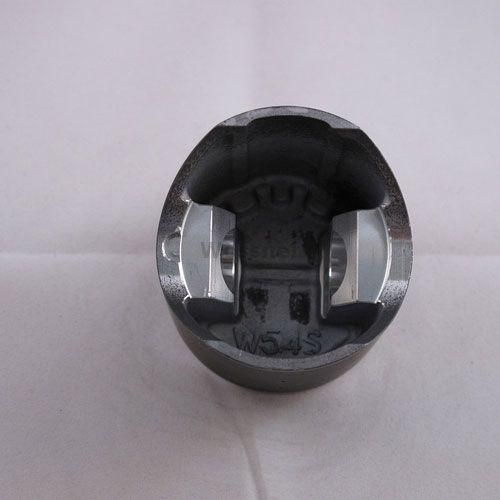

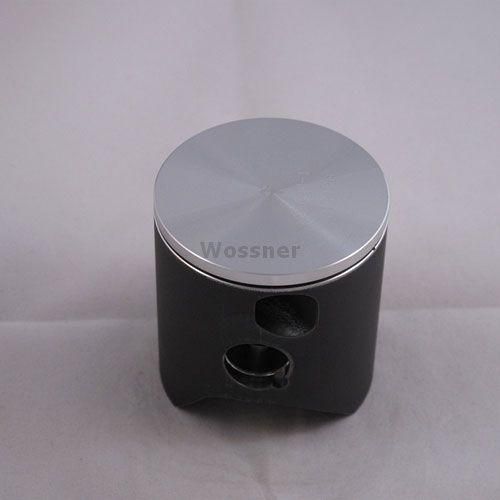

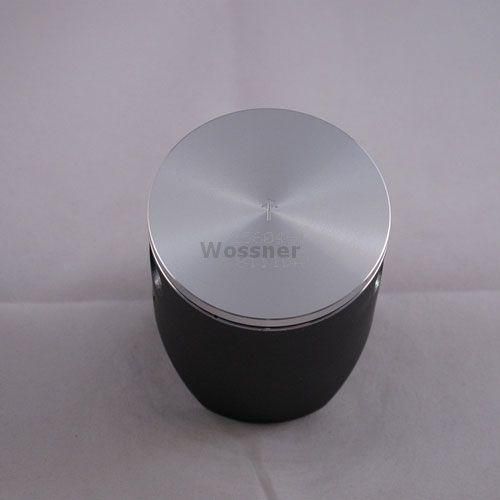

The Wossner 8111DA (STD) piston kit features a 54.00mm bore (actual 53.94mm) and is engineered for superior strength and efficient heat transfer to cylinder walls. The forged, elliptically designed piston ensures a uniform bearing surface during heat expansion, reducing localised pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany, this kit provides reliable engine performance and is specifically designed for the 1994 Kawasaki KX125.

Features

• Forged piston construction for maximum strength and durability

• Engineered to optimise combustion chamber heat transfer

• Elliptical design maintains uniform bearing surface under thermal expansion

• Reduces localised pressure and prevents piston collapse

• Made in Germany

Specifications

• Bore Size: 54.00mm (Actual 53.94mm)

• Display (cm³): 125

• Stroke (mm): 54.50

• Clearance (mm): 0.06

• Compression Ratio (Wossner 2-stroke): 2 stroke

• Compression Ratio (OEM 2-stroke): 2 stroke

• Compression Height (mm): 29.50

Cross-Reference OEM Part Numbers

• Wossner Piston Kit Part No: 8111DA

• Lock Part No: CW15

• Pin Part No: WP032

• Ring Set Part No: RSB5400

• Rod Part No: P2038

• OEM Part Numbers: 13001-1396, 640M05400

Vehicle Fitments

• 1994 Kawasaki KX125
