| Size | 58mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 58.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

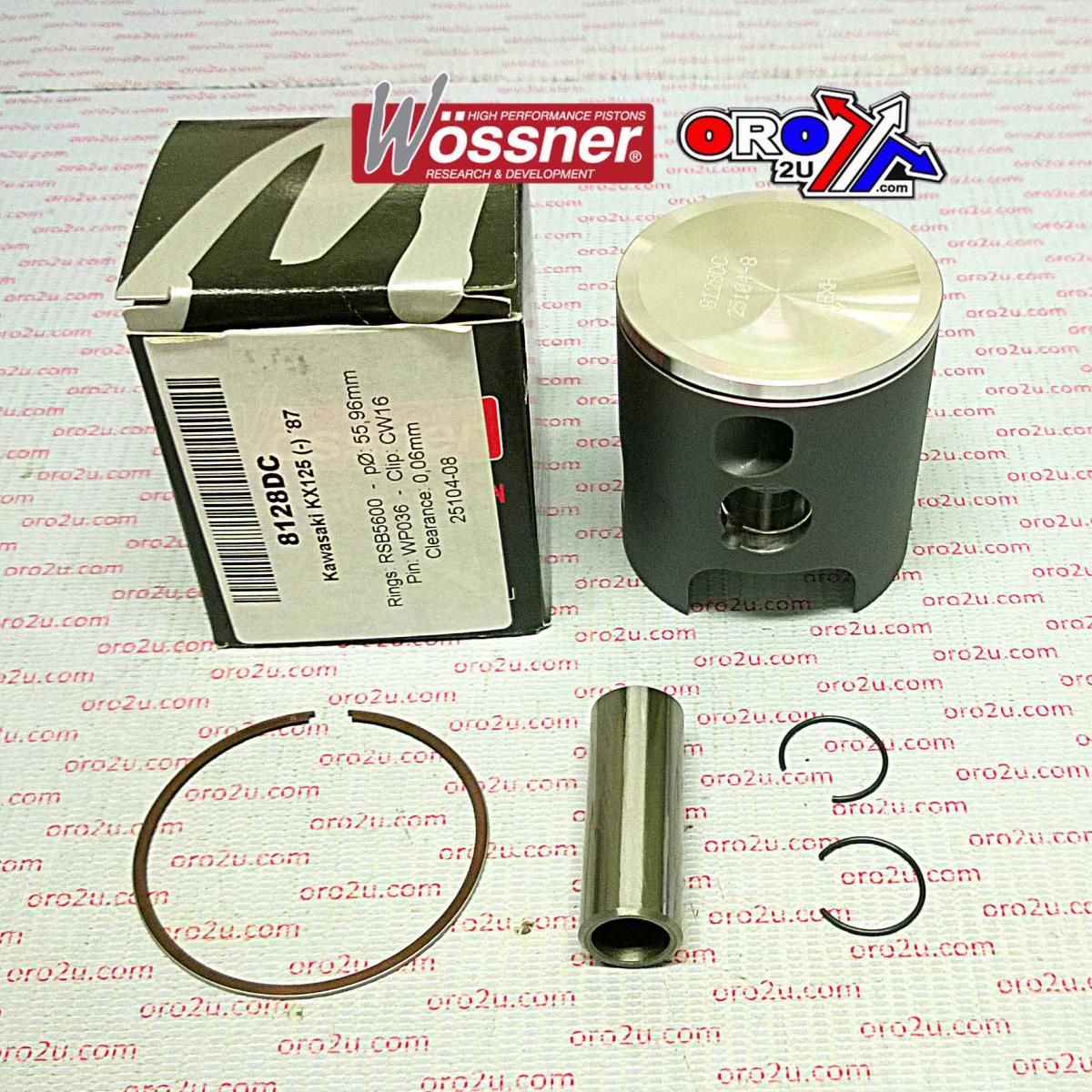

PISTON KIT 1987 KX125 58.00, WOSSNER 8128D200 KAWASAKI MX

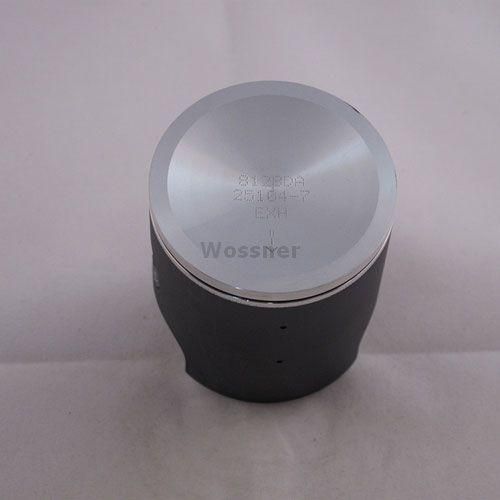

This Wossner 58.00mm (+2.00 oversize) forged piston kit is specifically designed for the Kawasaki KX125 1987 model. Built for performance and reliability, it features a forged construction and elliptical design that improves thermal expansion behaviour and distributes mechanical loads more evenly. Manufactured in Germany, the piston aids in efficient heat dissipation from the combustion chamber to the cylinder walls.
Features
-
Forged piston for enhanced strength and durability
-

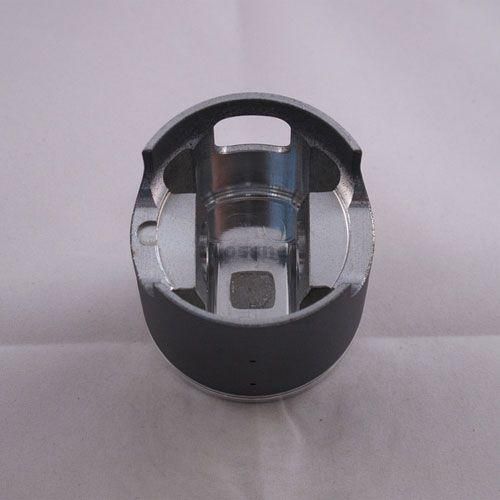

Elliptical design promotes even bearing surface during heat expansion
-
Distributes thrust loads to minimise localised stress and prevent piston collapse
-
Engineered for efficient heat transfer from combustion chamber to cylinder walls
-
Manufactured in Germany
Specifications
-
Bore: 58.00mm
-
Actual diameter: 57.94mm
-
Displacement: 125 cm³
-
Stroke: 50.60mm
-
Clearance: 0.06mm
-
Compression height: 29.50mm
-
Compression ratio: 2-stroke
Cross-Reference OEM Part Numbers
-
Piston Kit Part No.: 56-W555+200.WO
-
Lock: CW16
-
Pin: WP036
-
Ring Set: RSB5800
-
Connecting Rod: P2037
Vehicle Fitments
-
Kawasaki KX125 1987
