| Size | 56.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 56.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

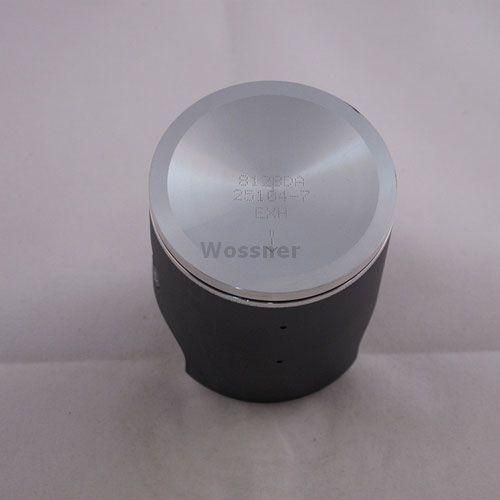

PISTON KIT 1987 KX125 56.50, WOSSNER 8128D050 KAWASAKI MX
This Wossner 56.50mm (+0.50 oversize) forged piston kit is designed for the Kawasaki KX125 1987 model. It features advanced German engineering to optimise combustion heat transfer and enhance structural integrity under high-stress conditions. The elliptically designed piston improves load distribution, reducing the risk of localised stress and piston collapse. Suitable for two-stroke applications, this kit includes matching components for precise installation and performance.
Features
-
Forged piston construction for enhanced strength
-
Elliptical design ensures uniform bearing surface under heat expansion
-
Optimized for even thrust load distribution
-
Designed to transfer combustion heat effectively to cylinder walls
-
Manufactured in Germany
Specifications
-
Bore: 56.50mm
-
Actual diameter: 56.44mm
-
Displacement: 125 cm³
-
Stroke: 50.60mm
-
Clearance: 0.06mm
-
Compression height: 29.50mm
-
Compression ratio: 2-stroke
Cross-Reference OEM Part Numbers
-
Piston Kit Part No.: 56-W555+050.WO
-
Lock: CW16
-
Pin: WP036
-
Ring Set: RSB5650
-
Connecting Rod: P2037
Vehicle Fitments
-
Kawasaki KX125 1987
