| Size | 54mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 54.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

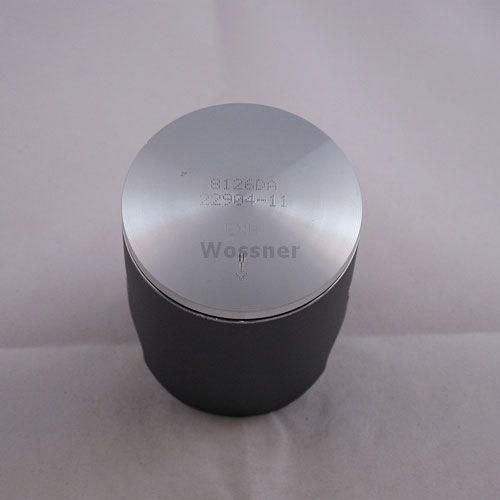

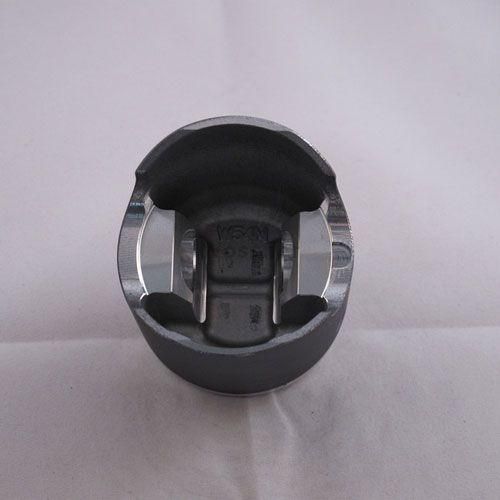

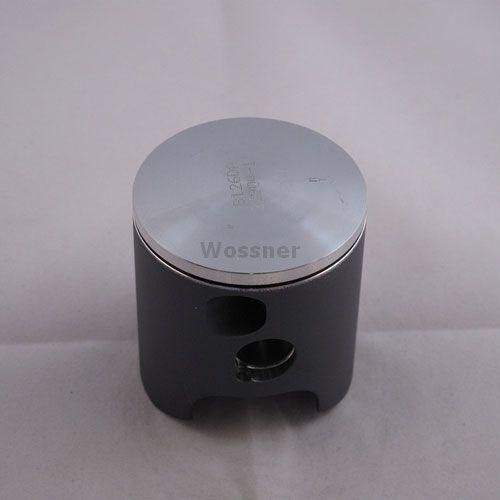

PISTON KIT 1987 CR125 54.00, WOSSNER 8126DA HONDA MX
This Wossner piston kit features a 54.00mm bore size (53.94mm actual) and is designed for the 1987 Honda CR125. Manufactured in Germany, the forged piston is engineered for strength and efficient heat transfer. Its elliptical design ensures even distribution of thrust loads during thermal expansion, reducing localised pressure and the risk of piston failure.
Features
-
Forged construction for enhanced strength
-
Elliptical profile promotes uniform load distribution under heat
-
Optimised for effective heat transfer from combustion chamber to cylinder walls
-
Manufactured in Germany
Specifications
-
Bore Size: 54.00mm (53.94mm)
-
Display: 124 cm³
-
Stroke: 54.00 mm
-
Clearance: 0.06 mm
-
Compression Height: 28.00 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference OEM Part Numbers
-

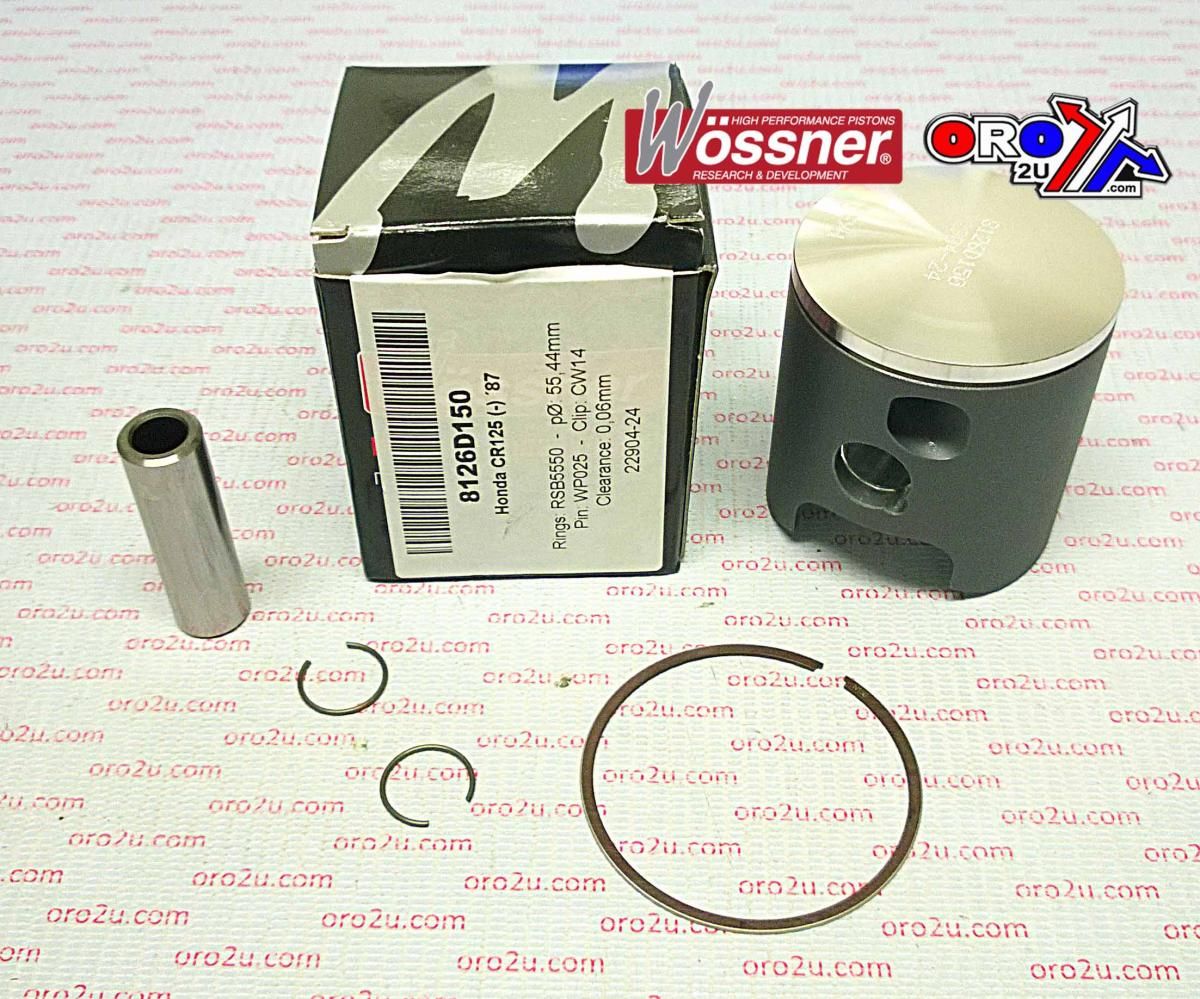

Piston Kit: 8126DA
-
Lock: CW14
-
Pin: WP025
-
Ring Set: RSB5400
-
Part No.: 56-W553+0.WO
-
13101-KS6-701
-
09104839
-
553M05400
Vehicle Fitments
-
Honda CR125 1987
