| Size | 49.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 49.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

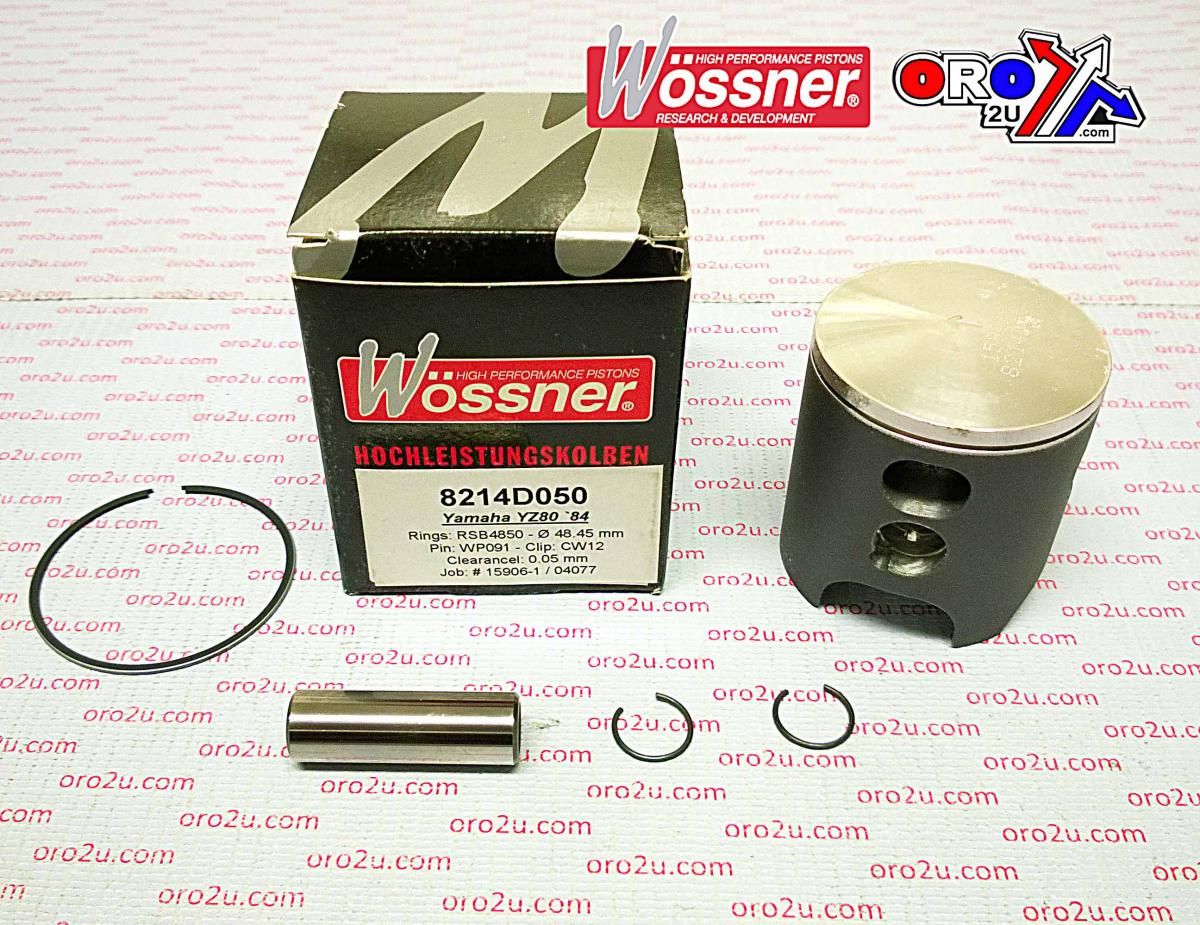

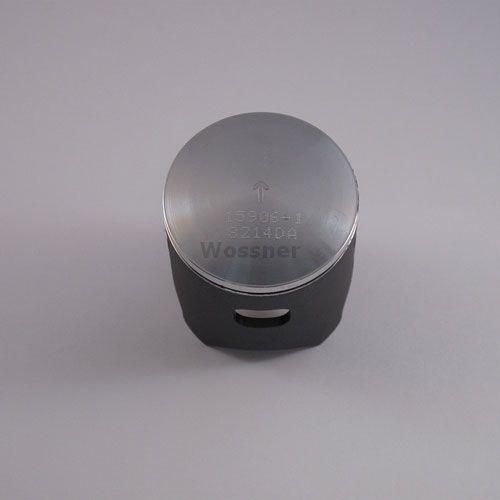

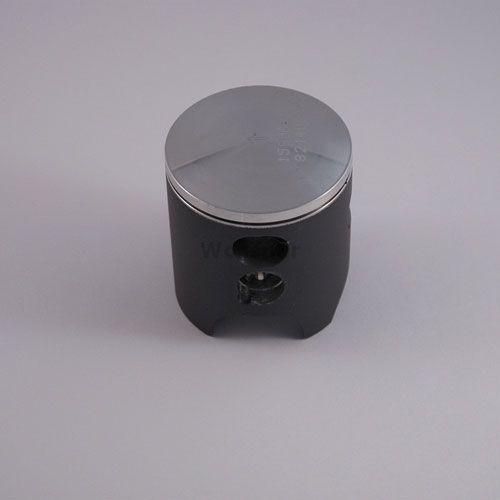

PISTON KIT 1984 YZ80 49.50, WOSSNER 8214D150 YAMAHA
This Wossner forged piston kit with a 49.50mm bore (48.95mm) is designed for the 1984 Yamaha YZ80. Precision-manufactured in Germany, the piston enhances engine performance through superior heat transfer and an elliptical design that supports even load distribution under thermal stress, helping to prevent piston collapse.
Features
-
Forged piston design for high structural integrity
-
Engineered for efficient combustion heat transfer to cylinder walls
-
Elliptical profile reduces localized pressure and ensures uniform expansion
-
Made in Germany
Specifications
-
Bore size: 49.50mm (48.95mm)
-
Display volume: 82 cm³
-
Stroke: 84.00 mm
-
Clearance: 0.06 mm
-
Compression height: 30.80 mm
-
Theoretical weight: Not specified
-
Compression ratio: 2-stroke (Wossner and OEM)
Cross-Reference OEM Part Numbers
-
Piston: 8214D150
-
Lock: CW12
-
Pin: WP091
-
Ring Set: RSB4950
Vehicle Fitments
-
Yamaha YZ80 1984
