| Size | 96.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 96.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

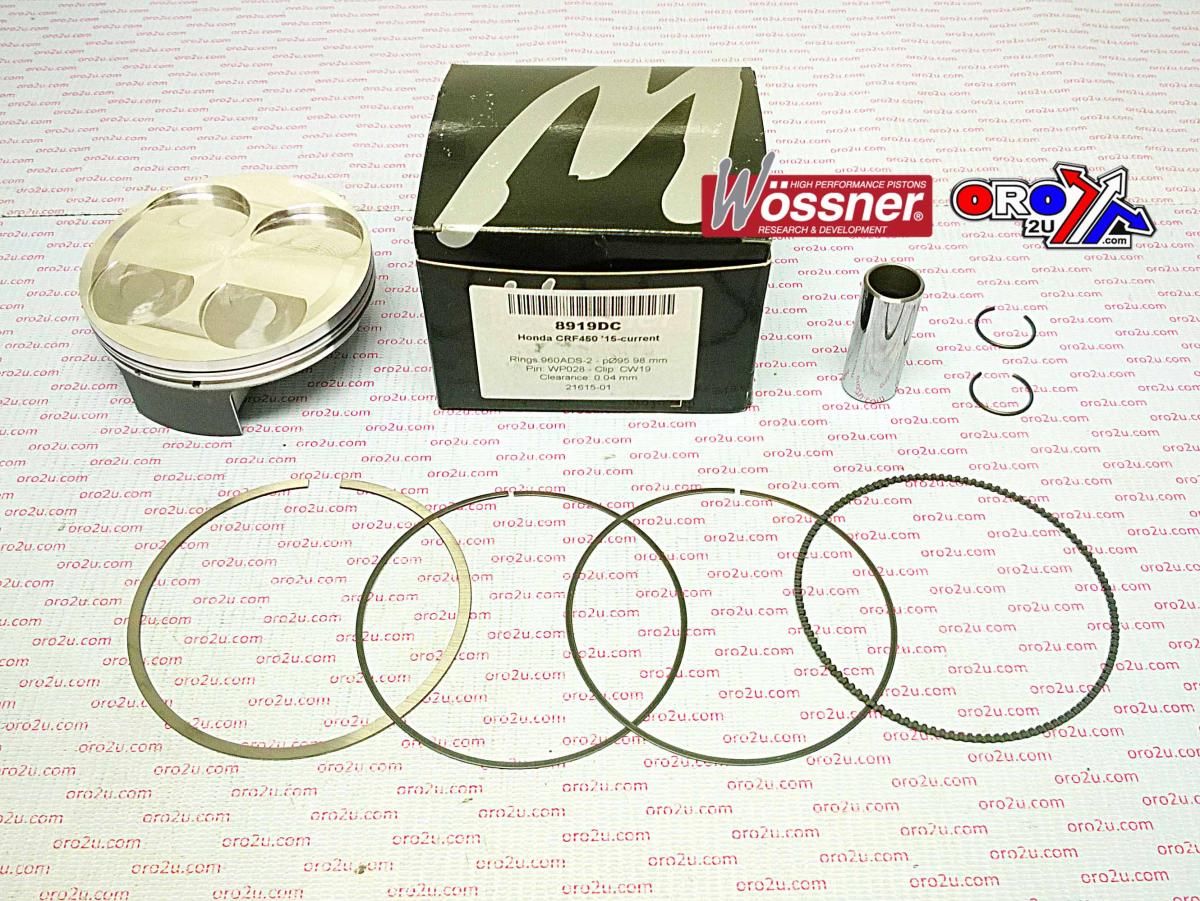

PISTON KIT 15-16 CRF450R 96mm, WOSSNER 8919DC
This Wossner forged piston kit is a +0.02mm oversize replacement specifically designed for Honda CRF450R models from 2015 onward. With a robust forged build and precise engineering, it supports high-performance applications while maintaining OEM compression characteristics.
Features
-
Forged construction for high strength and performance under extreme conditions
-
Elliptical design ensures a uniform bearing surface under thermal expansion
-
Promotes efficient heat transfer from combustion chamber to cylinder walls
-
Even distribution of thrust loads minimises the risk of piston collapse
-
Manufactured in Germany
Specifications
-
Bore Size: 96.02mm
-
Actual Piston Size: 95.98mm
-
Display Displacement: 449 cm³
-
Stroke: 62.10mm
-
Piston Clearance: 0.04mm
-
Wossner Compression Ratio: OEM
-
OEM Compression Ratio: 12.50:1
-
Dome Volume: -2.24 cm³
-
Compression Height: 20.60mm
-
Theoretical Weight: 241.00g
-
Circlip Part Number: CW19
-
Pin Part Number: WP028
-
Ring Set Part Number: 960ADS-2
Cross-Reference OEM Part Numbers
-
Part No: 56-W927.C.WO
Vehicle Fitments
-
Honda CRF450R (2015– )
