PISTON KIT 14-20 KX100 ELITE, WISECO RE907M05250 KAWASAKI, Racers Elite ArmorFit

Wiseco Racers Elite Piston Assembly RE907M05250 is a high-performance forged piston designed for Kawasaki KX100 (1995–2020) and Suzuki RM100 (2003–2005) models with a 52.50mm bore. Built with innovative forging technology, this piston is equipped with Wiseco’s ArmorFit skirt coating for enhanced durability and improved power output. Designed for racers, the assembly includes all necessary components for installation and is intended for use in sleeved or replated cylinders when fitting oversizes.

Features

• ArmorFit skirt coating for increased durability and horsepower

• Innovative forging and skirt design for maximum torque and engine performance

• Lightweight wrist pins promote quicker throttle response and faster revving

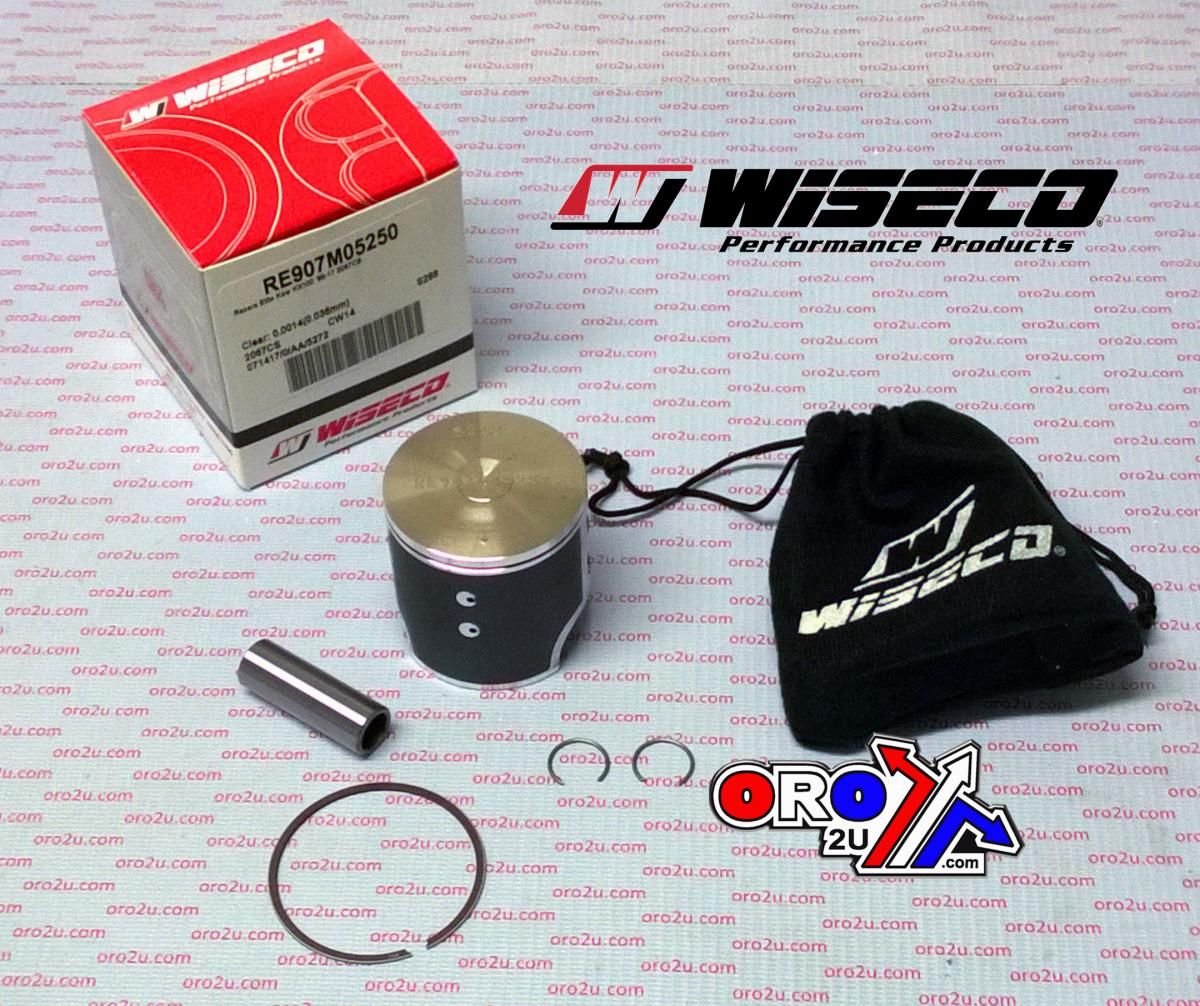

• Includes piston, rings, wrist pin, and circlips

• Designed for performance applications; cylinder sleeving or replating required for oversizes

Specifications

• Bore: 52.50 mm

• Piston Assembly: Complete with rings, wrist pin, and circlips

• Skirt Coating: ArmorFit

• Application Type: Performance/Racing

• Cylinder Note: Ceramic composite; sleeving or replating required for oversize use

Cross-Reference OEM Part Numbers

• Internal Part No: 56-W651.WI.1E

• PISTON-ENGINE: 13001-0759

• RING-PISTON TOP: 13003-1274

• PIN-PISTON: 13002-1018

• RING-SNAP: 92033-0005

Vehicle Fitments

• 1995–2020 Kawasaki KX100

• 2009 Kawasaki KX100 Monster Energy

• 2003–2005 Suzuki RM100
