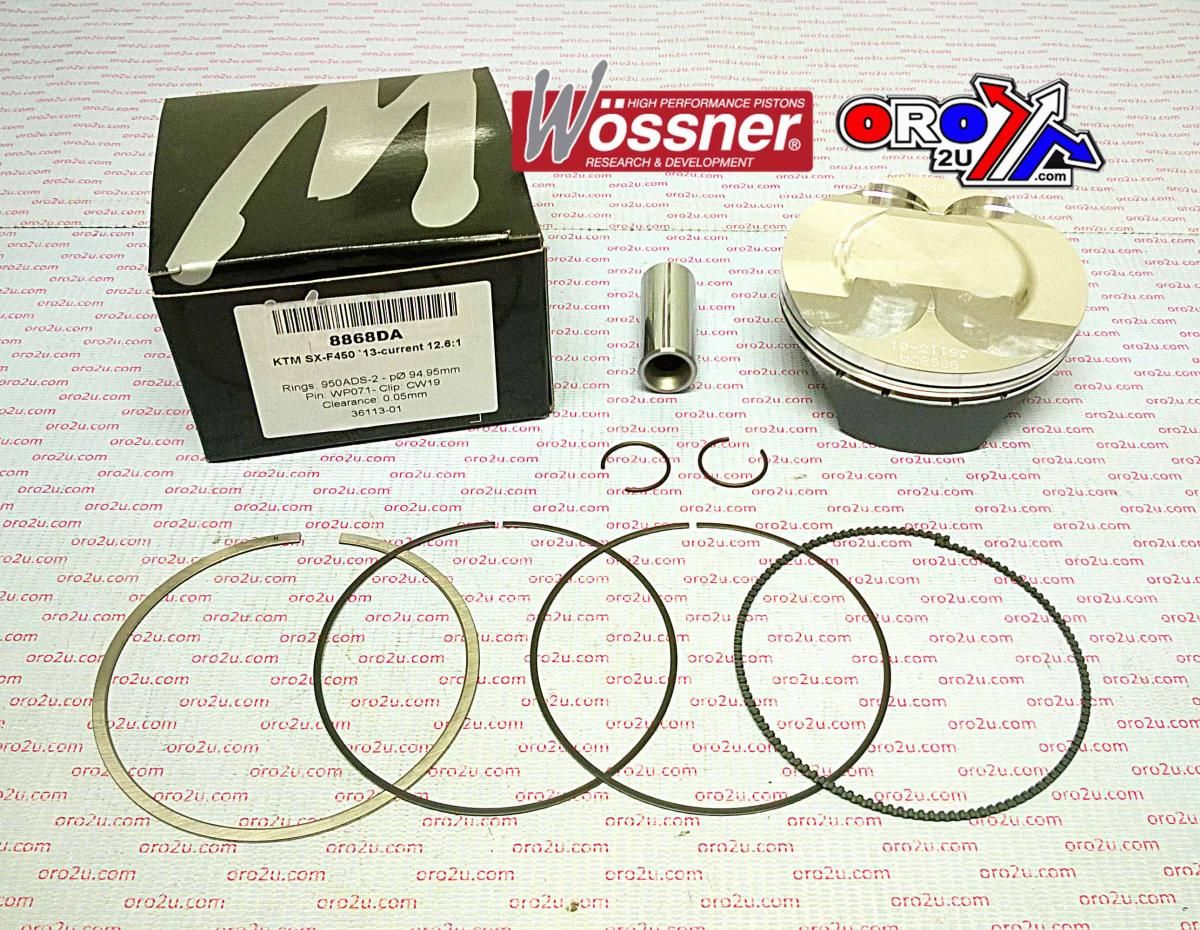

PISTON KIT 13-18 SXF450 95mm, WOSSNER 8868DA KTM 78930007300

This Wossner forged piston kit features a 95mm bore size (94.95mm actual) and is a standard fitment for KTM SX-F450 models from 2013 to 2018, as well as multiple Husqvarna 450 models. Manufactured in Germany, the piston includes a two-ring configuration and an elliptical design to promote even load distribution and superior heat transfer. It is engineered for durability and consistent performance under demanding conditions.

Features

• Forged piston with two-ring design for enhanced strength and reliability

• Elliptical shape distributes thrust loads evenly under heat expansion

• Optimised for efficient combustion heat transfer to cylinder walls

• Manufactured in Germany

Specifications

• Bore Size: 95mm (actual 94.95mm)

• Displacement: 449 cm³

• Stroke: 60.80 mm

• Clearance: 0.05 mm

• Compression Ratio (Wossner): OEM

• Compression Ratio (OEM): 12.60:1

• Dome Volume: +1.00 cm³

• Compression Height: 22.80 mm

• Lock Part Number: CW19

• Pin Part Number: WP071

• Ring Set Part Number: 950ADS-2

Cross-Reference OEM Part Numbers

• 78930007300

• 40073M09500

Vehicle Fitments

• KTM SX-F450 (2013–2018)

• Husqvarna FC450 (2014–2015)

• Husqvarna FC450 (2016–2020)

• Husqvarna FX450 (2017–2020)

• Husqvarna FS450 (2015)

• Husqvarna FS450 (2016–2020)
