| Size | 78.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 78.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

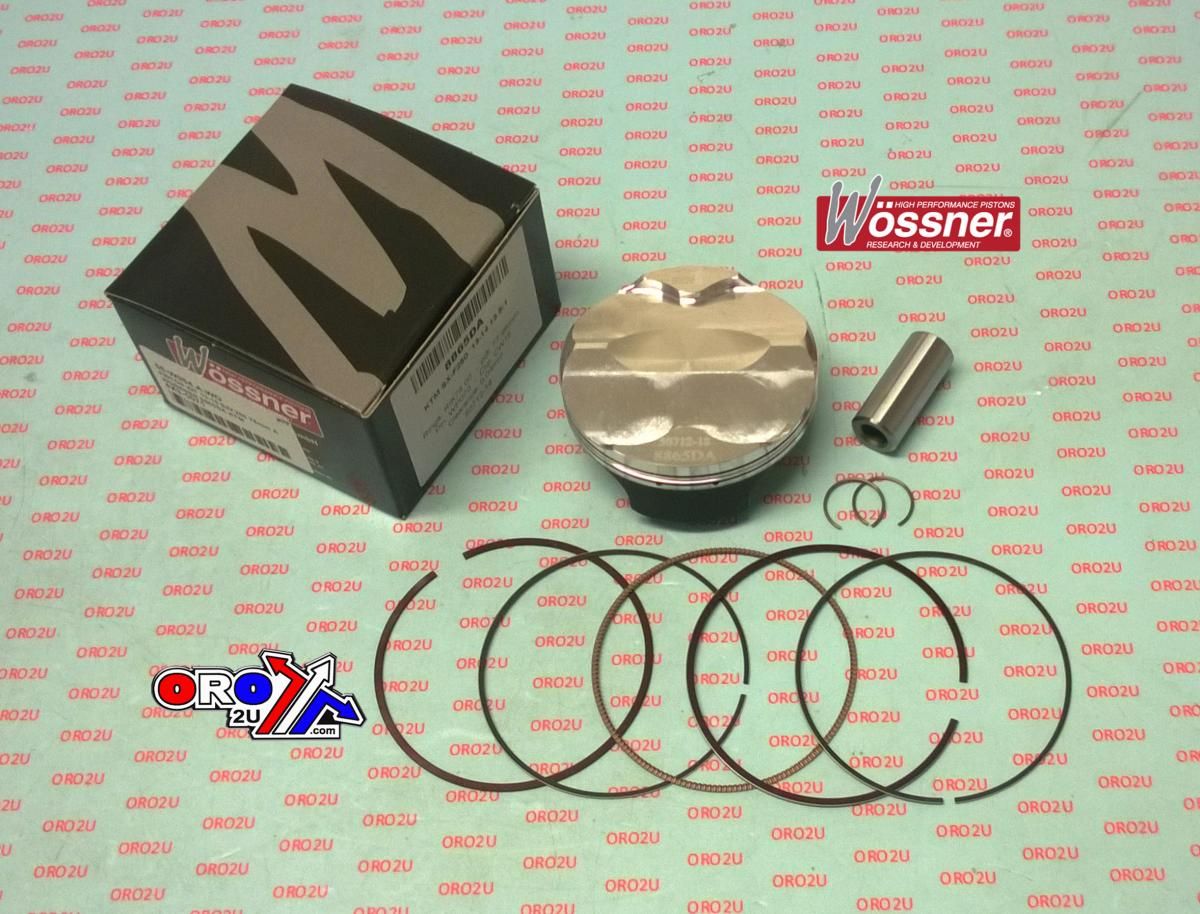

PISTON KIT 13-15 SXF250 78mm B, WOSSNER 8865DB KIT
Piston kit 78.01mm BORE 77.97 WOSSNER 8865DB (+0.01mm)
KTM
SX-F250 2013-15
EXC-F 250 2014 – 2021
HUSQVARNA
FE250 2014 – 2015
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany.
Part No. 56-W954.B.WO (oro2u.com) Wossner Piston KTM SXF250 78 mm Bore (PN# 8865DB)
Display (cm3) 249
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 13.90:1
Dome volume (cm3) -2.10
Compression height (mm) 19.50
Theorectical weight (G)
