PISTON KIT 125 MITO 93-8 56mm, CAGIVA 8053DA WOSSNER

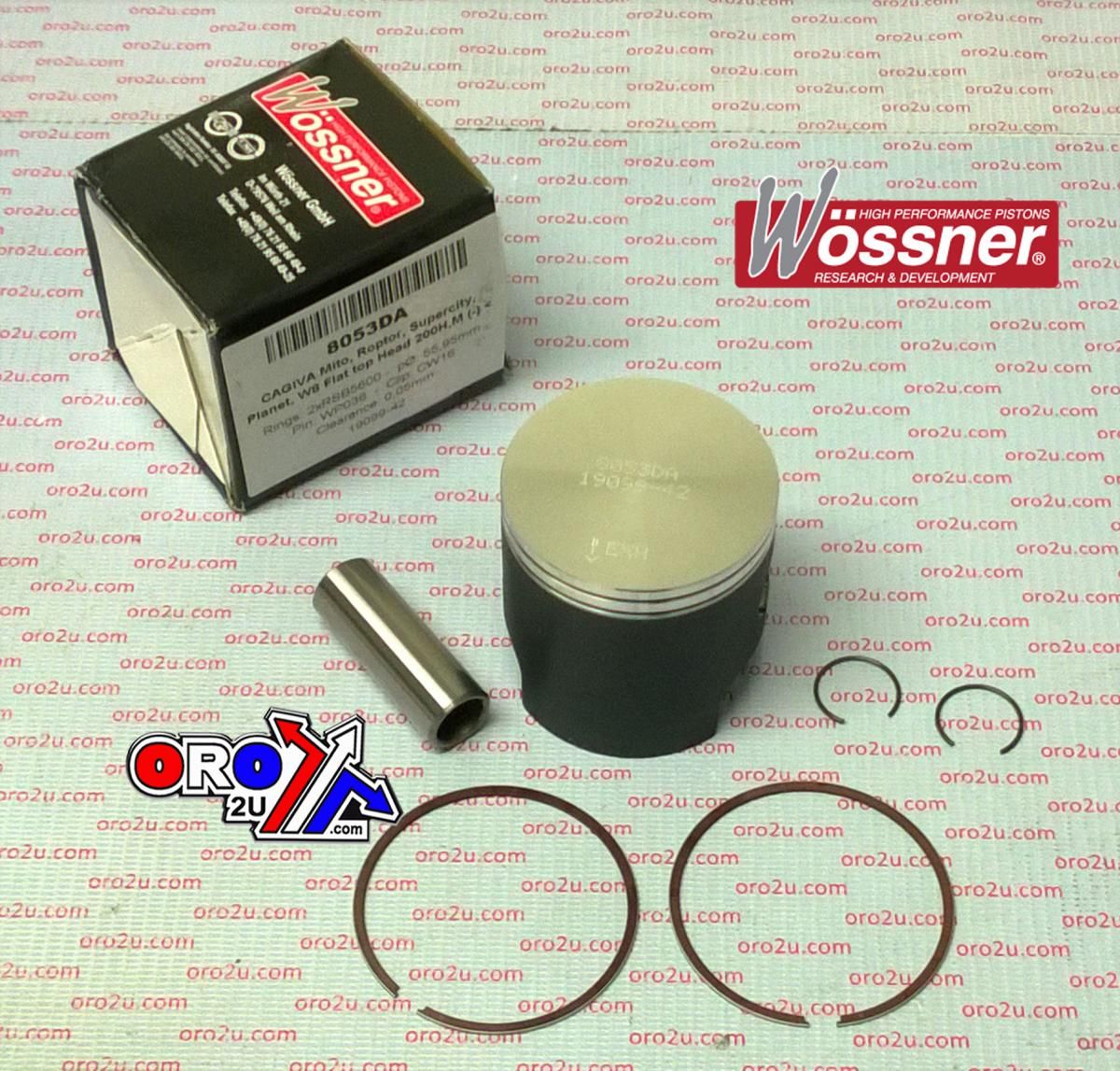

This Wossner forged piston kit is a standard-size replacement designed for Cagiva 125cc two-stroke models, including Mito, Raptor, Supercity, Planet, W8, and Head 200H,M from 2000 to 2012. Built to deliver durability and performance, it is ideal for high-revving small-capacity engines.

Features

• Forged piston construction ensures high strength and reliability

• Elliptical design provides a consistent bearing surface during heat expansion

• Promotes efficient heat transfer from combustion chamber to cylinder walls

• Even distribution of thrust loads minimises piston collapse risk

• Manufactured in Germany

Specifications

• Bore Size: 56.00mm

• Display Displacement: 124 cm³

• Stroke: 50.60mm

• Piston Clearance: 0.05mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Dome Volume: Flat

• Compression Height: 25.00mm

• Lock Part Number: CW16

• Pin Part Number: WP036

• Ring Set Part Number: RDB5600

Cross-Reference OEM Part Numbers

• Part No: 56-W940+00A.WO

Vehicle Fitments

• Cagiva 125 Mito (2000–2012)

• Cagiva 125 Raptor (2000–2012)

• Cagiva 125 Supercity (2000–2012)

• Cagiva 125 Planet (2000–2012)

• Cagiva 125 W8 (2000–2012)

• Cagiva Head 200H,M (2000–2012)
