| Size | 66.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 66.00 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

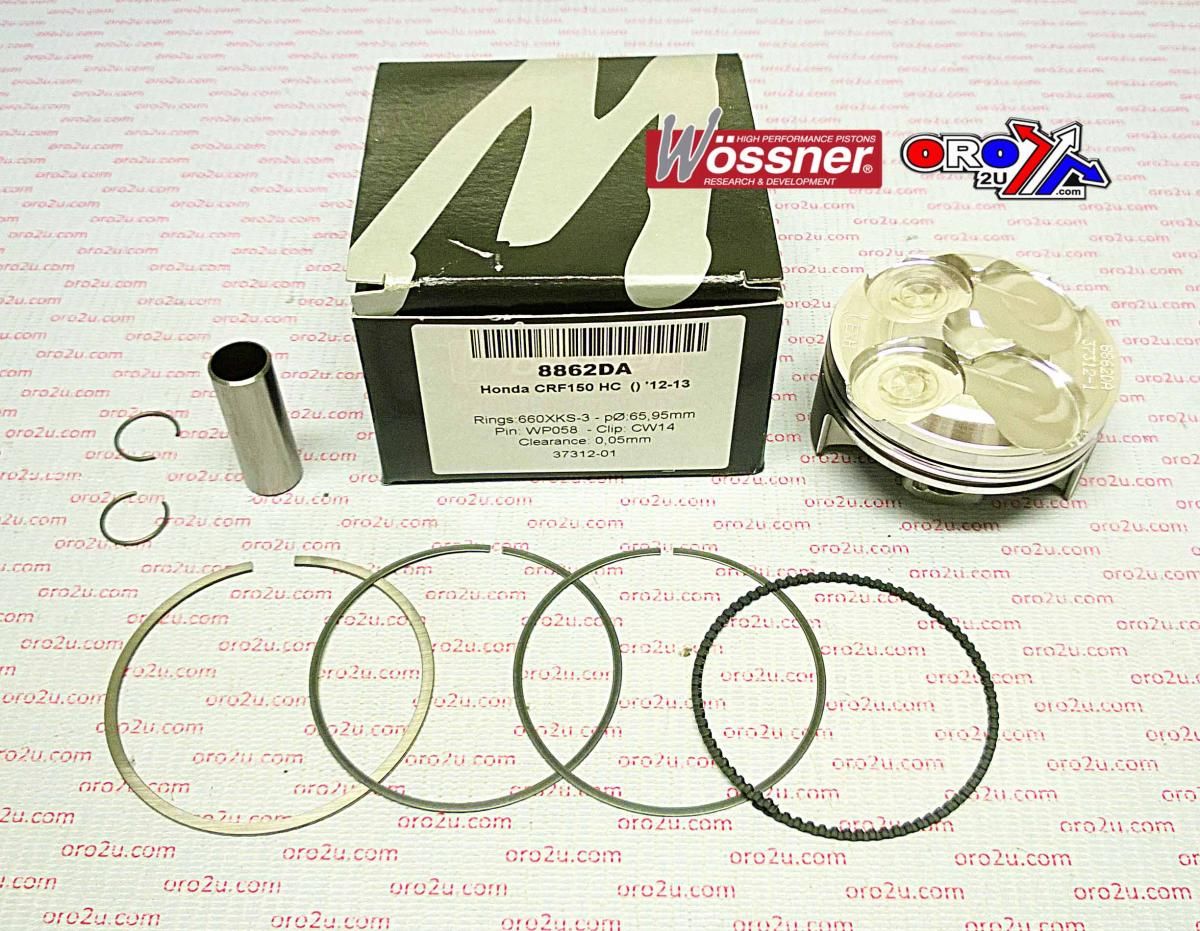

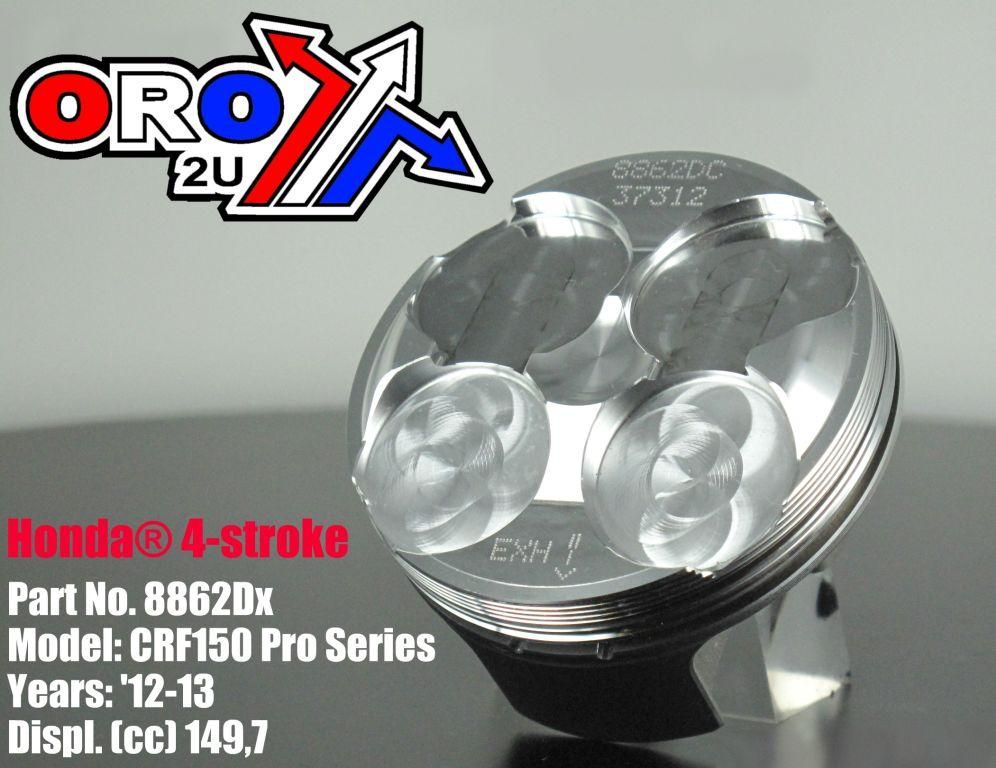

PISTON KIT 12-18 CRF150R 66.00, WOSSNER 8862DC HC
This Wossner forged piston kit is engineered for high-performance applications and fits Honda CRF150R Pro Series models from 2012 to 2018. With a precise 66.02mm bore size and a high-strength forged construction, this piston is designed for durability and efficient heat transfer under demanding conditions.
Features
-
Forged piston construction for enhanced strength and durability
-
Elliptical design ensures uniform bearing surface under heat expansion
-
Optimised for superior heat dissipation from combustion chamber to cylinder walls
-
Designed to prevent localised pressure and piston collapse
-
Manufactured in Germany
Specifications
-
Bore Size: 66.02mm
-
Actual Piston Size: 65.97mm
-
Display Displacement: 149 cm³
-
Stroke: 43.80mm
-
Piston Clearance: 0.05mm
-
Wossner Compression Ratio: 12.20:1
-
OEM Compression Ratio: 111.70:1
-
Dome Volume: -0.80 cm³
-
Compression Height: 20.60mm
-
Lock Part Number: CW14
-
Pin Part Number: WP058
-
Ring Set Part Number: 660XKS
Cross-Reference OEM Part Numbers
-
Part No: 56-W921.C.WO
Vehicle Fitments
-
Honda CRF150R (2012–2018), Pro Series
