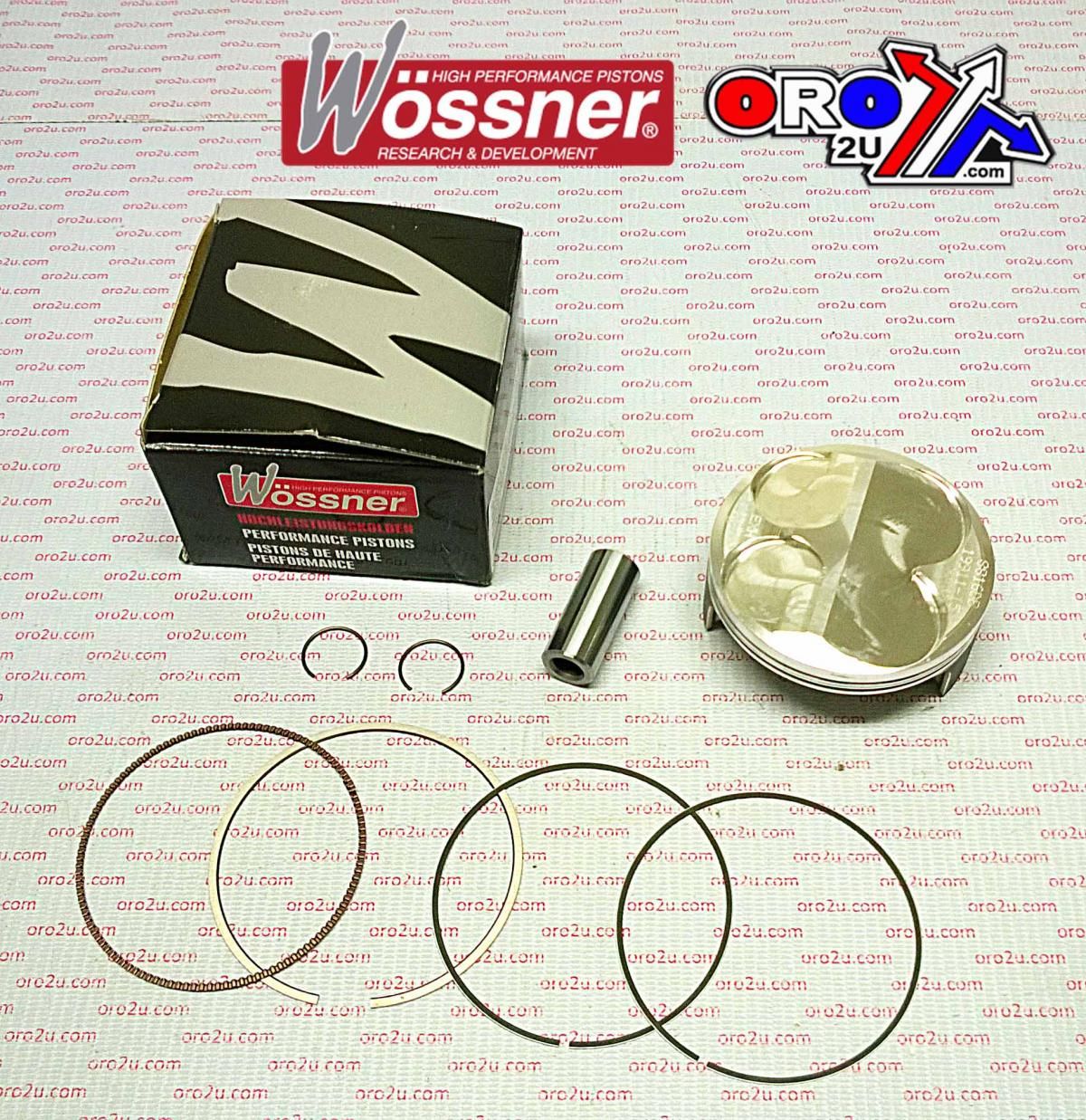

PISTON KIT 11-14 KX250F 77mm A, WOSSNER 8816DA KAWASAKI HC 13001-0125

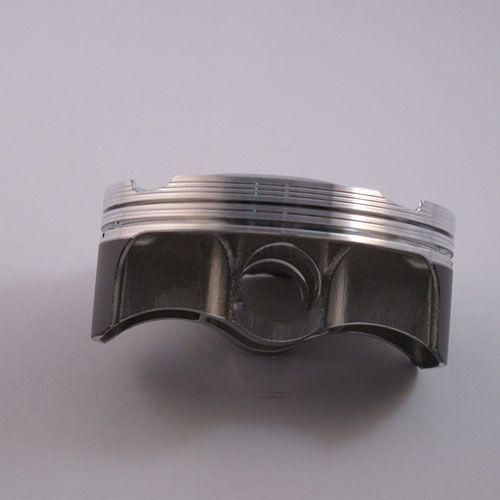

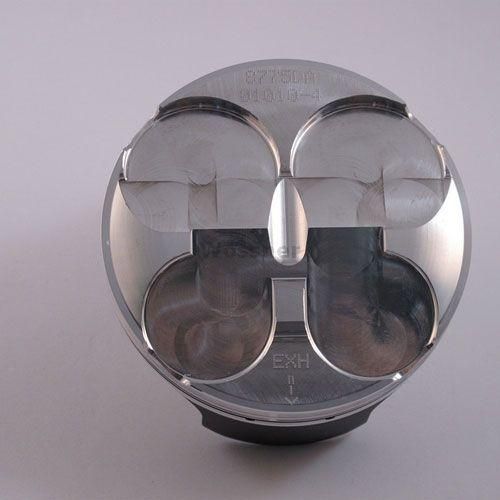

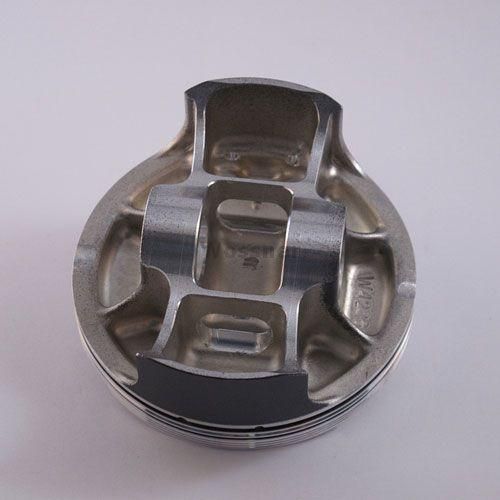

This Wossner forged high-compression piston kit features a 77mm bore size (76.96mm actual) and is designed for Kawasaki KX250F models from 2011 to 2014. The piston includes a hard Teflon skirt coating for improved fit and bore conformity. Manufactured in Germany with a two-ring configuration, it enhances combustion efficiency and strength under pressure. The elliptical design ensures even load distribution during thermal expansion.

Features

• Forged high-compression piston with two-ring setup

• Elliptical profile for balanced thrust load distribution

• Engineered for optimal heat transfer to cylinder walls

• Hard Teflon skirt coating for superior fit and bore adaptability

• Manufactured in Germany

Specifications

• Bore Size: 77mm (actual 76.96mm)

• Displacement: 250 cm³

• Stroke: 53.60 mm

• Clearance: 0.04 mm

• Compression Ratio (Wossner): 14.20:1

• Compression Ratio (OEM): 13.50:1

• Dome Volume: -1.70 cm³

• Compression Height: 19.60 mm

• Lock Part Number: CW16

• Pin Part Number: WP070

• Ring Set Part Number: 770XAS

Cross-Reference OEM Part Numbers

• 13001-0125

• 40020M07700

Vehicle Fitments

• 2011 Kawasaki KX250F

• 2012 Kawasaki KX250F

• 2013 Kawasaki KX250F

• 2014 Kawasaki KX250F
